Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Dash Fuse Box
>>
Fuse 5, 10, 12, 13
Fuse 5, 10, 12, 13

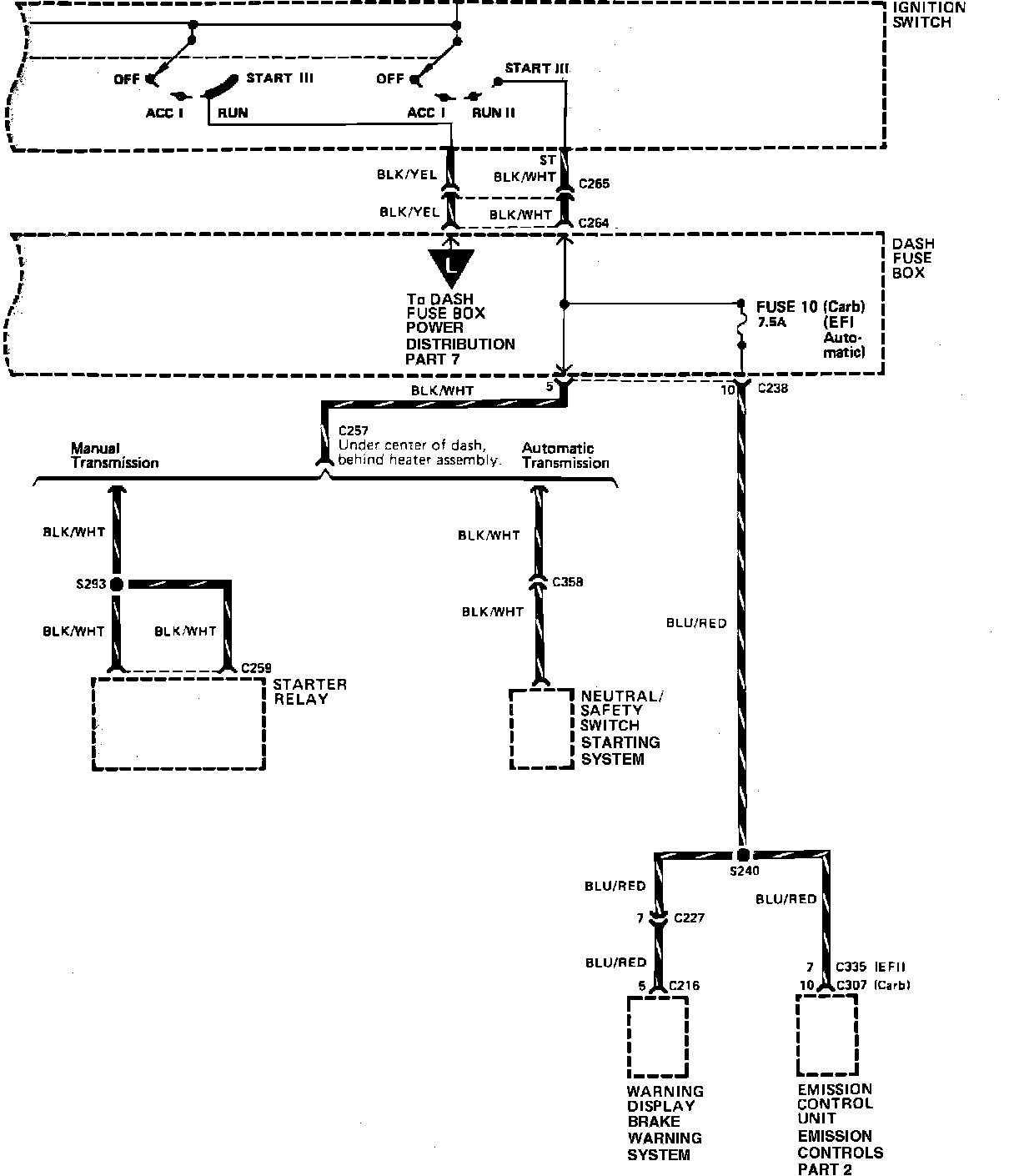

Power Distribution. Wiring Circuit:

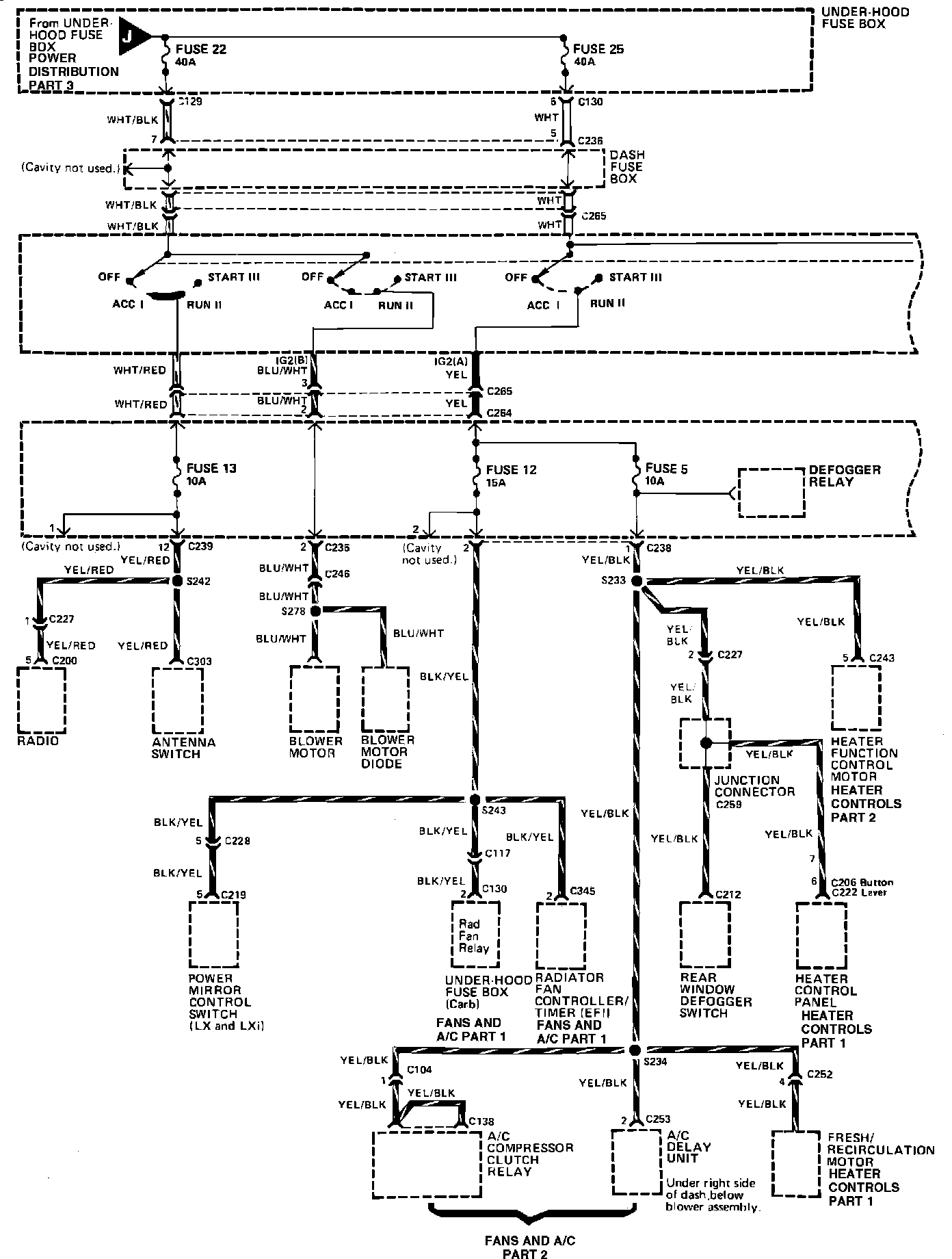

Power Distribution. Wiring Circuit:
