Home
>>
Honda
>>
1989
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G105
G105

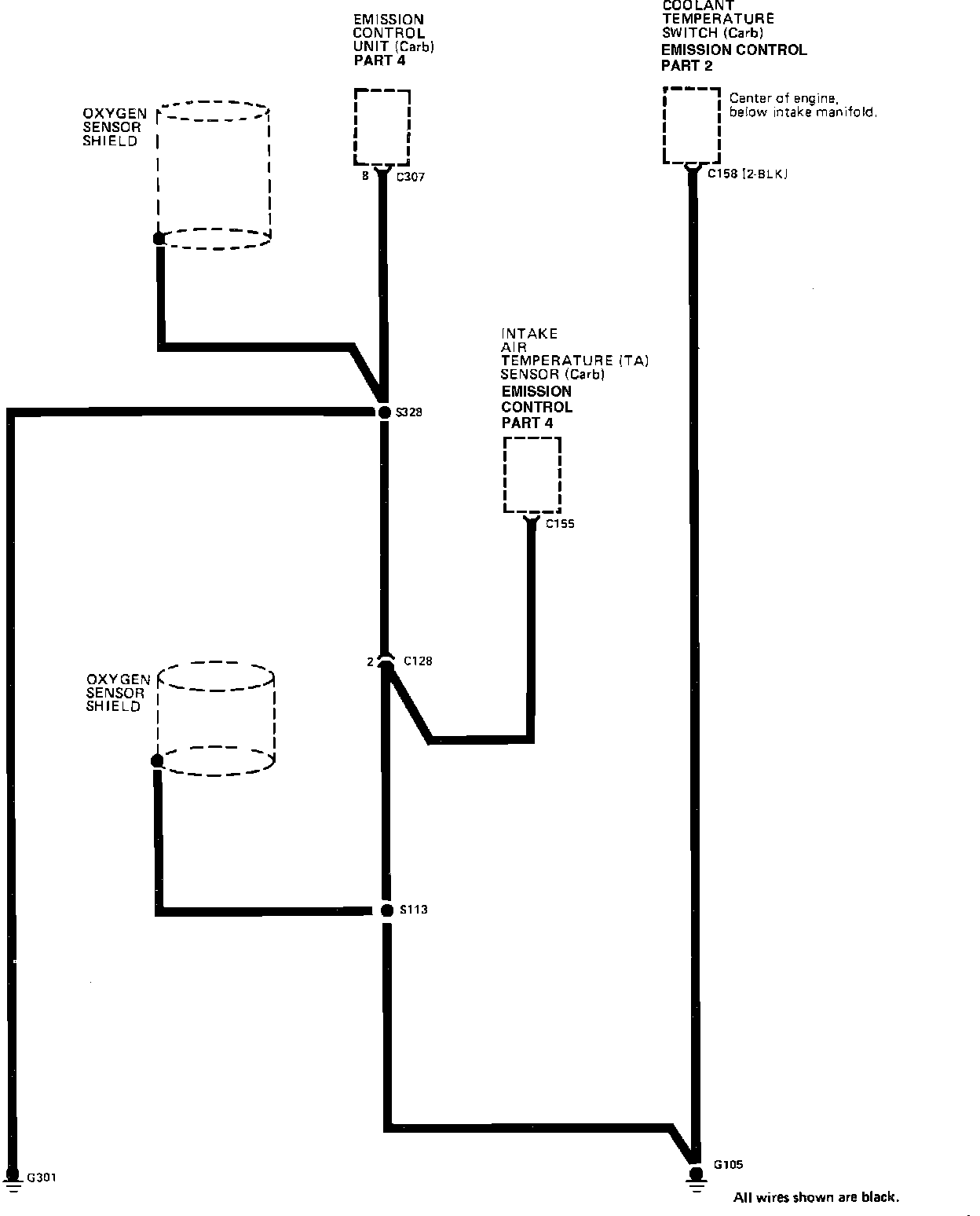

Ground Distribution, G105 & G301. Wiring Circuit:

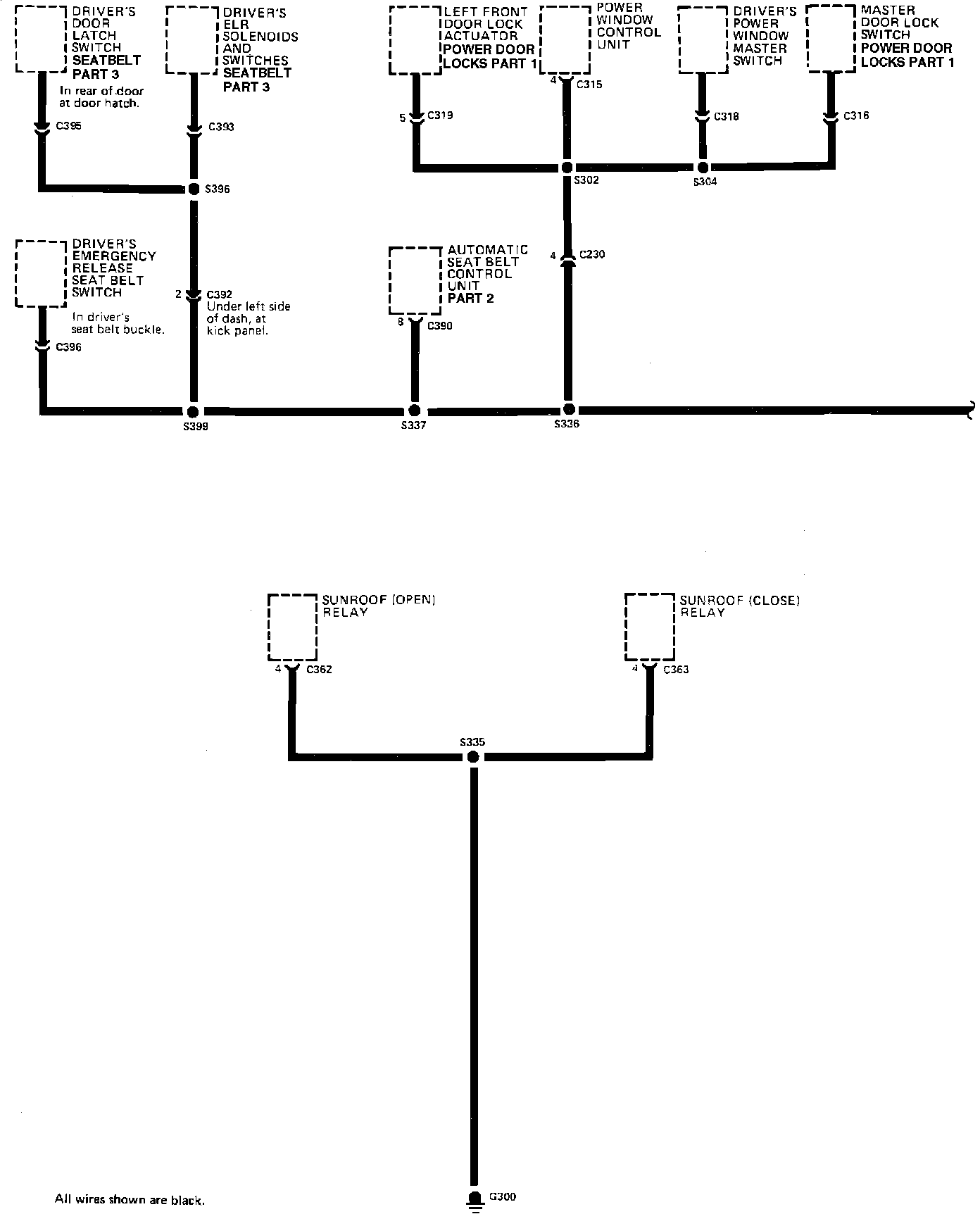

Ground Distribution, G200, G300 & G301. Wiring Circuit:

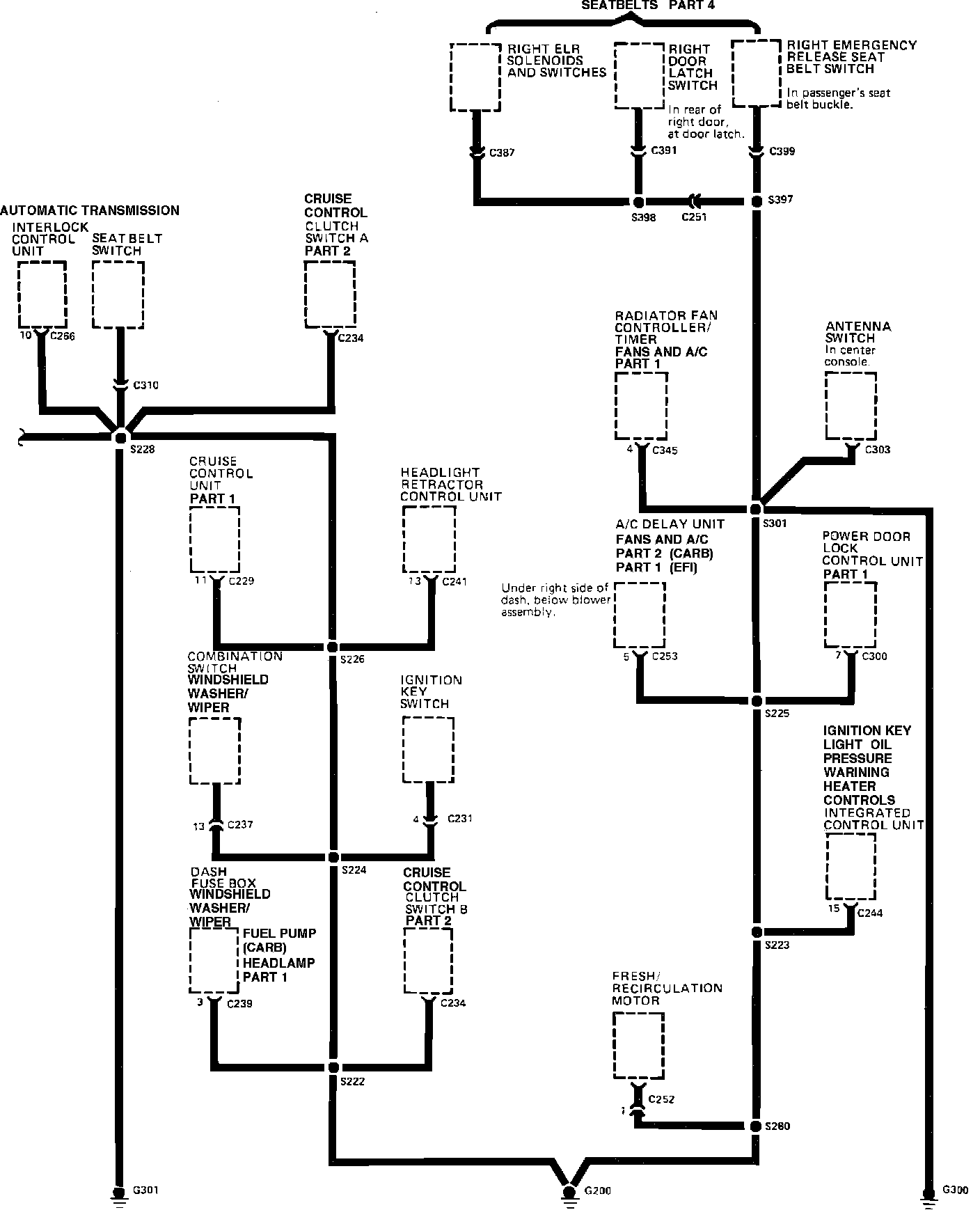

Ground Distribution, G200, G300 & G301. Wiring Circuit:
