Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G100
G100

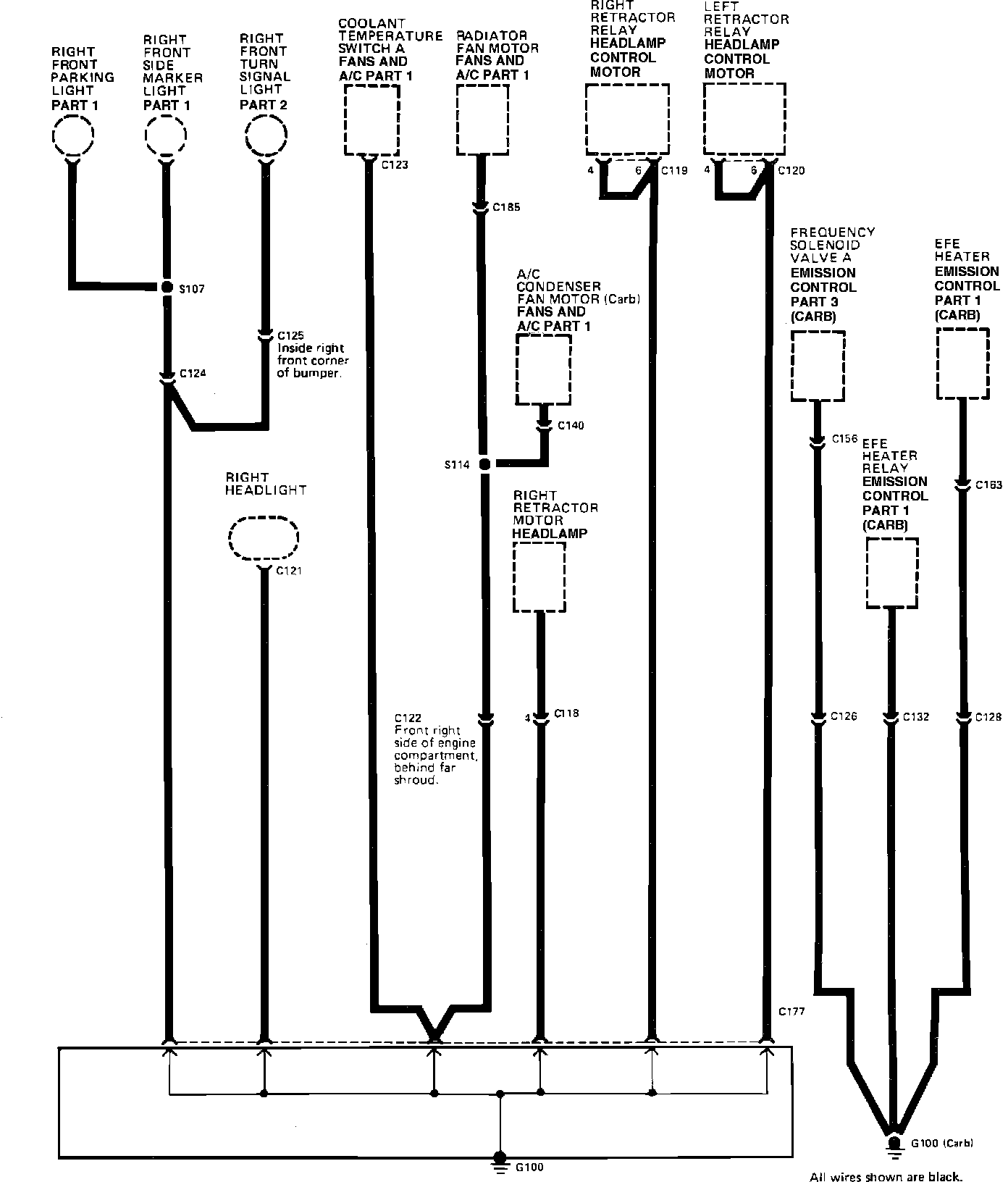

Ground Distribution, G100. Wiring Circuit:
