Rocker Arm Assembly: Service and Repair

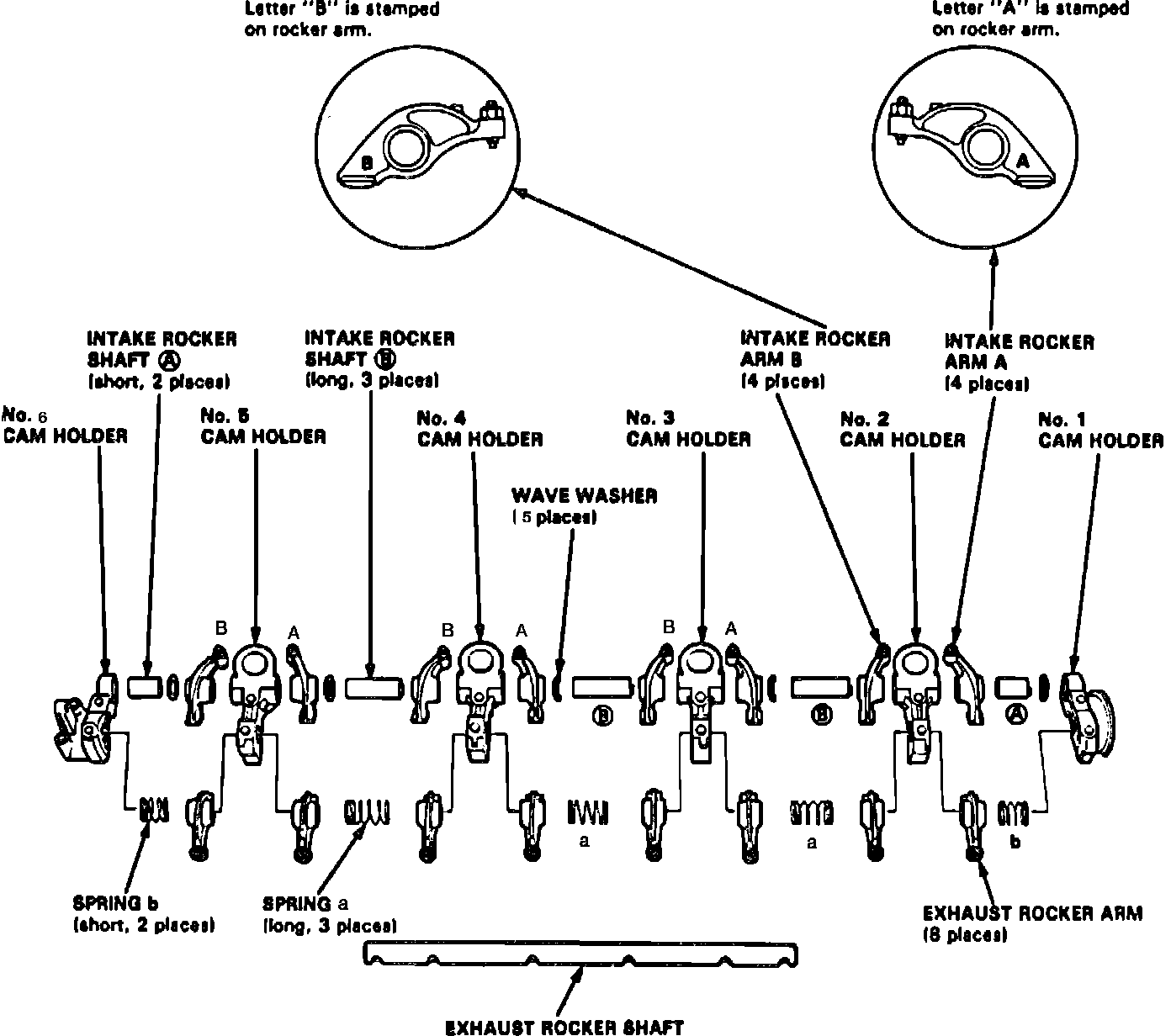

Fig. 16 Exploded View Of Rocker Arm Assembly. 1989 Accord & Prelude W/Carbureted Engine:

Fig. 19 Rocker Arm Assembly Exploded View. 1990-93 Accord:

Disassemble one or all parts of rocker arm assembly as necessary as shown in Figs. 16 and 19. Prior to removal, identify all parts so they can be installed in their original locations.
