Electric Load Sensor: Locations

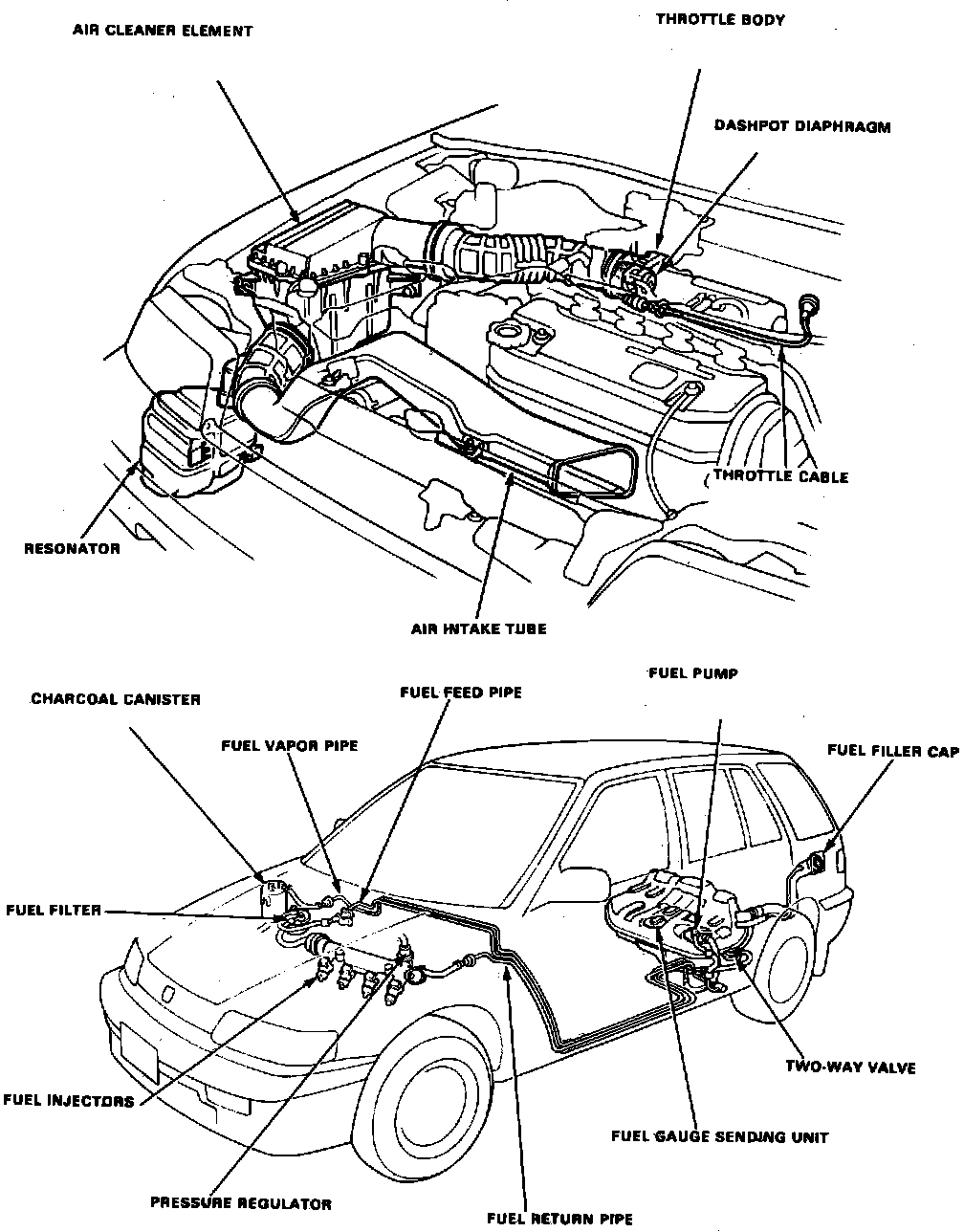

Fuel & Emissions System Components (Part 1 Of 2).:

Fuel & Emissions System Components (Part 1 Of 2).:

At RH Rear Of Engine Compartment, In Main Fuse Box

Applicable to: 1988 Civic w/4-97/1.6L Fuel Injected Engine
