Evaporative Controls System Diagnostic Test Procedure

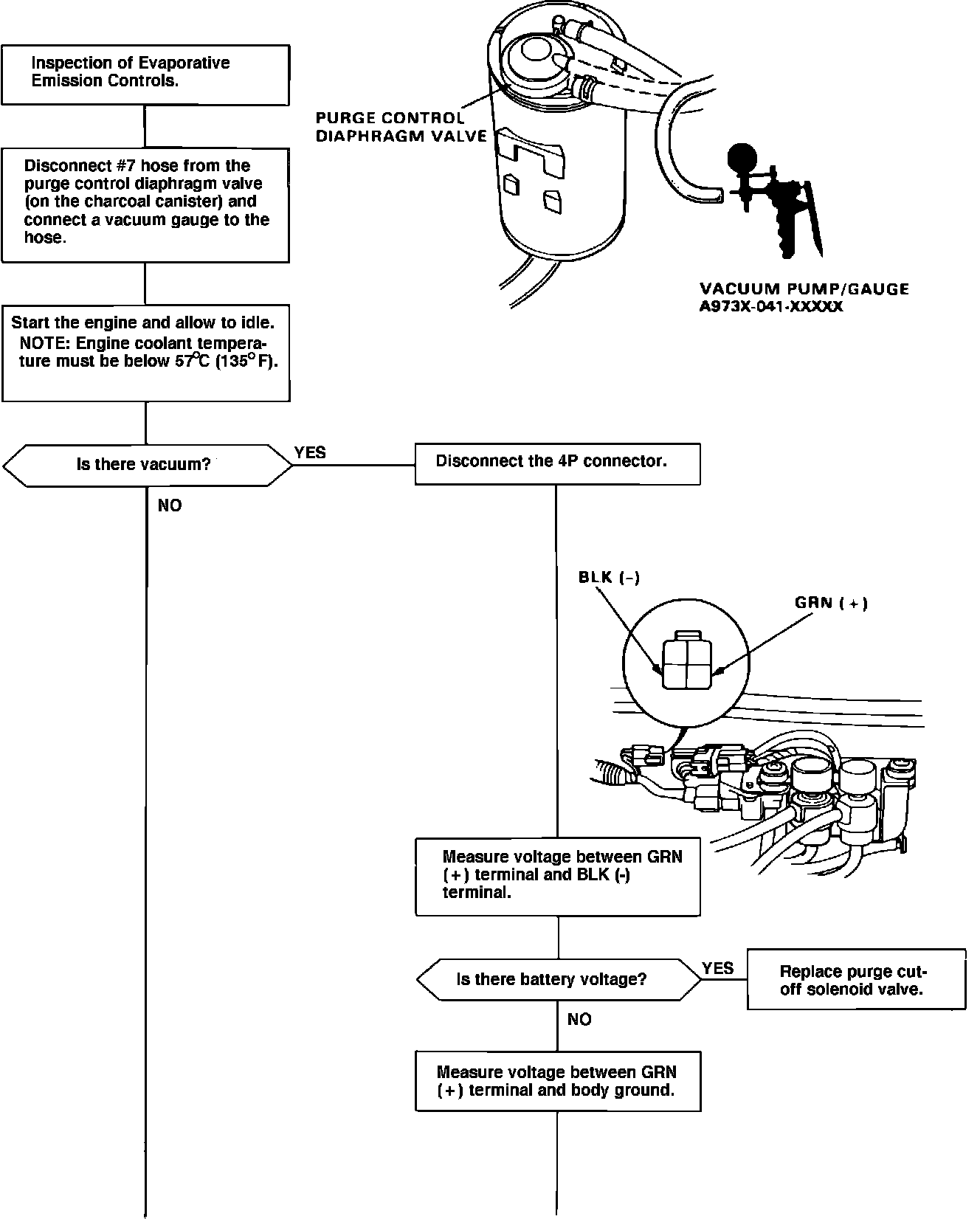

Fig. 30 Evaporative Emissions Controls System Diagnostic Test Procedure.:

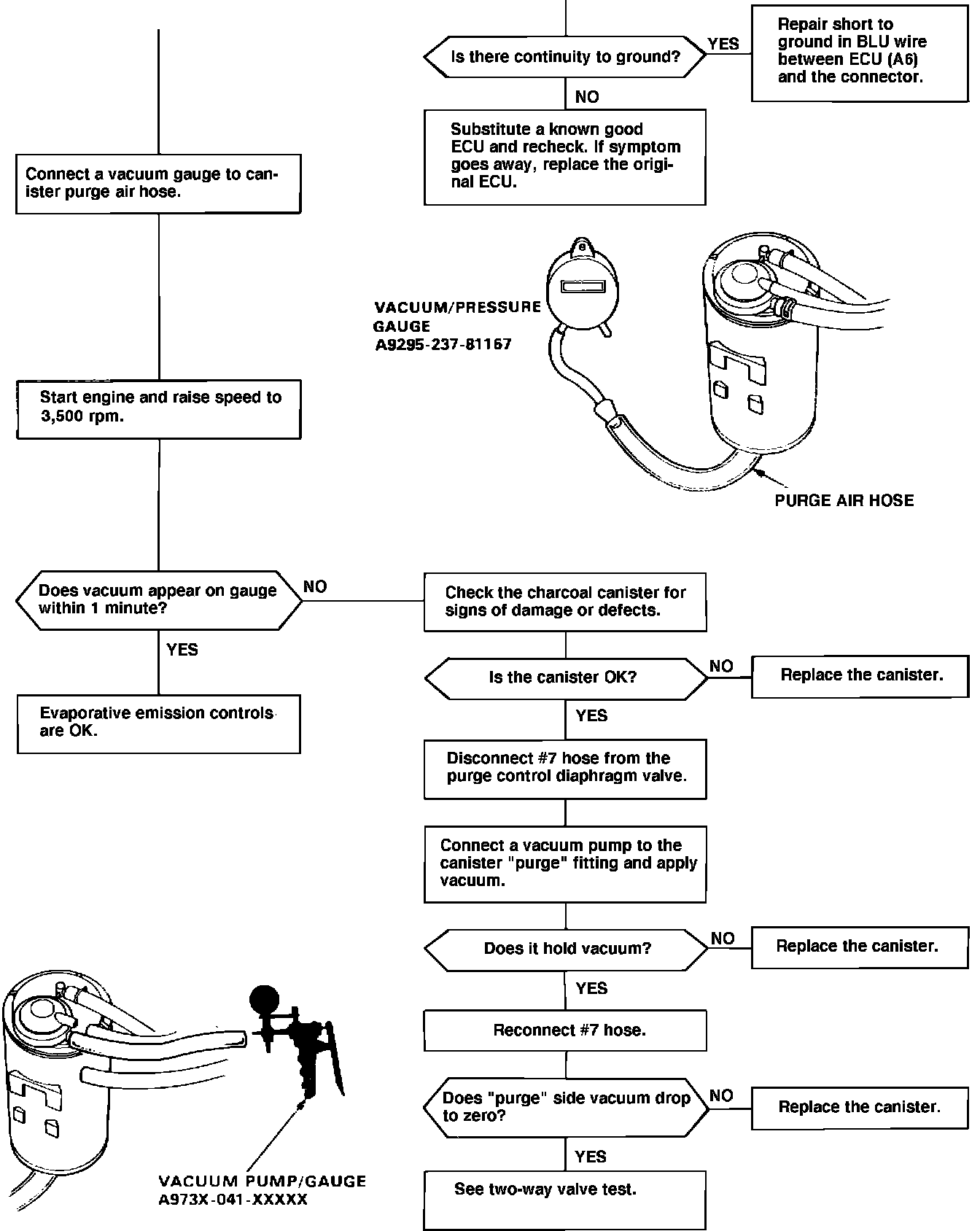

Fig. 31 Evaporative Emissions Controls System Diagnostic Test Procedure.:

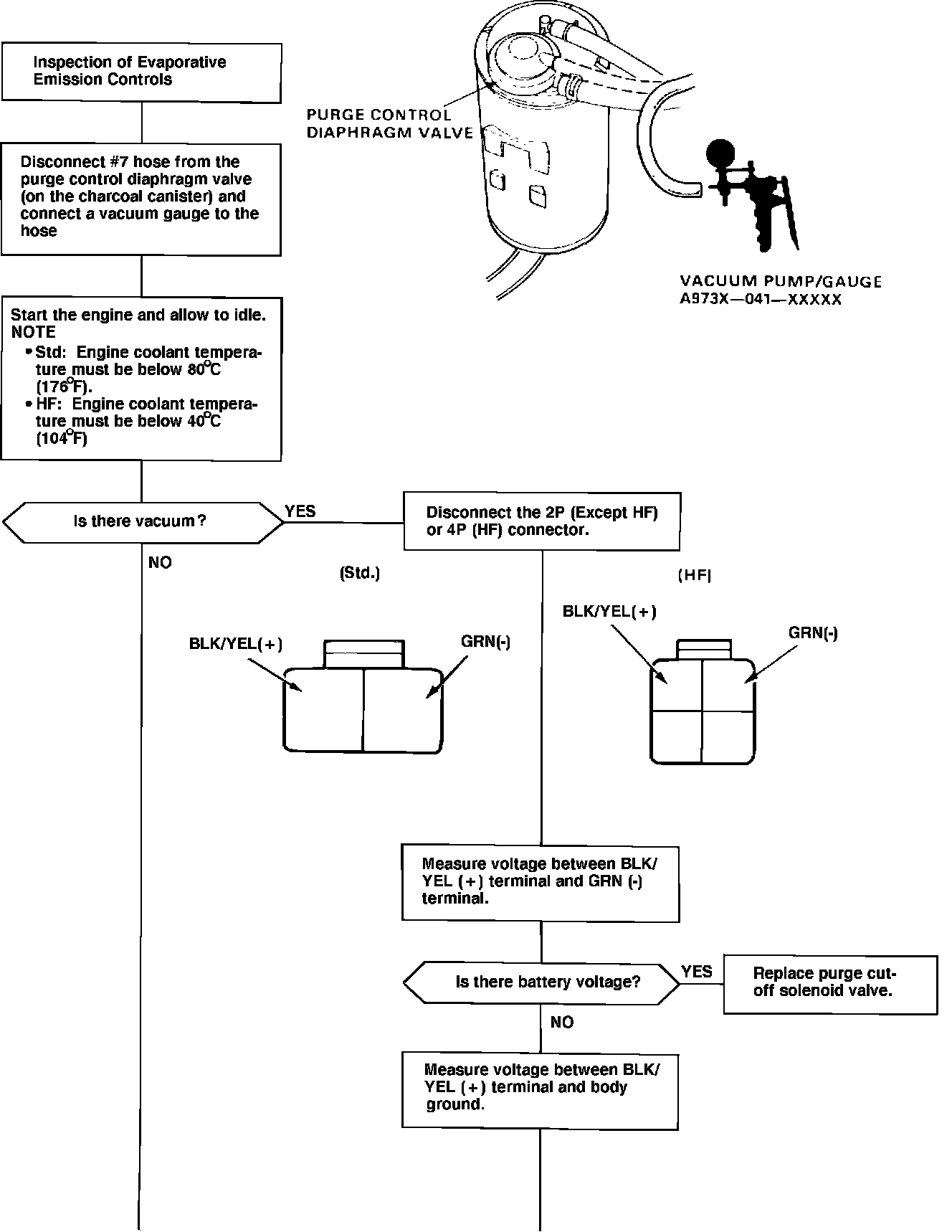

Fig. 30 Evaporative Emissions Controls System Diagnostic Test Procedure.:

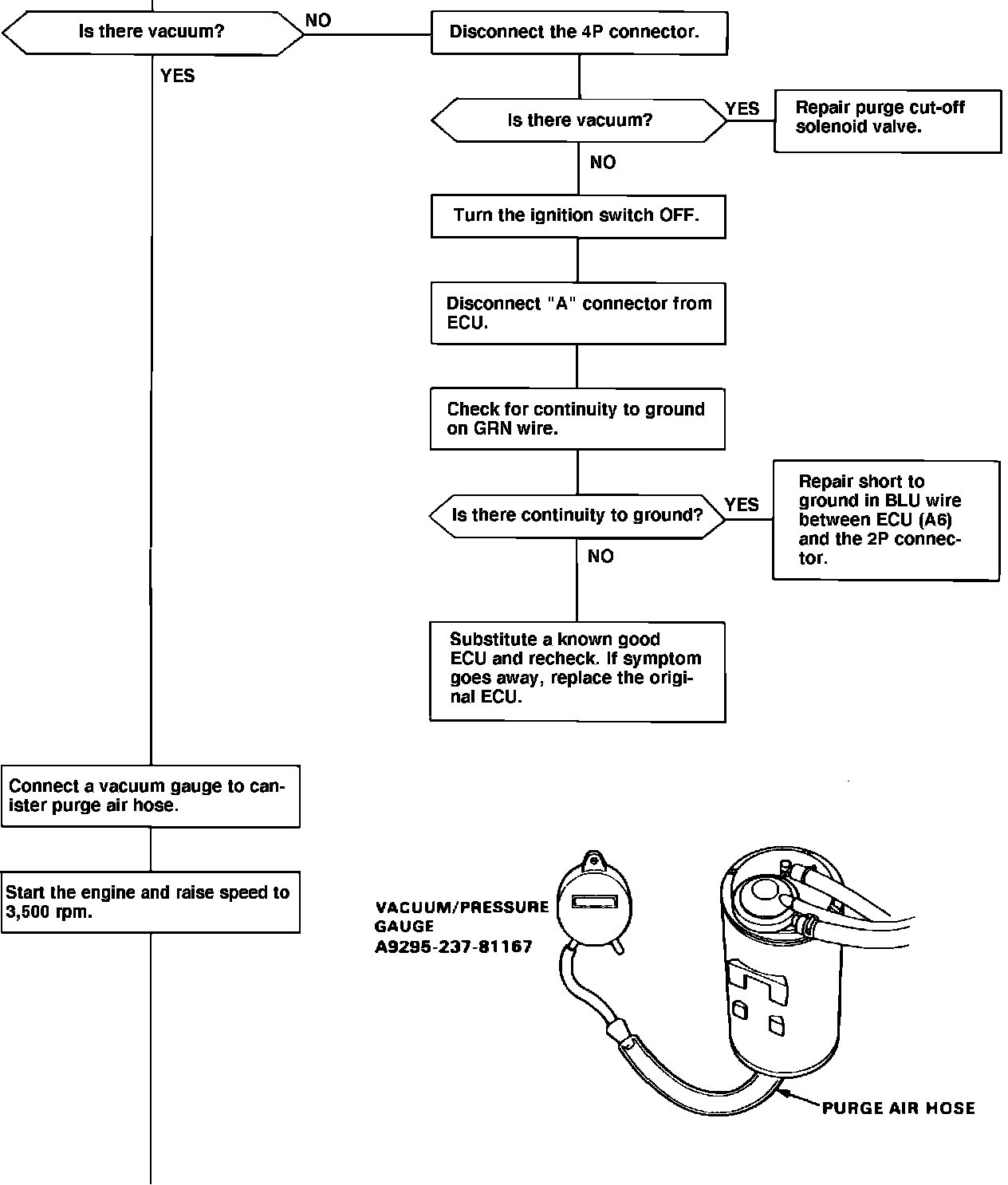

Fig. 31 Evaporative Emissions Controls System Diagnostic Test Procedure.:

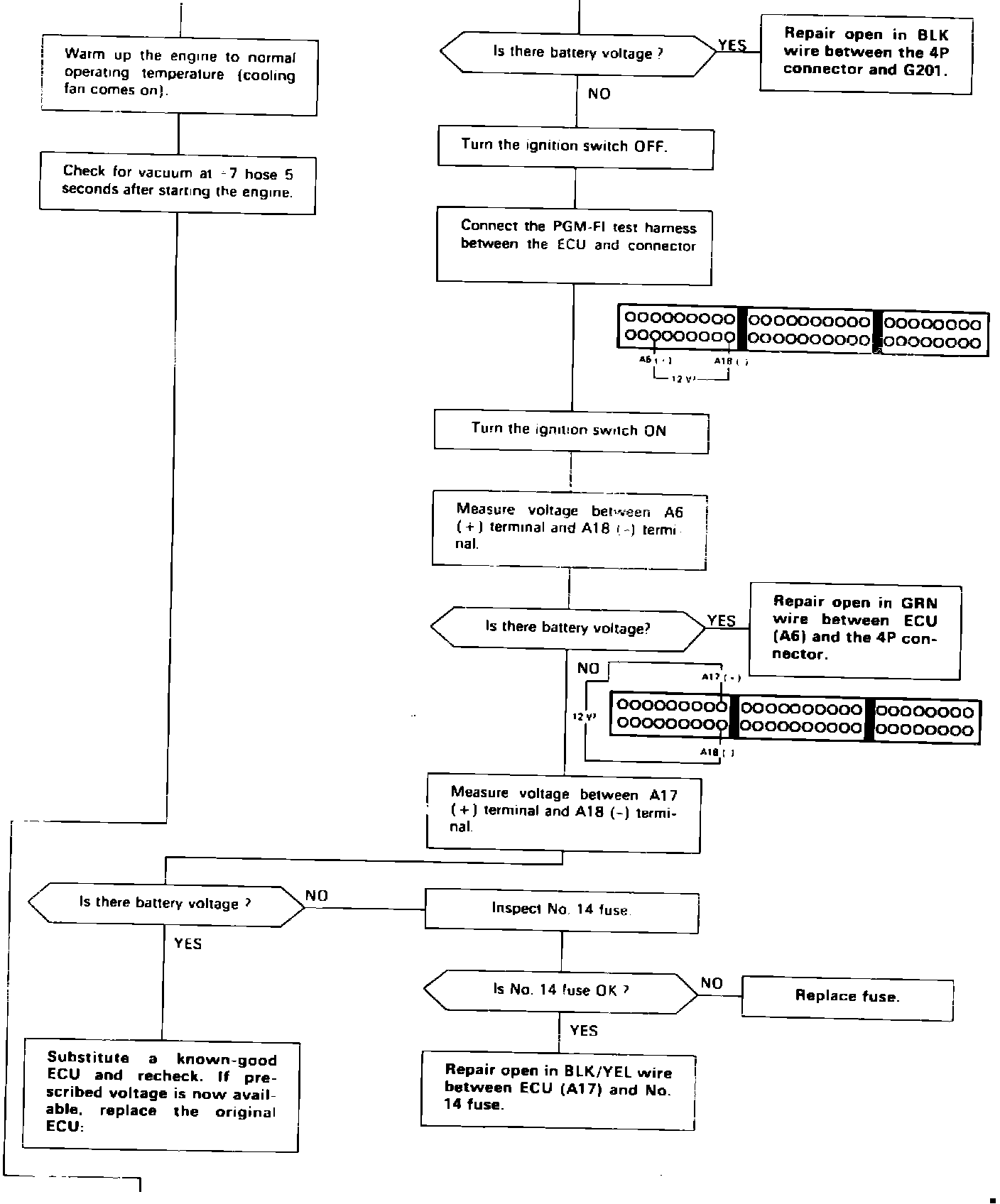

Fig. 30 Evaporative Emissions Controls System Diagnostic Test Procedure.:

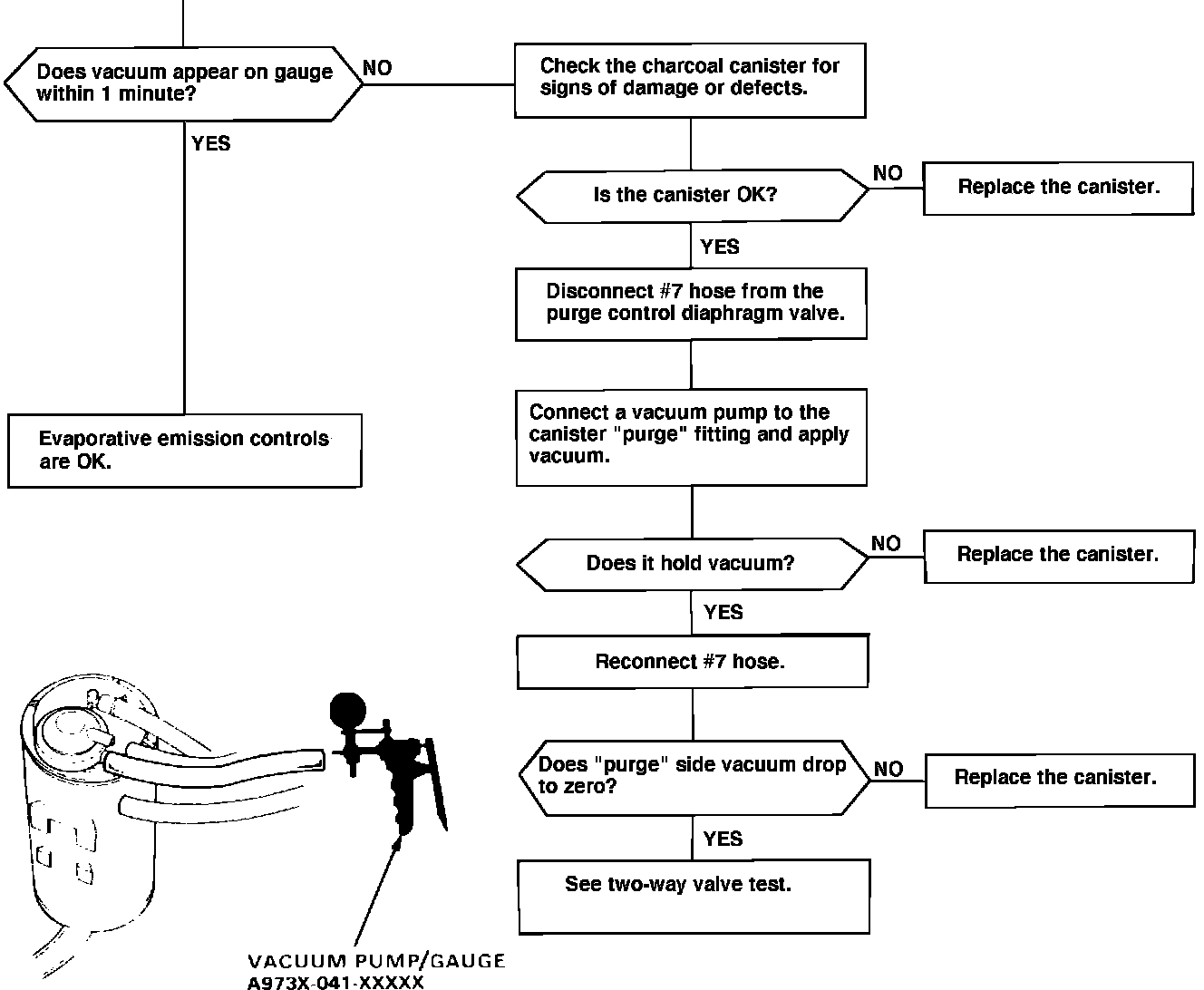

Fig. 31 Evaporative Emissions Controls System Diagnostic Test Procedure.:

Fig. 31 Evaporative Emissions Controls System Diagnostic Test Procedure.:
