Self Diagnostic Chart For ECU

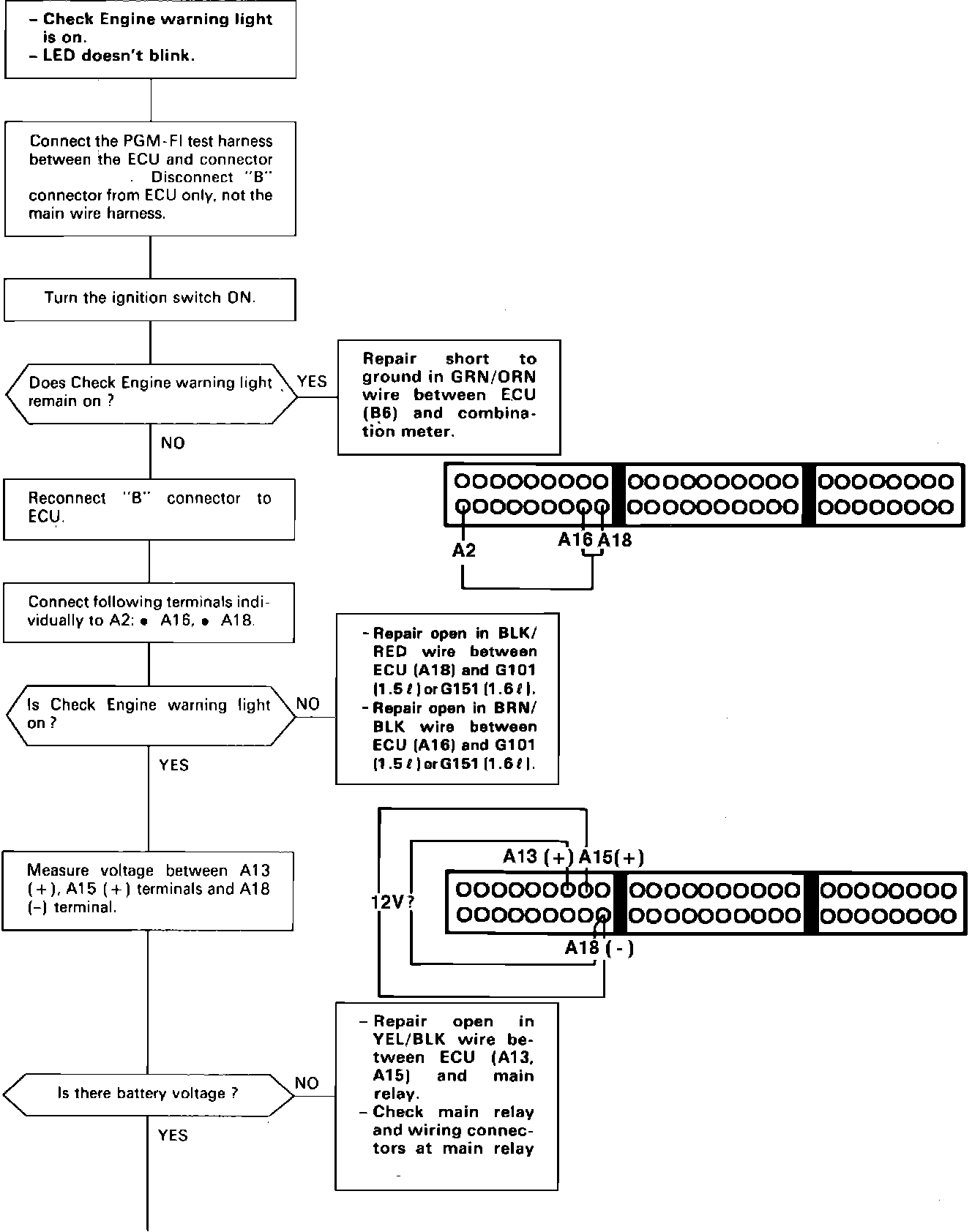

Fig. 7 Self diagnostic chart (ECU).:

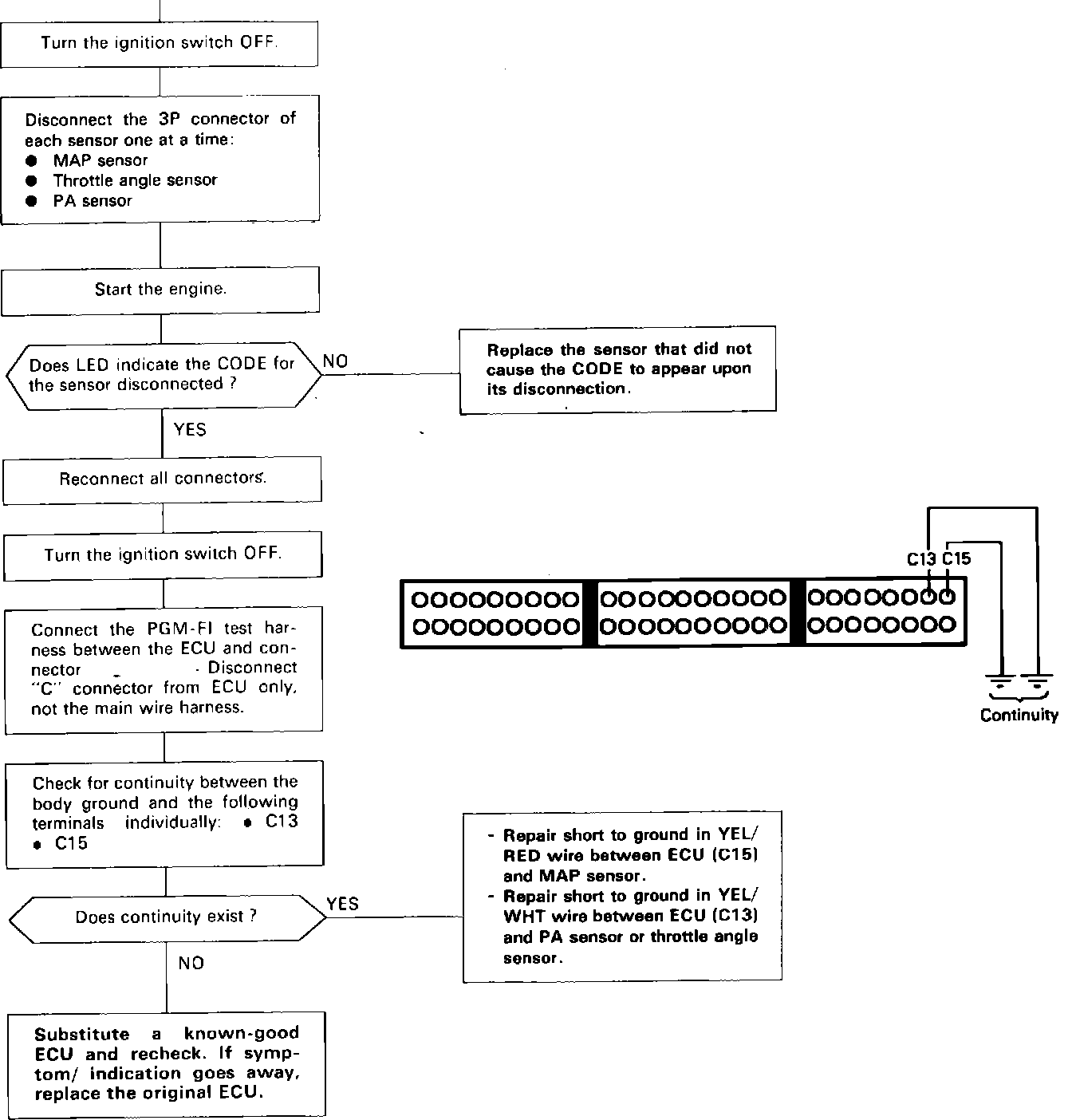

Fig. 7 Self diagnostic chart (ECU).:




Fig. 7 Self diagnostic chart (ECU).:





Self Diagnostic Chart for ECU
