Civic Hatchback L4-1493cc 1.5L SOHC (D15B1) TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Engine Compartment
Engine Compartment

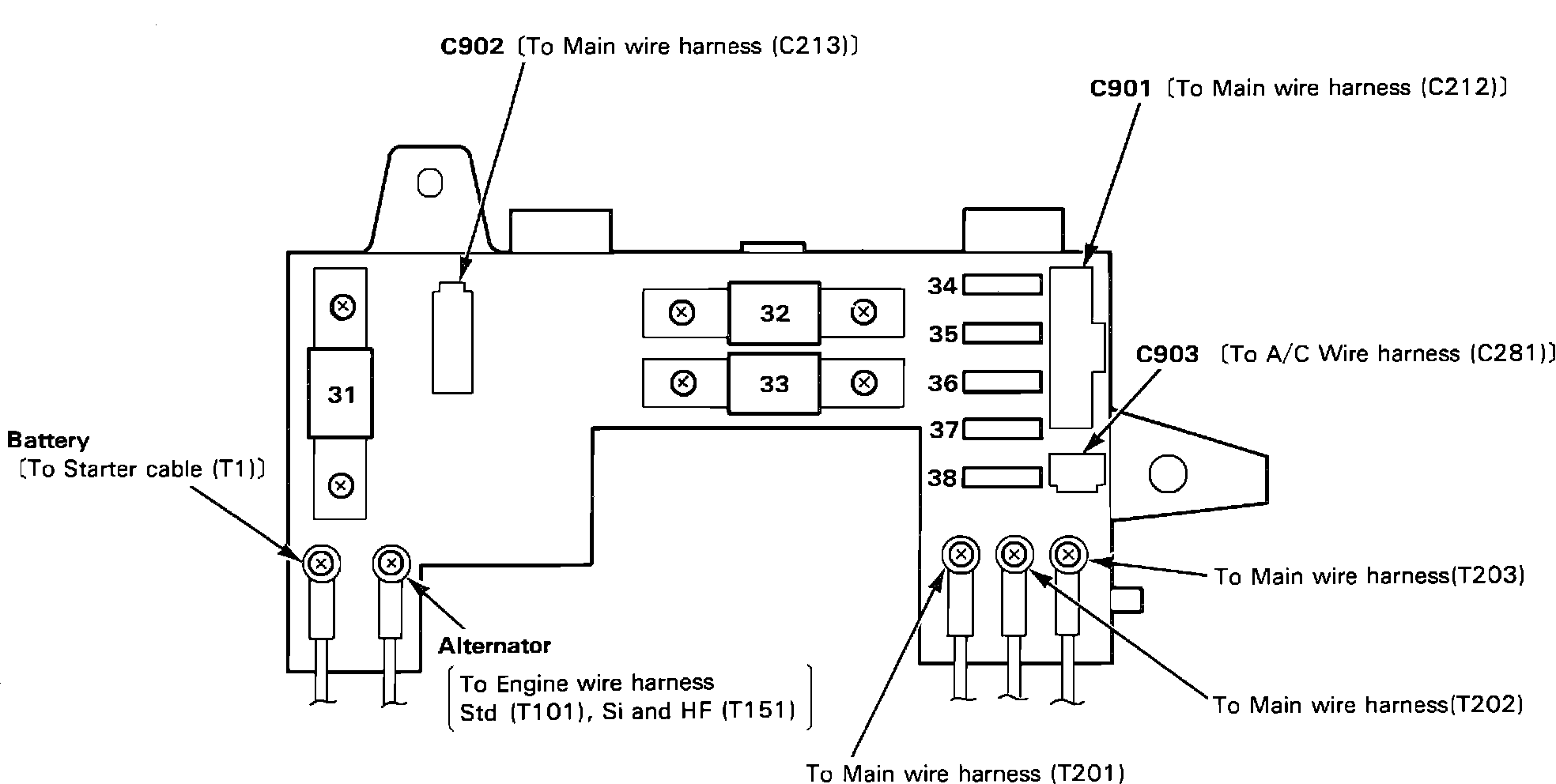

Fig. 2b Engine Compartment Fuse Panel:
