Radiator Cooling Fan Temperature Sensor / Switch: Locations

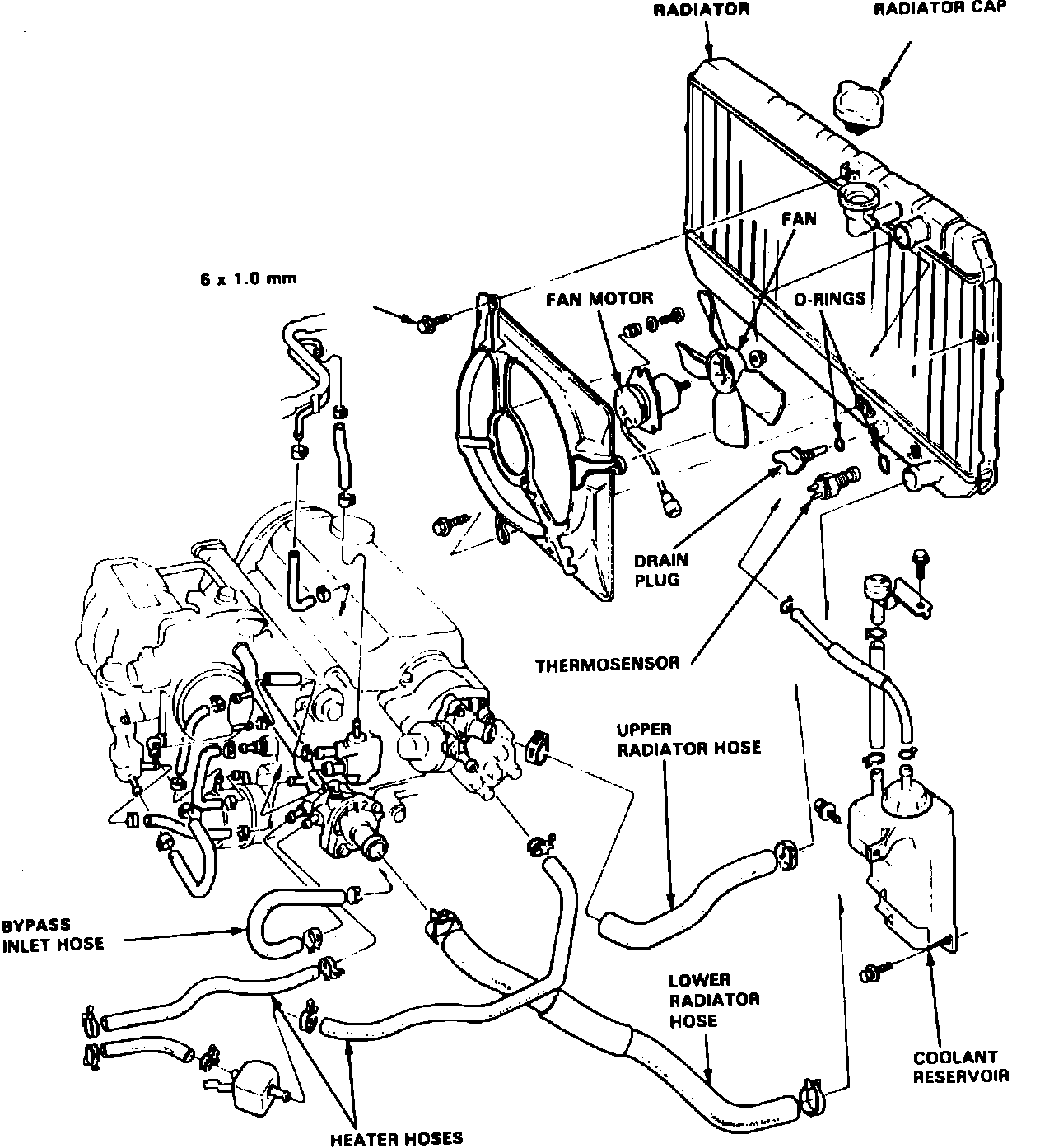

Engine Cooling System Components (Part 1 Of 2).:

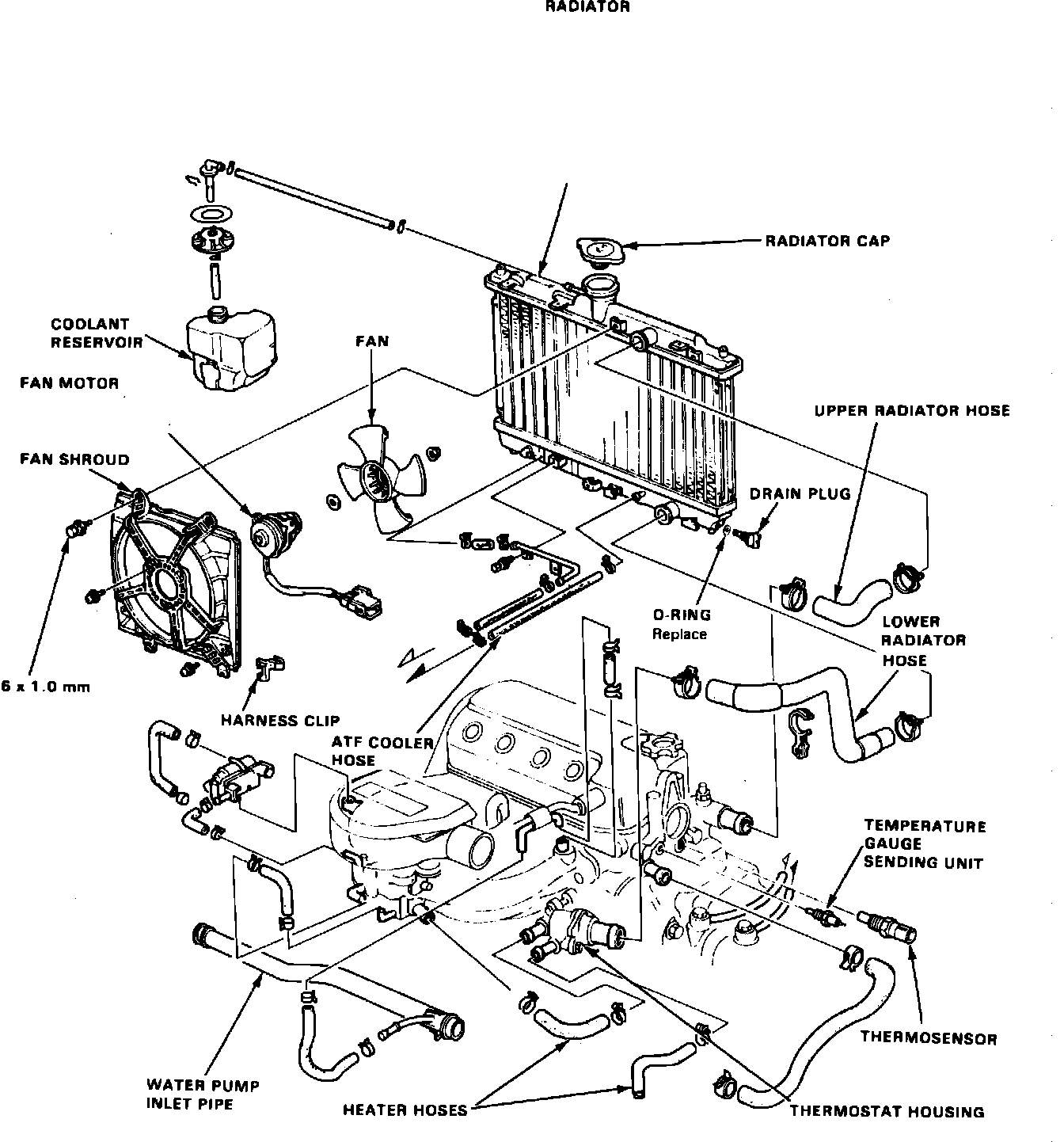

Engine Cooling System Components (Part 1 Of 2).:

On Upper RH Side Of Engine

Applicable to: 1987 Civic w/Fuel Injected Engine
