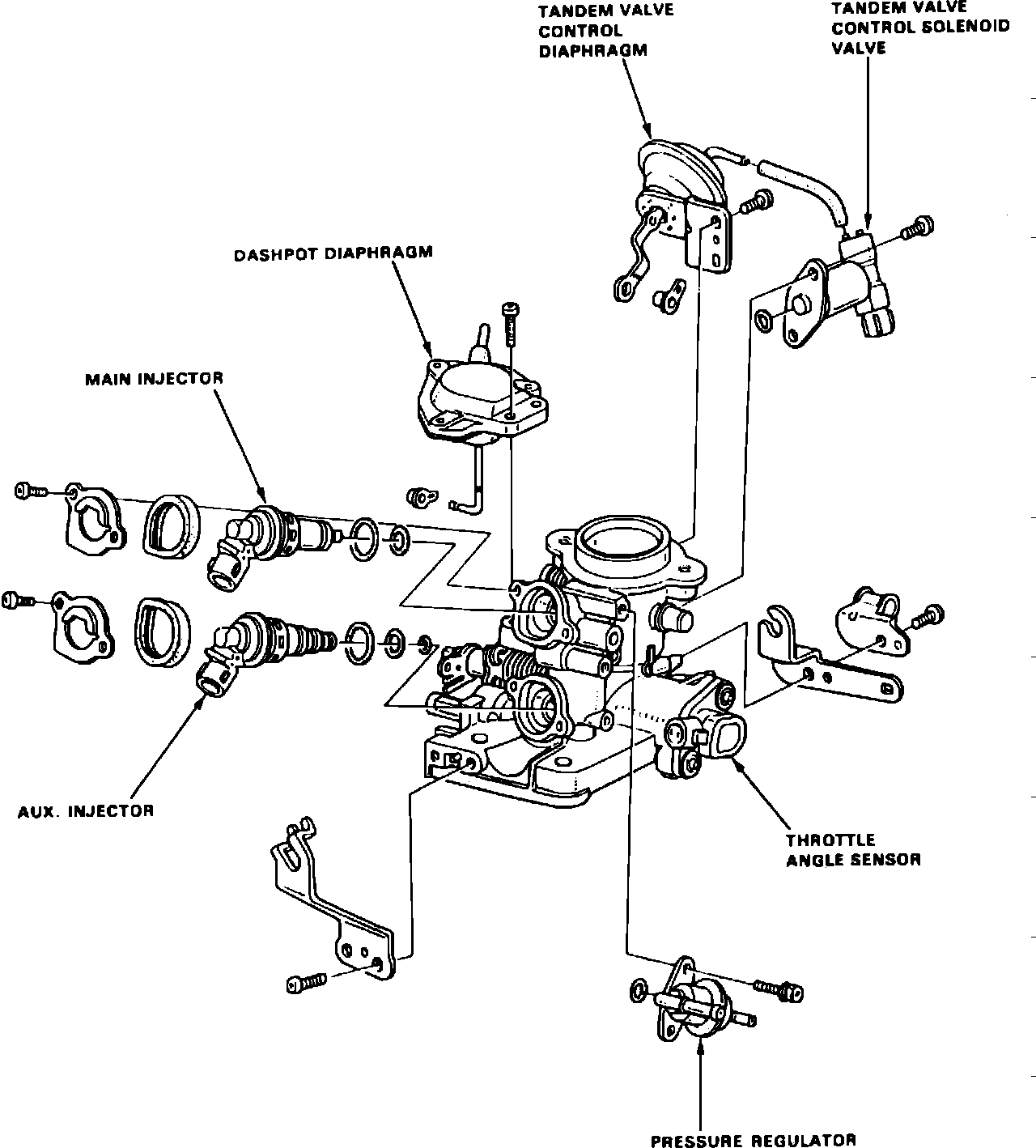

Throttle Position Sensor: Locations

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

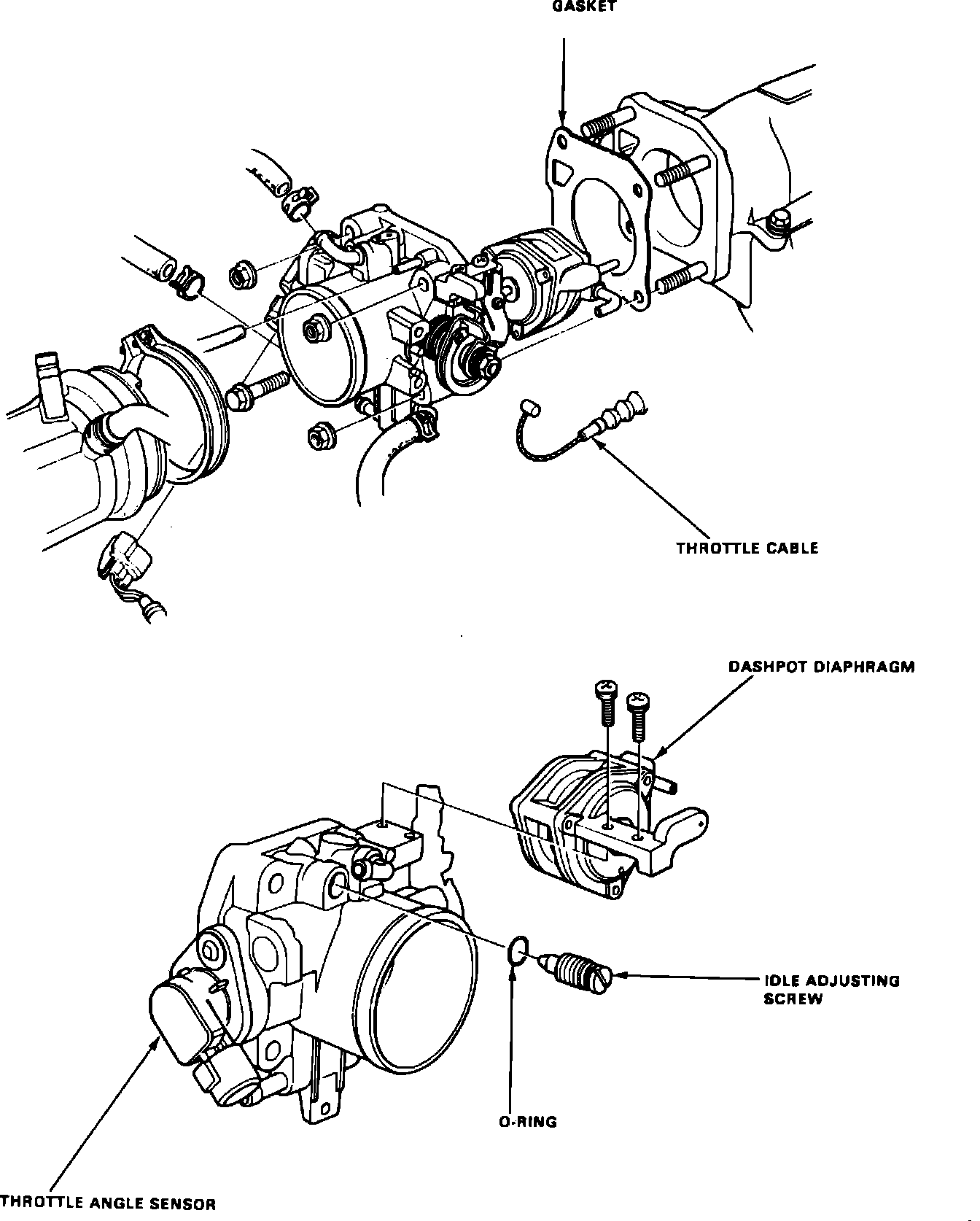

At Throttle Body

Applicable to: 1988 CRX w/Fuel Injected Engine
