Function Control Motor Does Not Run

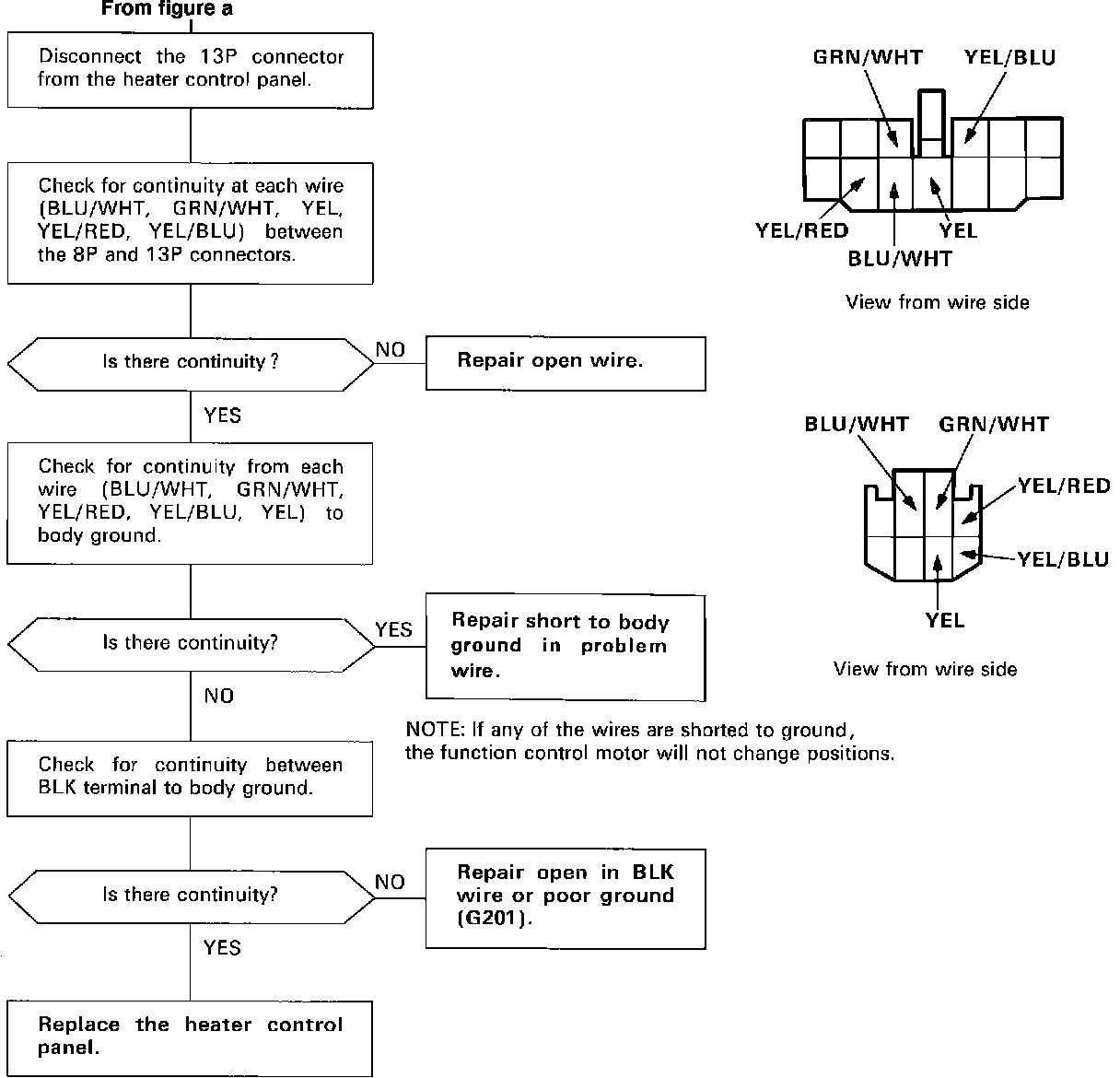

Fig. 14a Function control motor does not run.:



Fig. 14b Function control motor does not run.:
