CRX HF L4-1493cc 1.5L SOHC (D15B6) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Throttle Body
Throttle Body

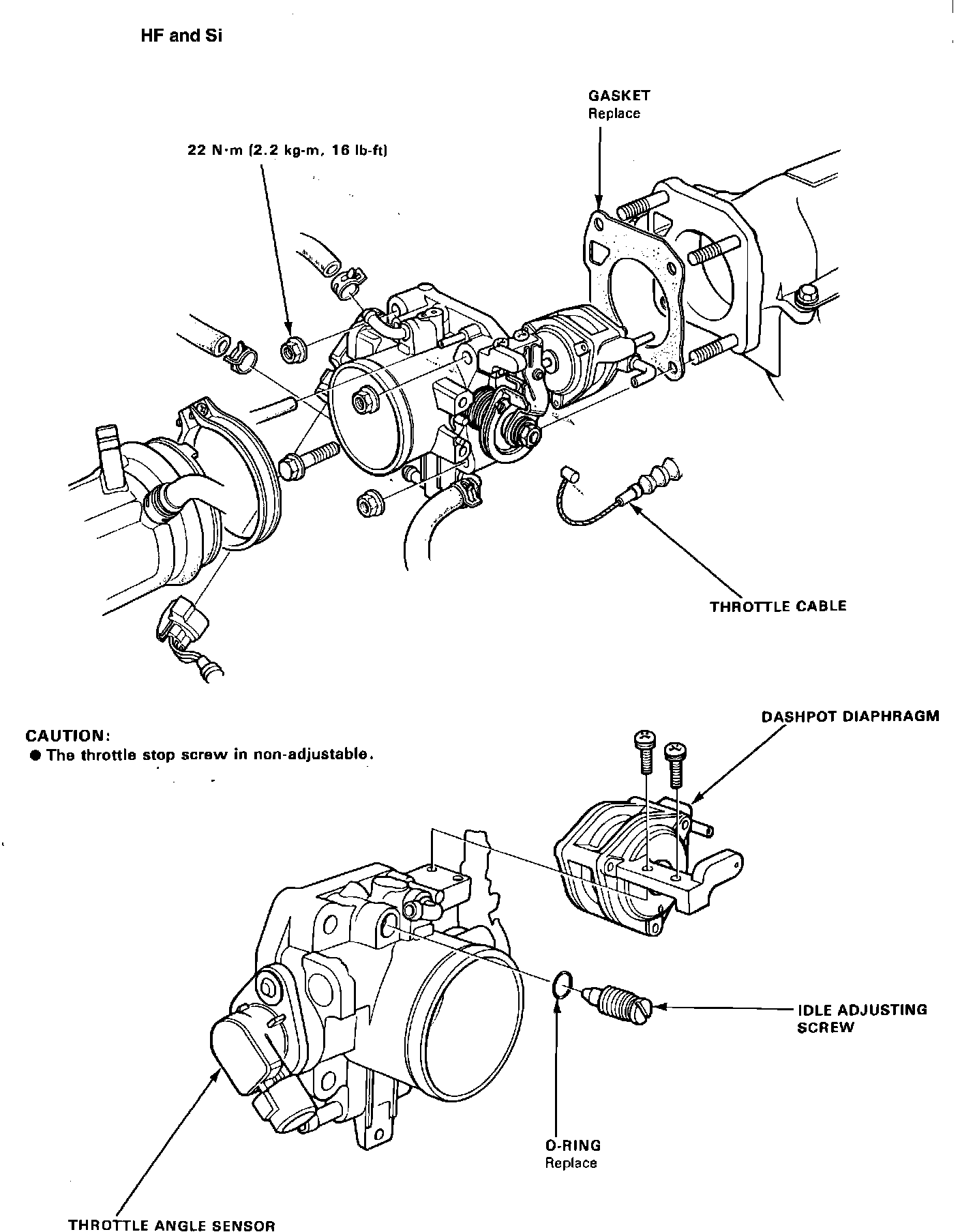

Fig. 432 Throttle Body Component Locations (HF & SI):
