Battery - Test Procedure
88honda07Model
ALL
Applicable To
ALL
File Under
ELECTRICAL
Bulletin No. 88-023
Issue Date AUG 5, '88
Battery Test Procedure (Supersedes Service Bulletin 84-057, dated Nov 5, '84)
American Honda will process claims for battery replacement under warranty only if the battery fails the procedure described on the back of this bulletin.
TEST EQUIPMENT REQUIRED
^ 12V Battery Charger with a fast charge capability of 40A minimum.
^ VAT-40(or equivalent).
TEST PROCEDURE
See other side of this page.
WARRANTY CLAIM INFORMATION
1. The reading from Load Test #1 (if required) from the procedure on the back of this page, must be entered into the Warranty Claim Field "LOAD TEST #1."
2. The reading from Load Test #2 (if required) from the procedure on the back of this page, must be entered into the Warranty Claim Field "LOAD TEST #2."
3. The charging time (if required) from the procedure on the back of this page, must be entered into the Warranty Claim Field "CHARGE TIME."
NOTE: The correct Defect Code for the FAILED BATTERY BRAND must be entered, or the claim will be rejected. DO NOT enter the Defect Code for the new replacement battery. The Warranty Claim Chart lists the ONLY Defect Codes that can be used for the battery claim.
BATTERY TEST PROCEDURE
CAUTION: Battery electrolyte is a sulfuric acid solution.
^ If it spills on painted surfaces, clothing, or skin, rinse it off with water immediately to minimize the damage.
^ Always wear safety goggles or a face shield when servicing a battery
^ Do not overcharge. If electrolyte escapes from the battery, or temperature rises above 125~F, stop charging and wait for the battery to return to a safe state.
NOTE: To get accurate results, the temperature of the electrolyte must be between 70~F and 100~F before you test the battery.

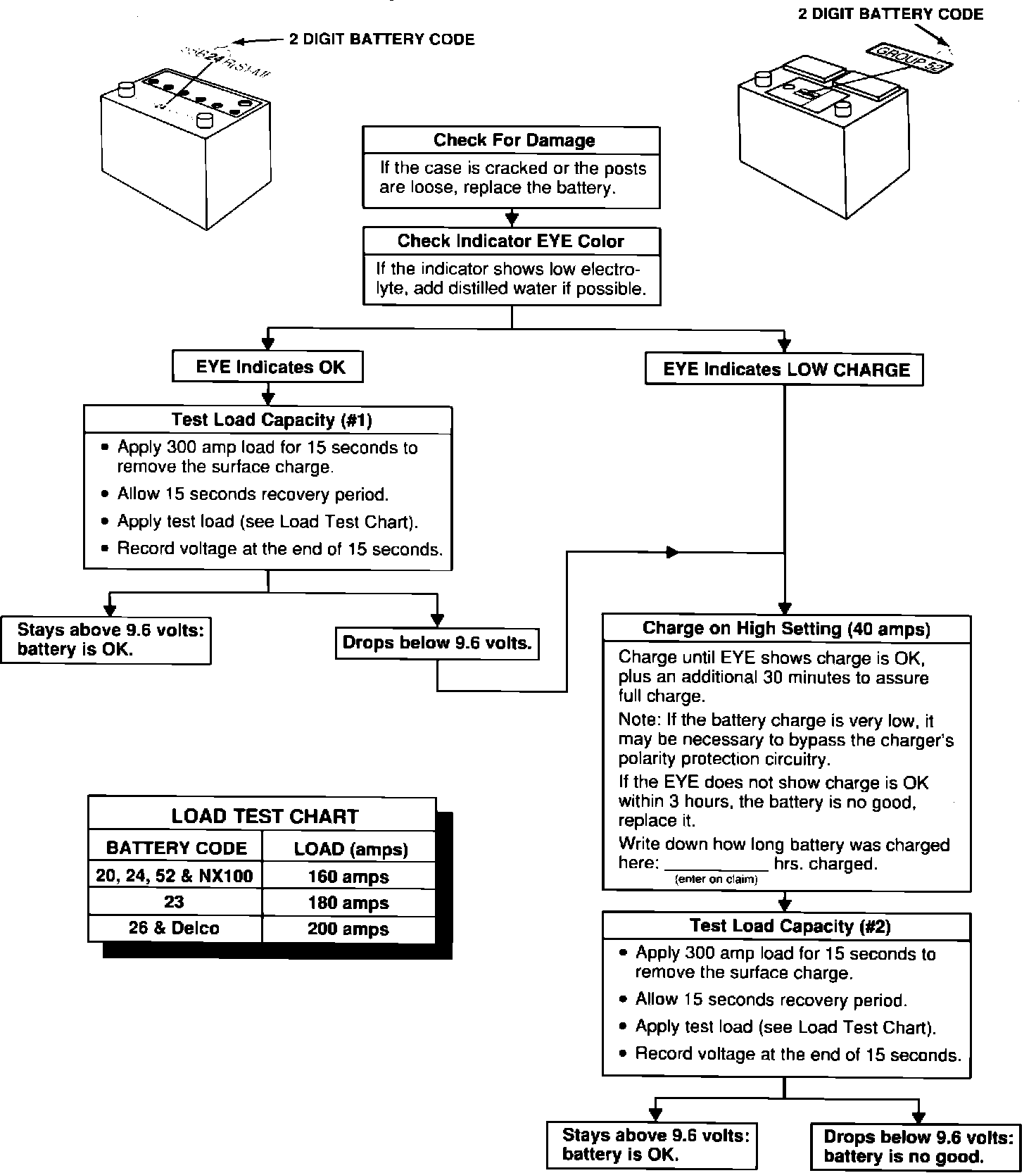

Most batteries are categorized by a 2-digit code (found on top of the battery). The 2-digit code is located on either an identification sticker or embossed on the casing. See the illustrations below:
