Noise Condenser Test

Radio Noise Condenser Test

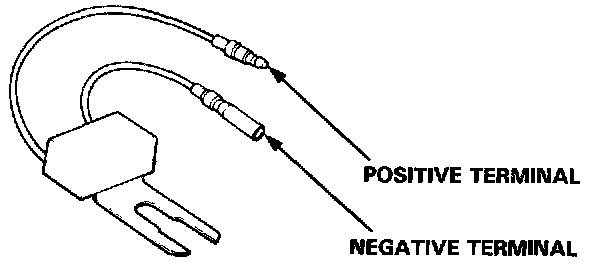

1. Use a commercially available condenser tester. Connect the tester probes and measure condenser capacity.

Condenser Capacity: 0.47 ± 0.09 microfarads

NOTE: The radio noise condenser is intended to reduce ignition noise; however, condenser failure may cause the engine to stop running.

2. If not within the specifications, replace the radio noise condenser.
