Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Condenser Fan
>>
Locations
Condenser Fan: Locations

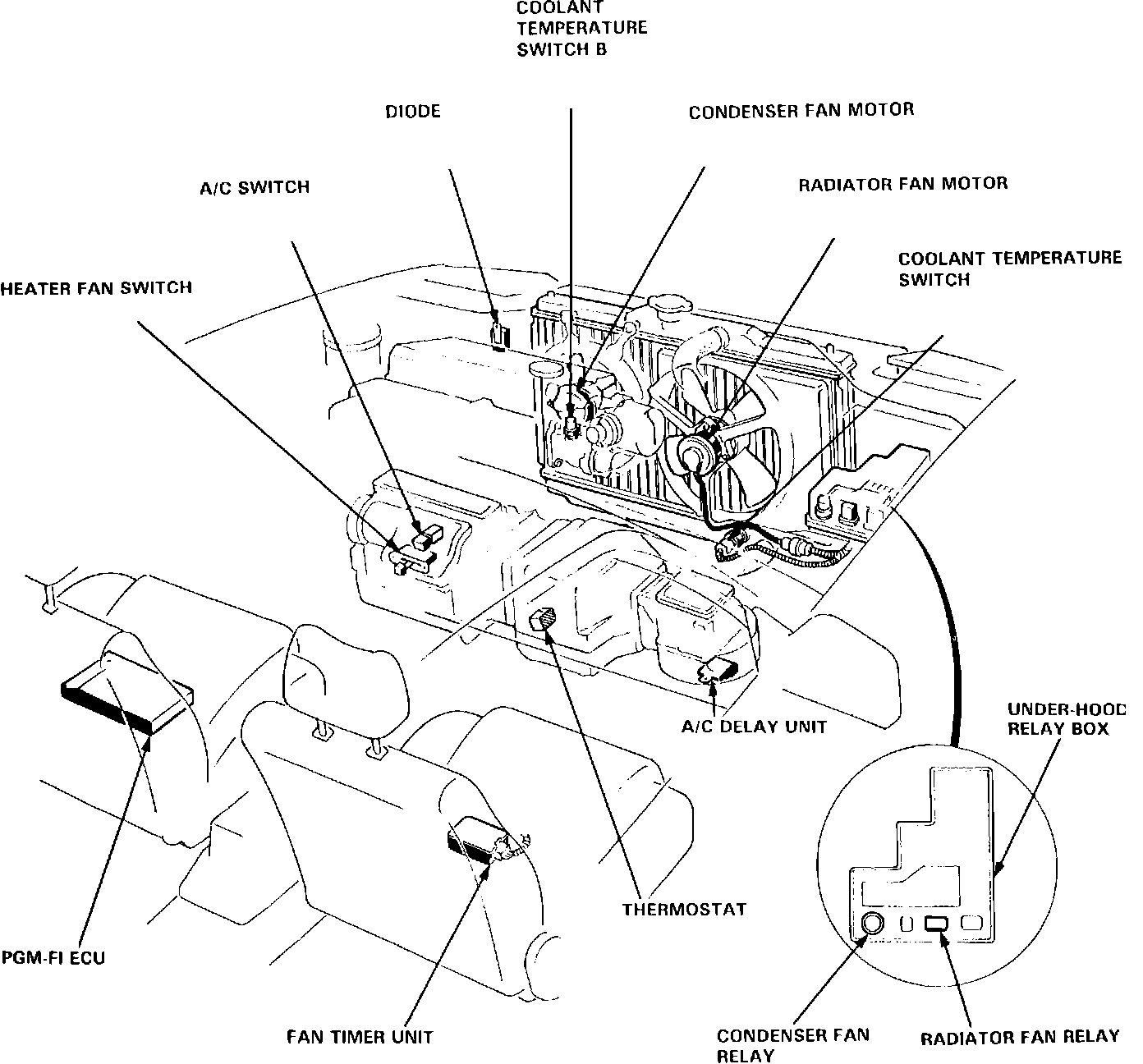

Fig. 123 Relay, Switch And control Unit Locations:
