Installing Synchronizer Hubs In Sleeves

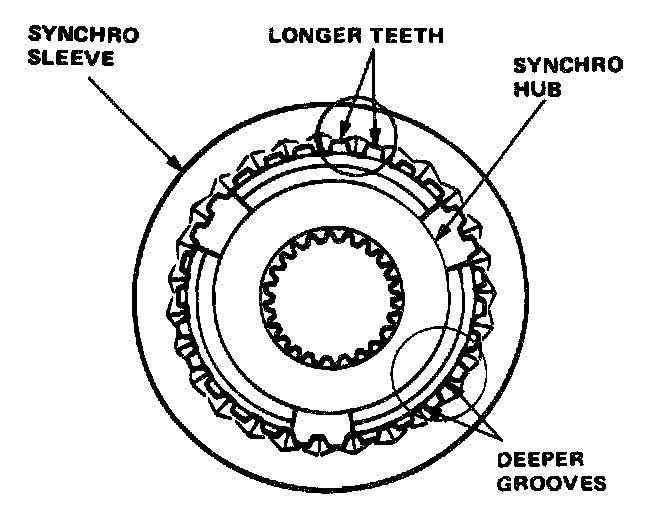

Each synchronizer sleeve has three sets of longer teeth (120 degrees apart) that must be matched with the three sets of deeper grooves in the hub when assembled.
