Description

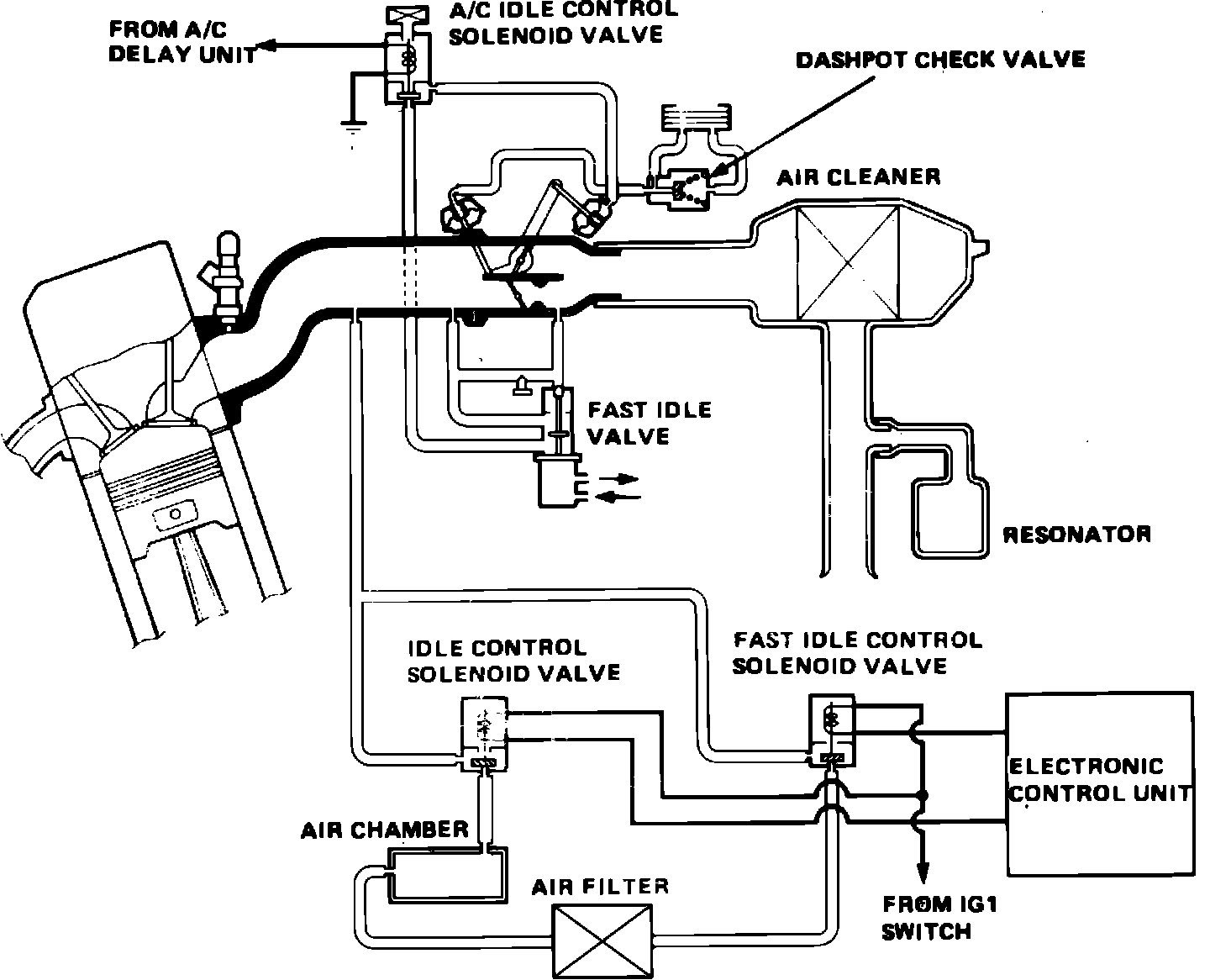

Fig. 1 Air intake system schematic:

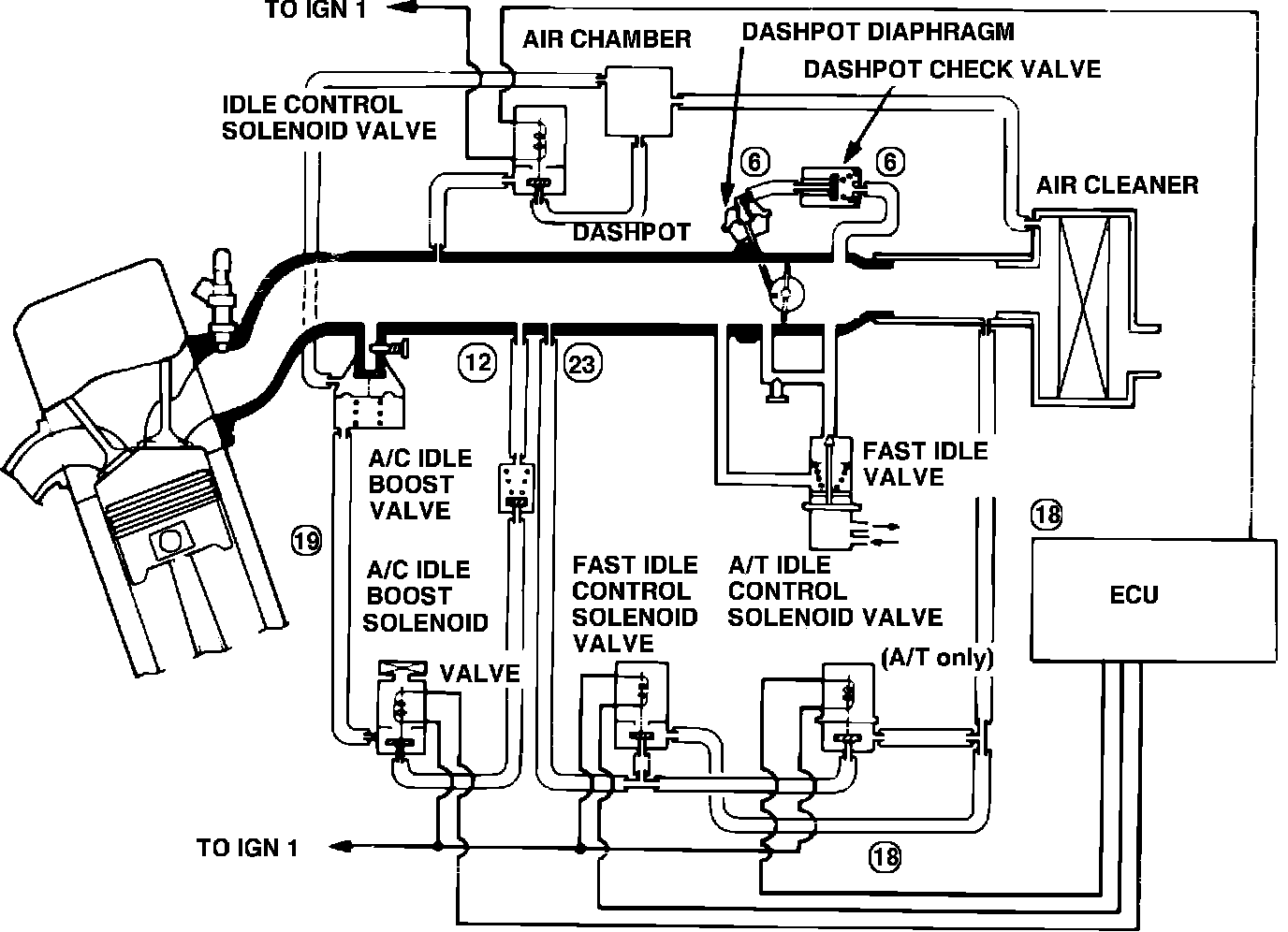

Fig. 2 Air intake system schematic:

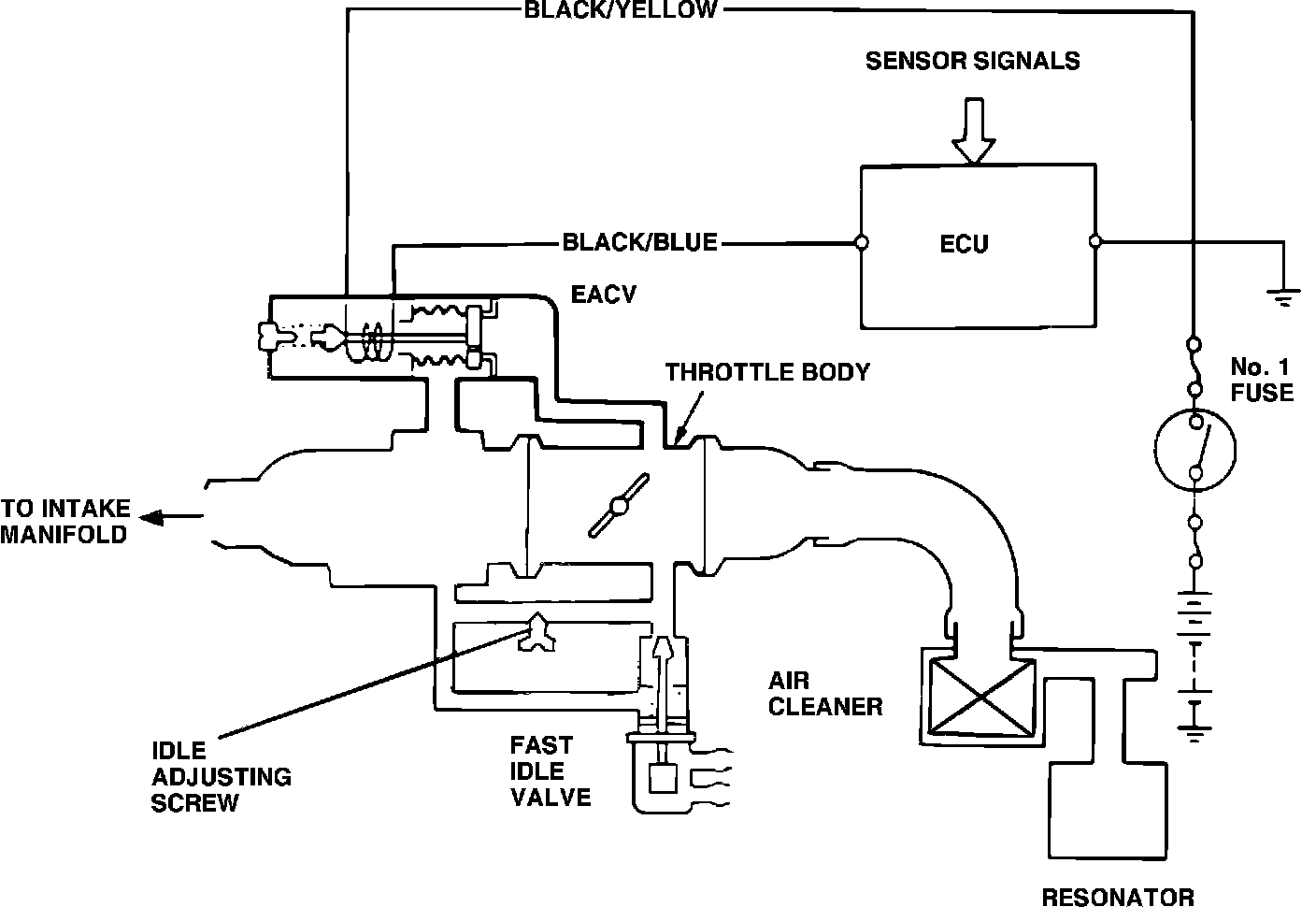

Fig. 3 Air intake system schematic:

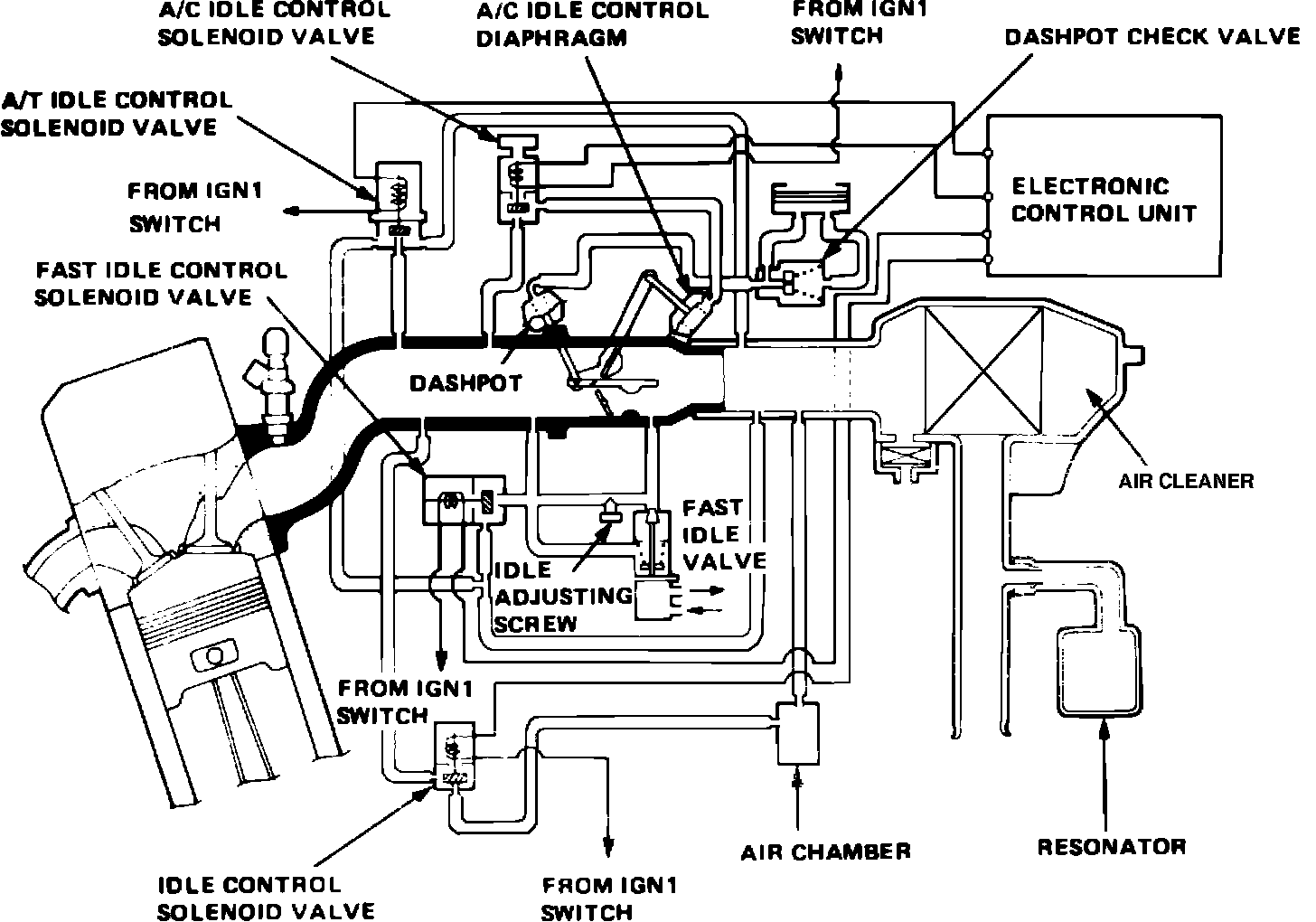

Fig. 4 Air intake system schematic:

This system consists of the elements that control air flow through the engine including the air cleaner, air intake pipe, throttle body, manifold and the various valves which control curb and fast idle speeds, Figs. 1 through 4.
