Instrument Cluster / Carrier: Service and Repair

REMOVAL
1. Lower the steering column, and remove the dashboard lower panel.

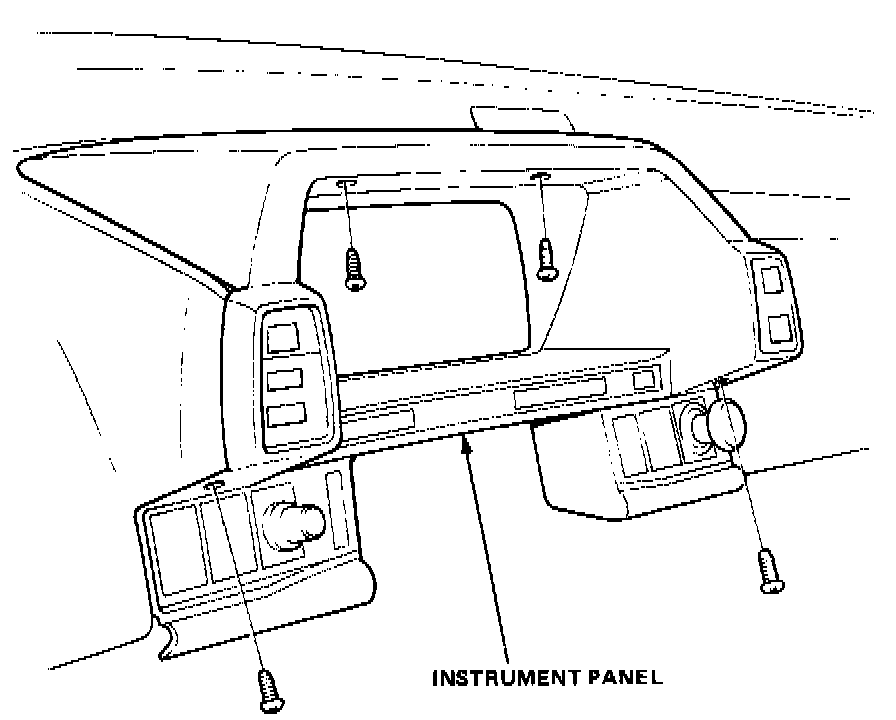

2. Remove the four screws.
3. Pull the instrument panel out, then disconnect the wire connectors.




4. Remove the panel.

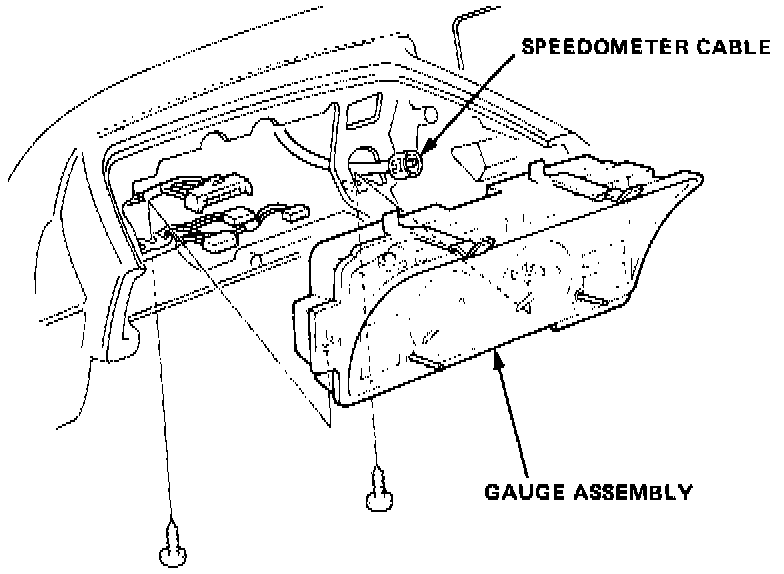

5. Remove the two screws, then lift the gauge assembly so you can reach the wire connectors.

CAUTION: Do not pull on the wires to disconnect connectors.




6. Disconnect the speedometer cable and wire connectors, then remove the gauge assembly.

To install, reverse order of removal.
