Air Conditioning System
>>
W/Carbureted Engine
W/Carbureted Engine

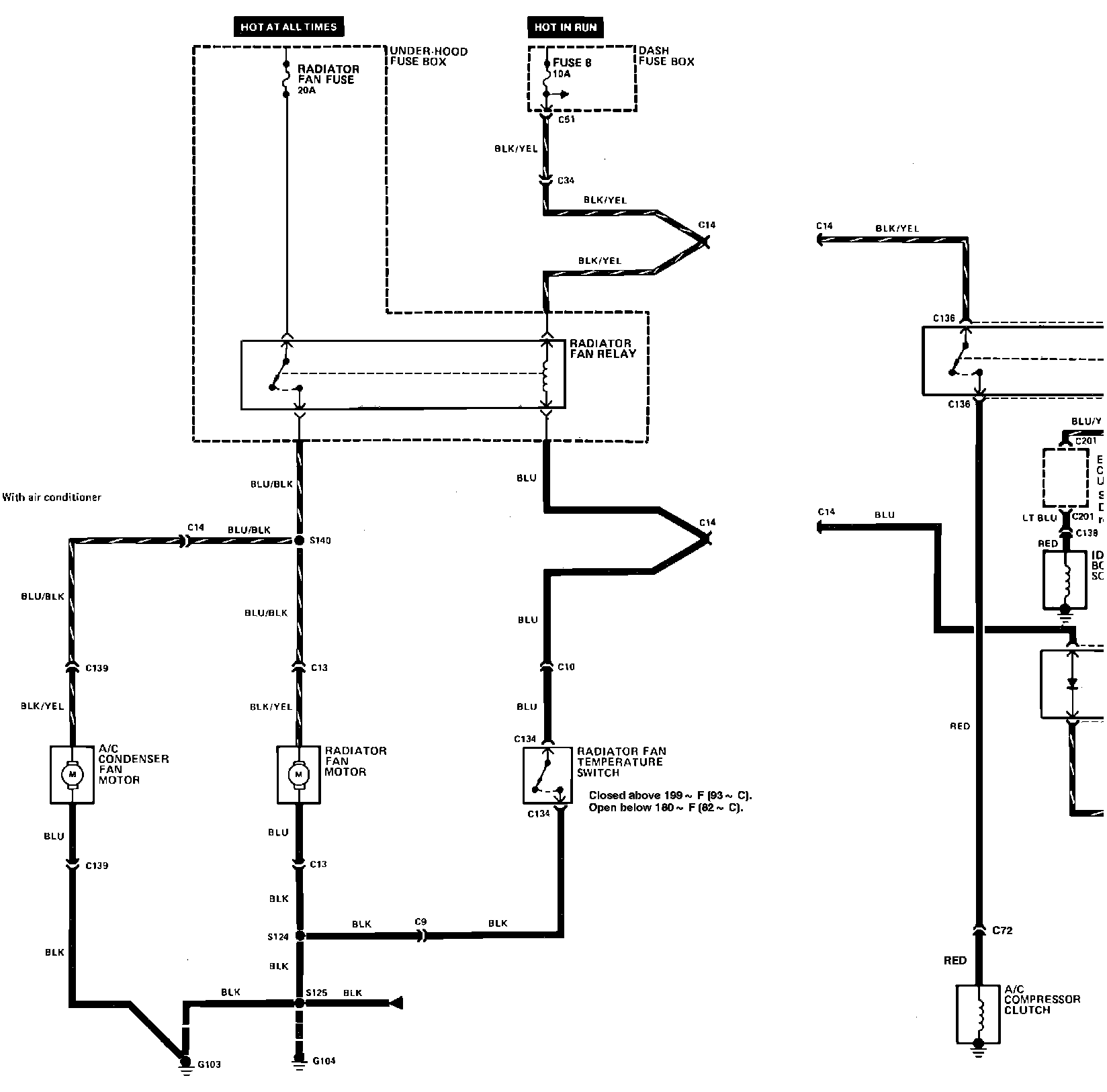

��)EFig. 16 Wiring diagram, A/C w/carburetor.:
