Curiosii for ever!: Car repair manuals for everyone.

Home >> Honda >> 1987 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Complete Body & Chassis Wiring Circuit >> Part 3 of 6

Part 3 of 6

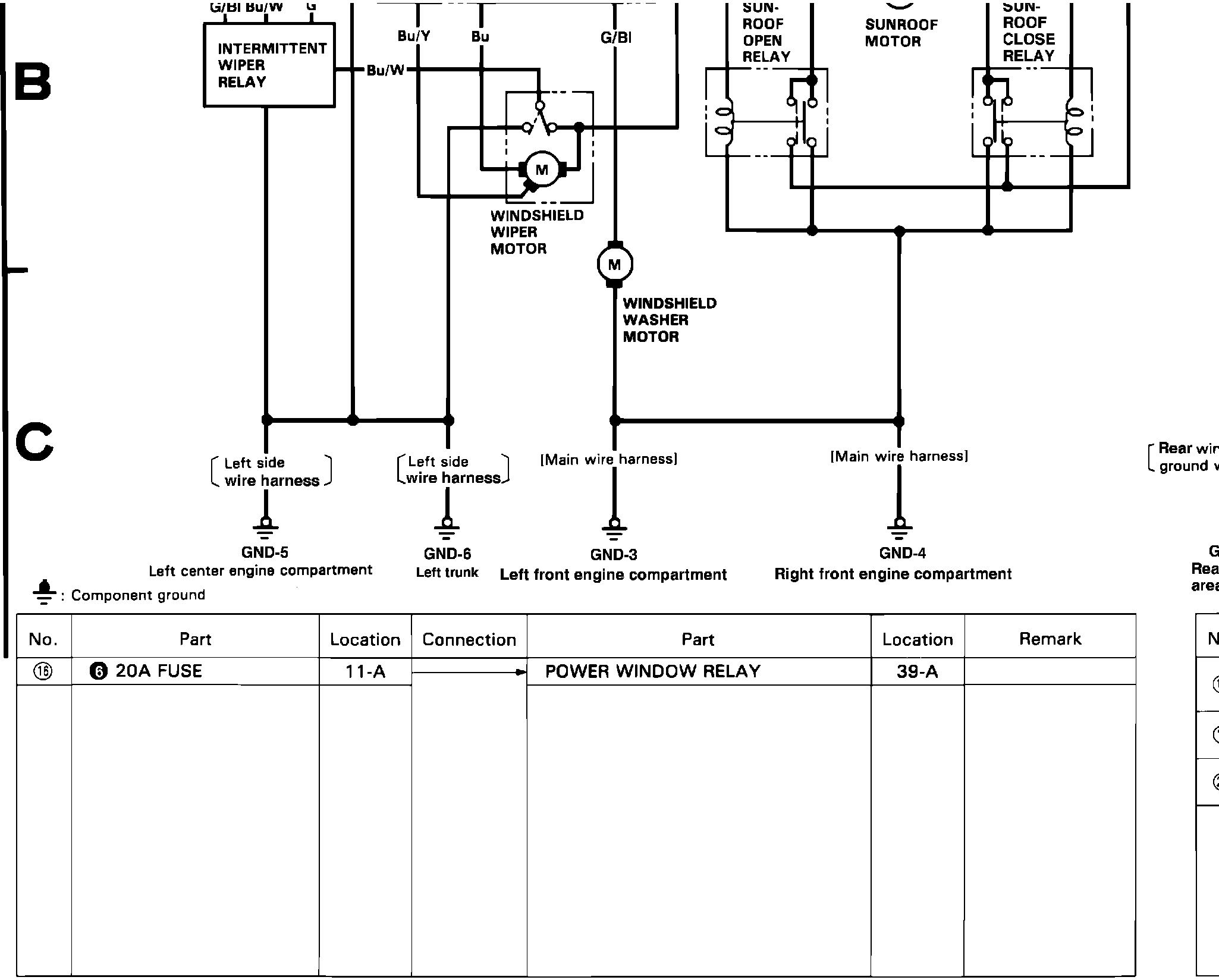

�c��cM�cD0�cBB�cFig. 15cf Complete Body & Chassis Wiring Circuit. W/Fuel Injected Engine:
