Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1987
>>
Prelude L4-1955cc 2000
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

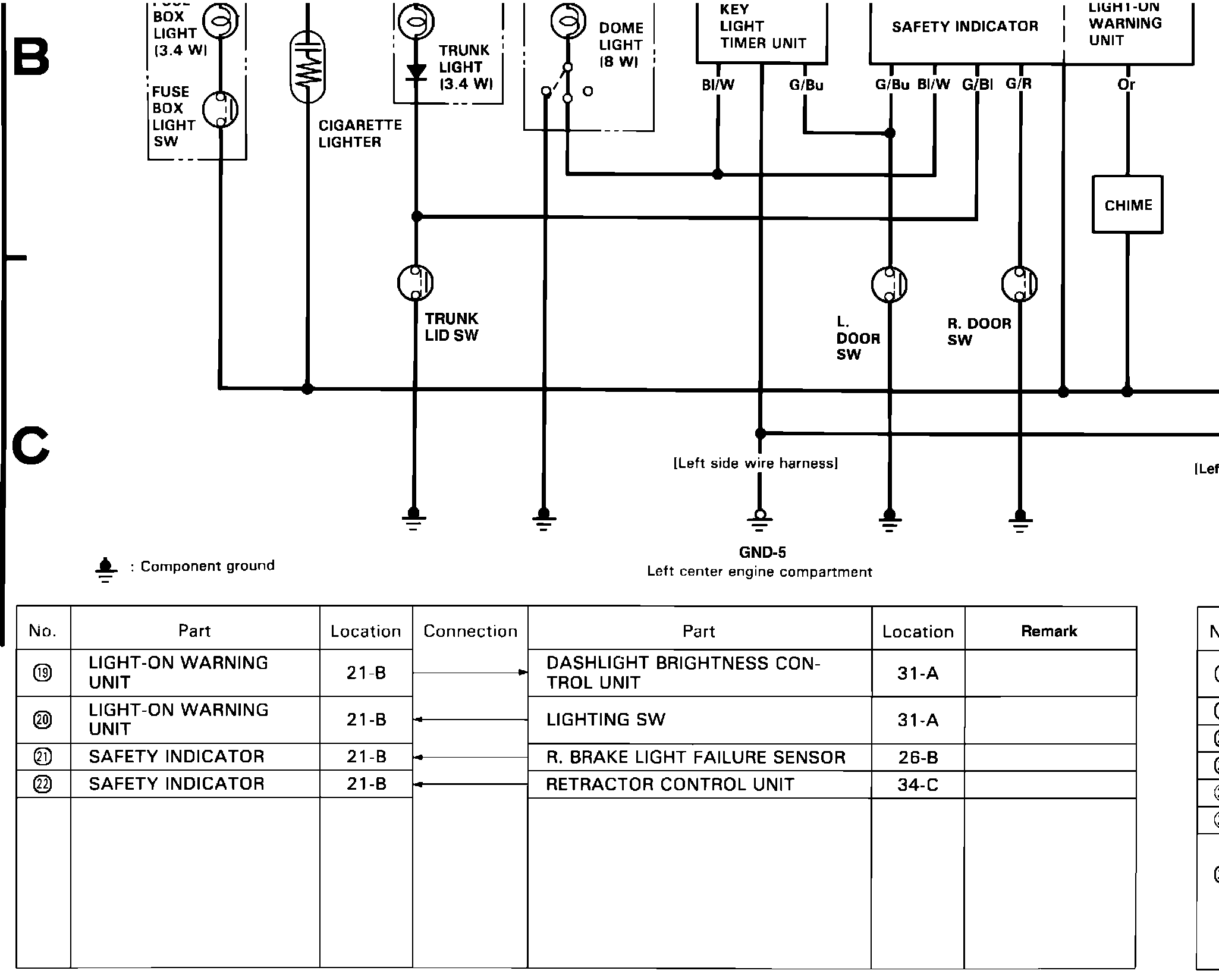

Complete Body & Chassis Wiring Circuit
>>
Part 2 of 6
Part 2 of 6
/a�c��c:
