Home
>>
Honda
>>
1987
>>
Prelude L4-1955cc 2000
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body & Chassis Wiring Circuit
>>
Part 1 of 6
Part 1 of 6

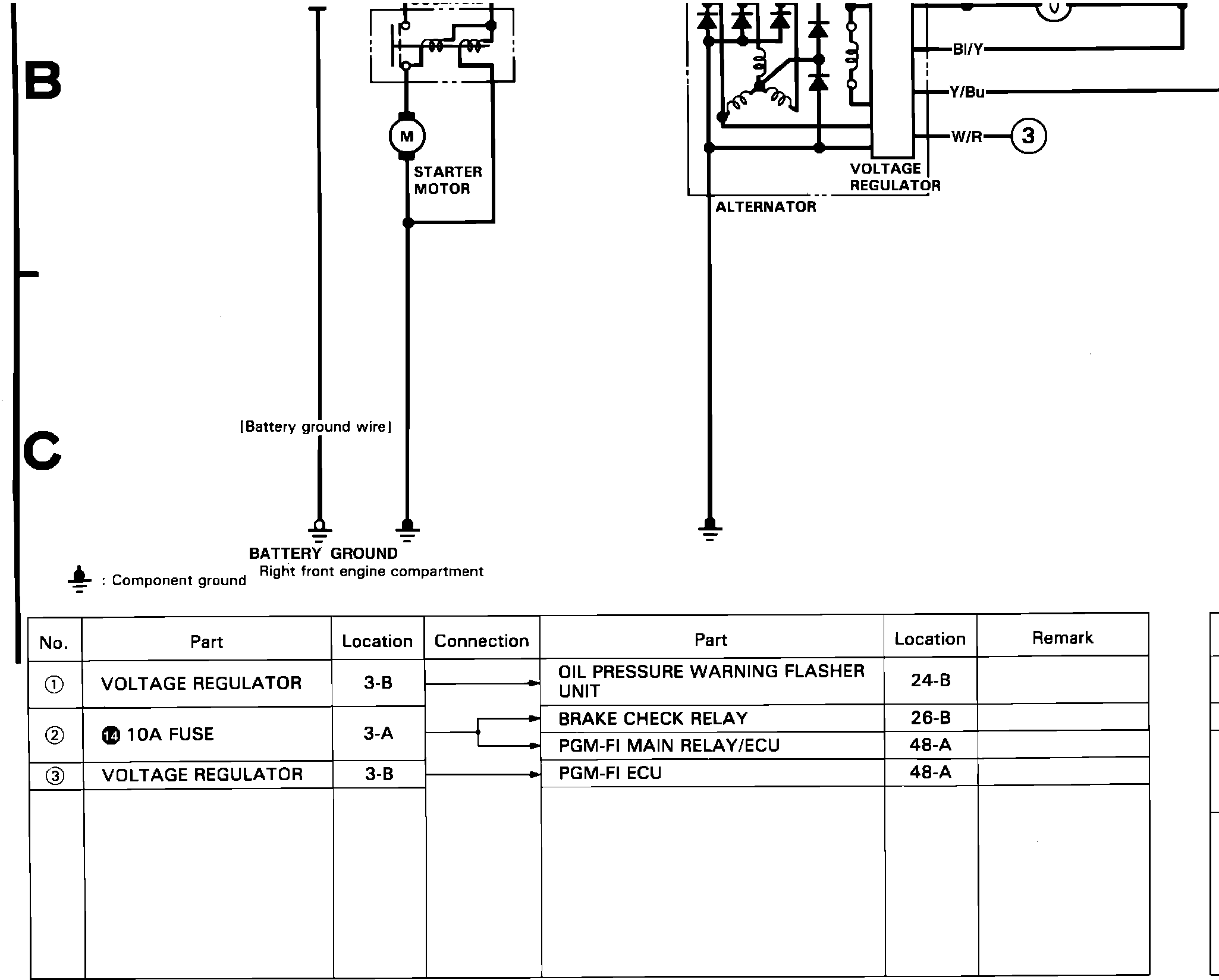

qc�1c�]c rc��cFig. 15af Complete Body & Chassis Wiring Circuit. W/Fuel Injected Engine:
