Civic Wagon 4WD L4-1488cc 1.5L SOHC (D15A2) 3V Carb
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Diagrams
>>
EGR Control System Schematic
EGR Control System Schematic

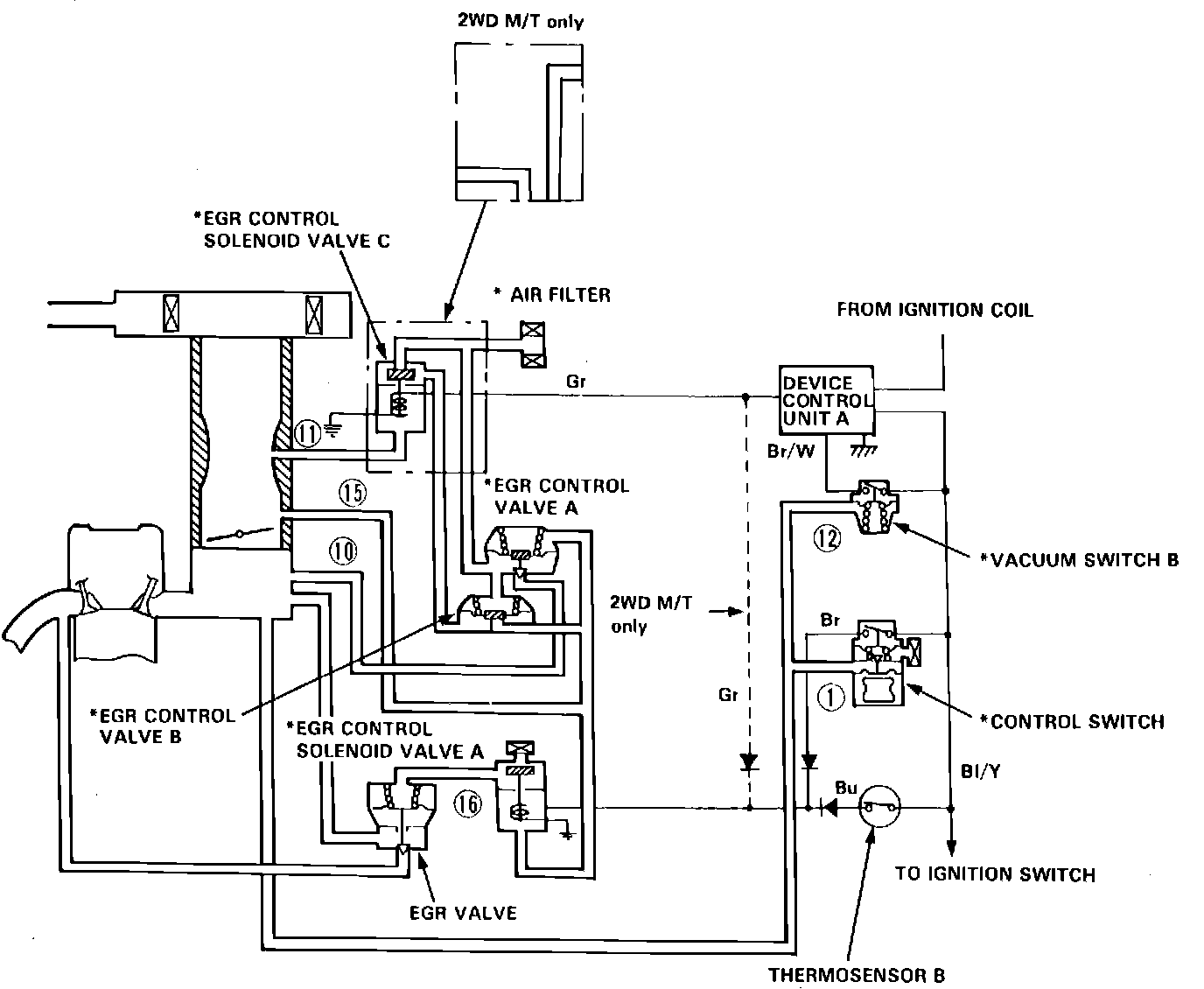

Fig. 596 EGR Control System Schematic:
