Civic Hatchback Si L4-1488cc 1.5L SOHC (D15A3) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Vacuum Routing
Vacuum Routing

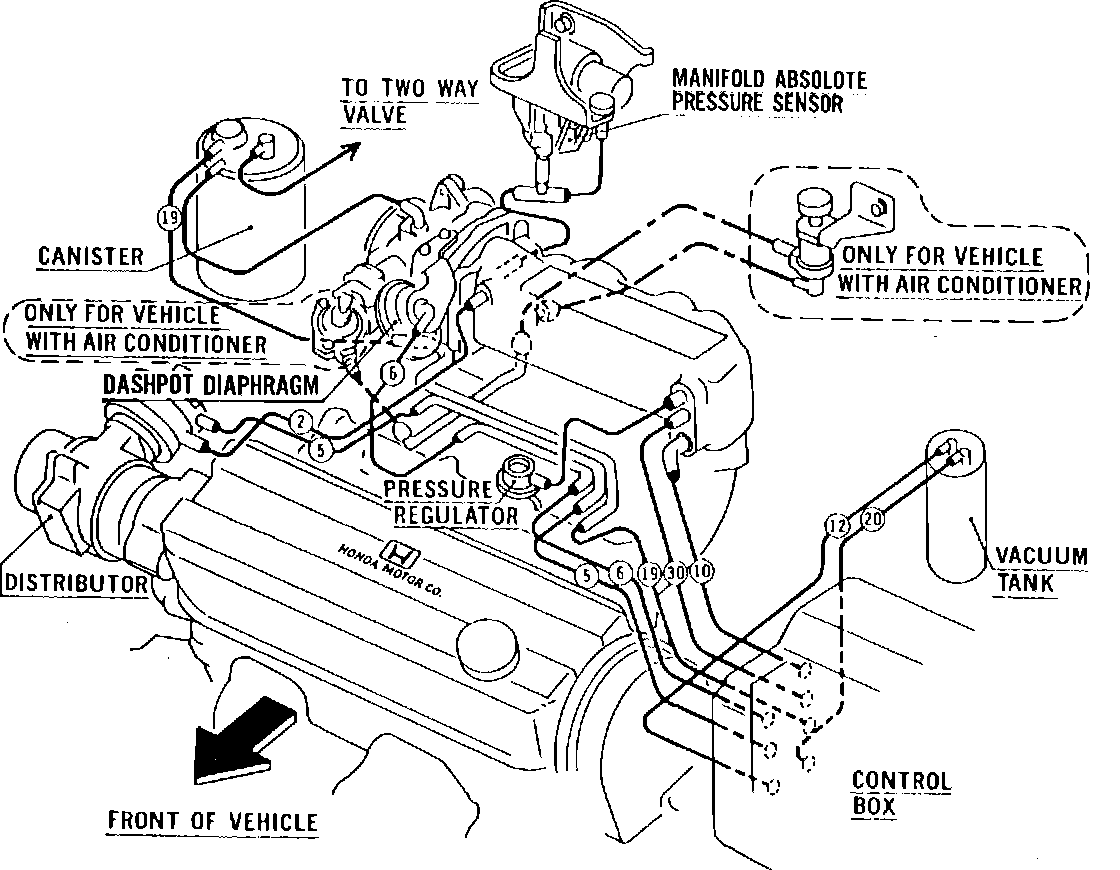

Fig. 608 Vacuum Hose Routing Diagram:
