Civic Hatchback L4-1488cc 1.5L SOHC (D15A2) 3V Carb
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Deceleration Valve
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

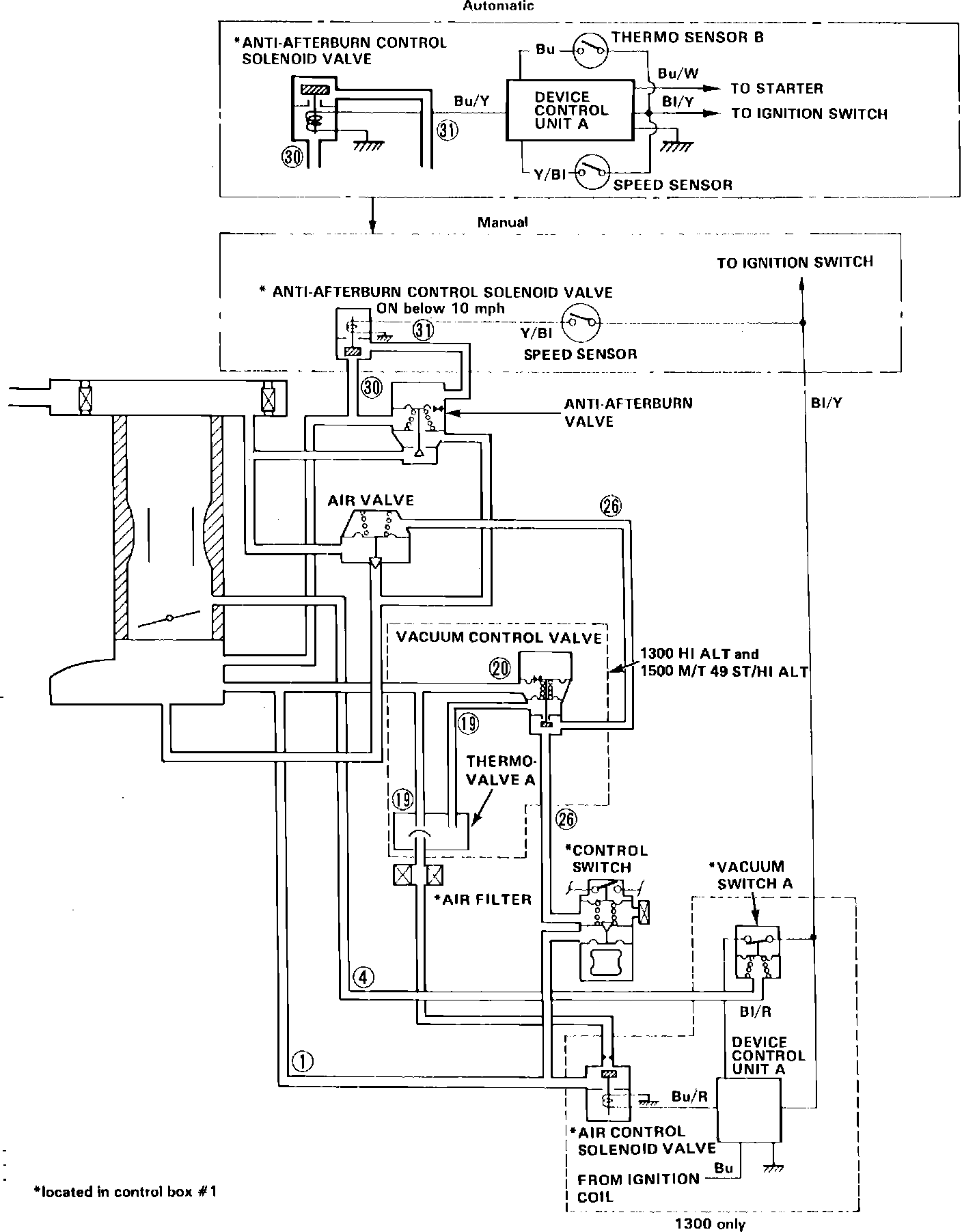

Fig. 597 Anti-Afterburn Valve:
