Back-Up Light Switch

1. Test the back-up light switch by placing gear shift lever in reverse and turning ignition switch to ON.

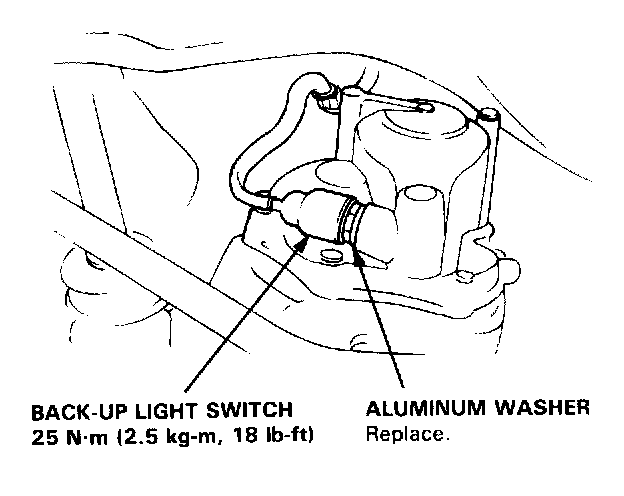

2. If back-up lights do not go on, remove the back-up light switch.

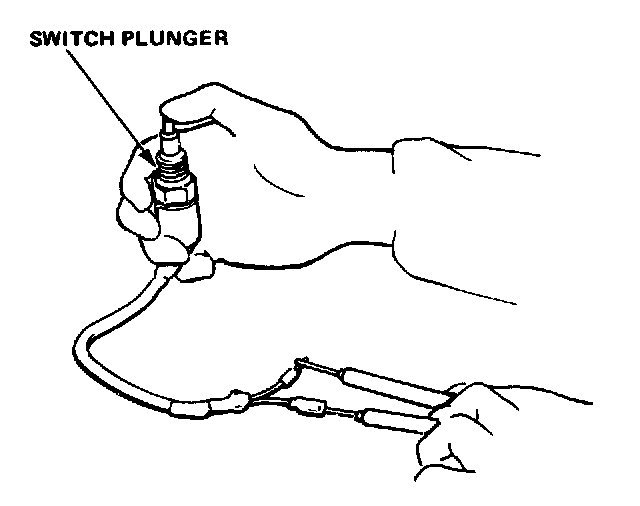

3. Using an ohmmeter, check the for switch continuity by pressing in on switch plunger. Switch should have continuity with plunger pushed in.
