EGR Control System Schematic (M/T)
EGR Control System Schematic (M/T)

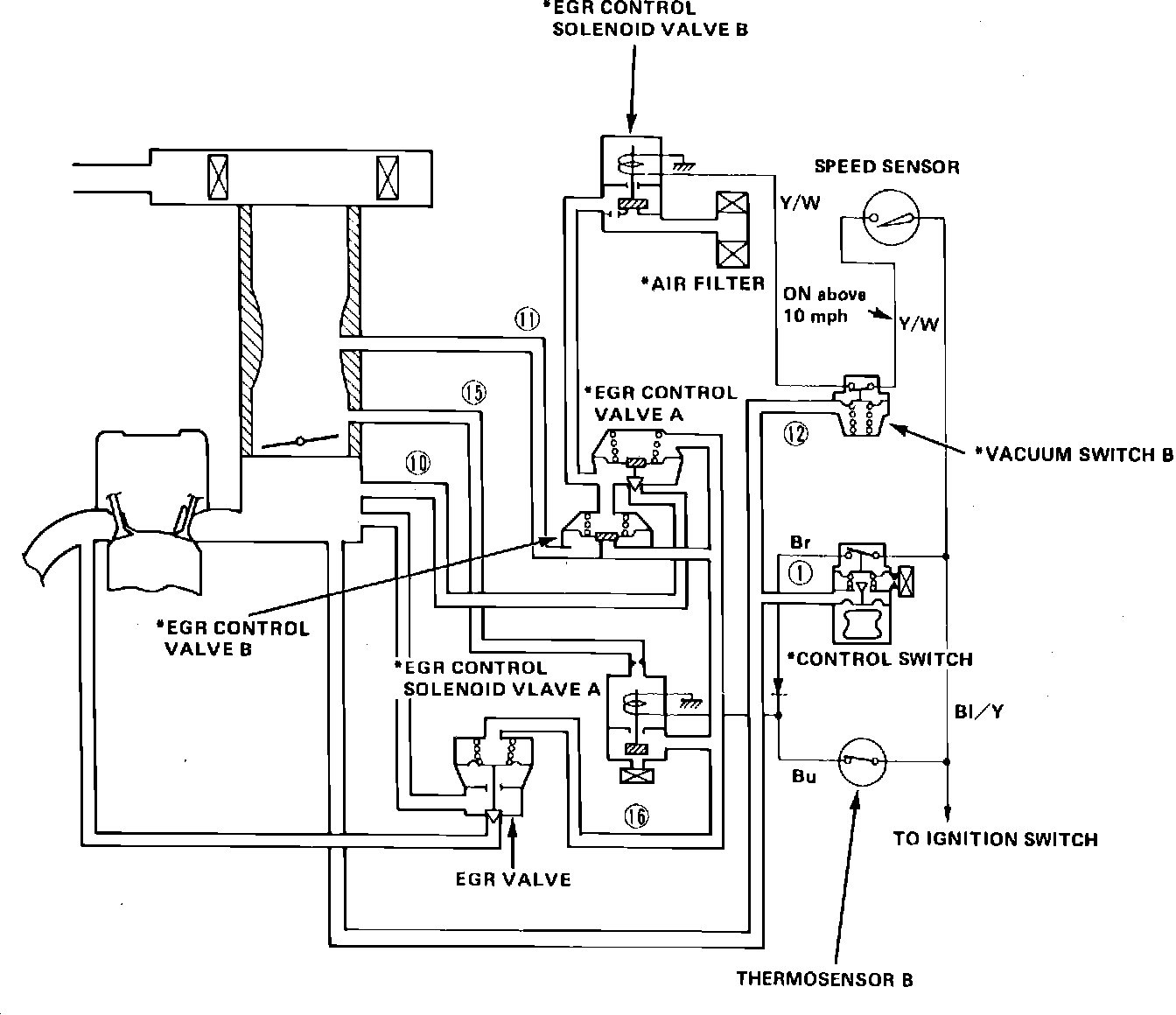

Fig. 595 EGR Control System Schematic (M/T):
