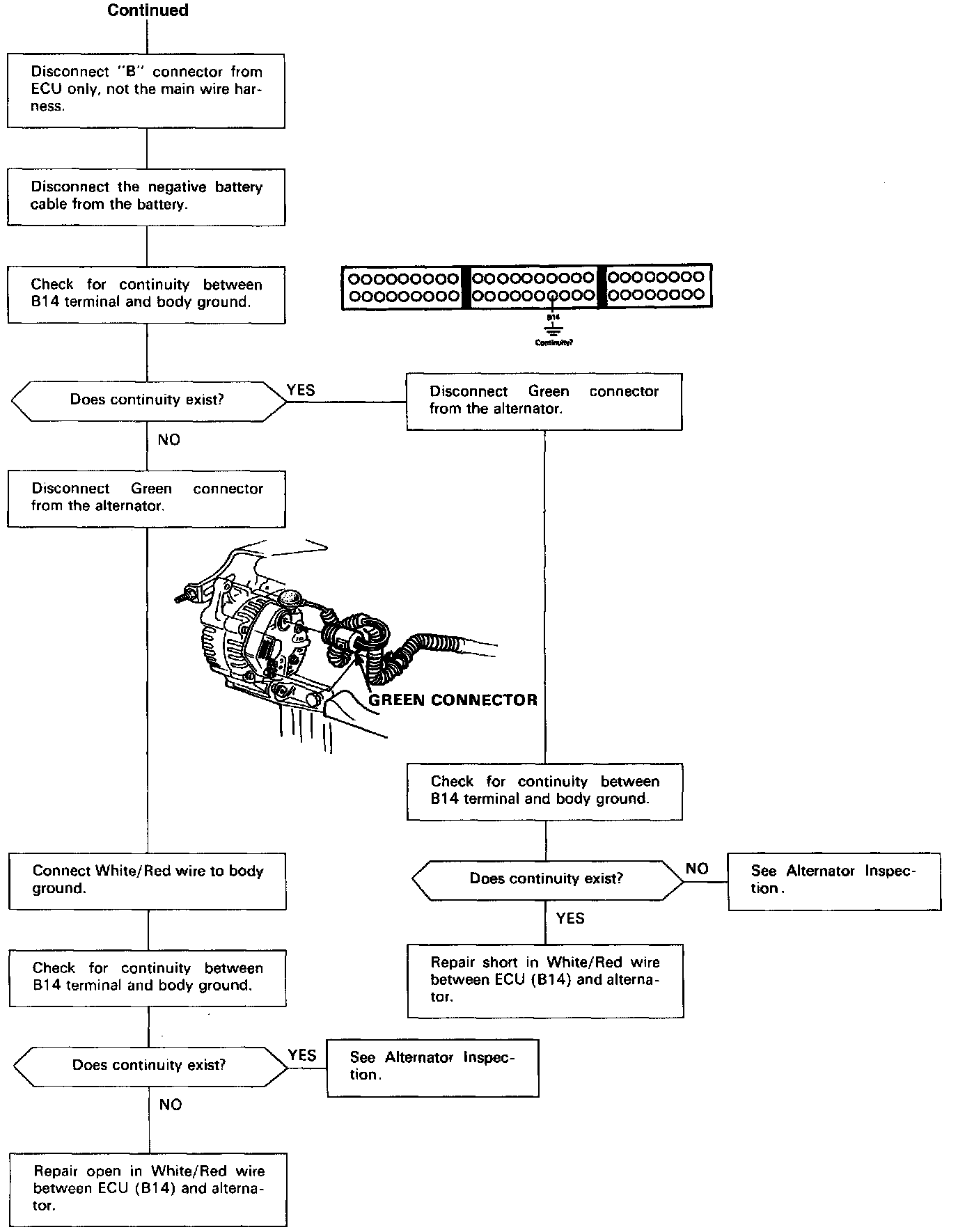

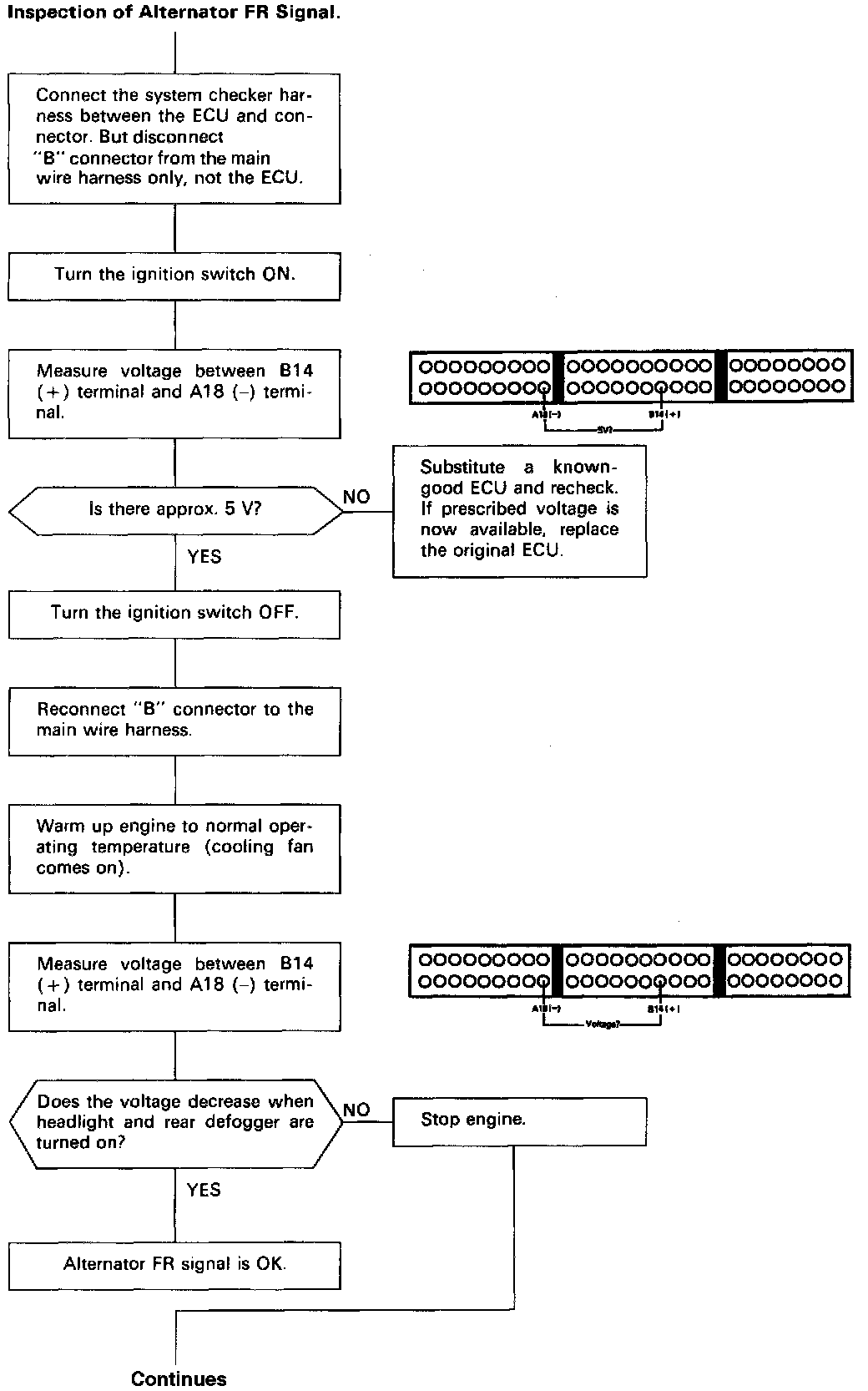

Alternator (ALT) FR Signal
Alternator (ALT) FR Signal
Alternator FR Signal
This signals the
PGM-FI ECU
when the alternator is charging.
