Air Temperature Sensor ( Ambient / Intake )
>>
Testing and Inspection
Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

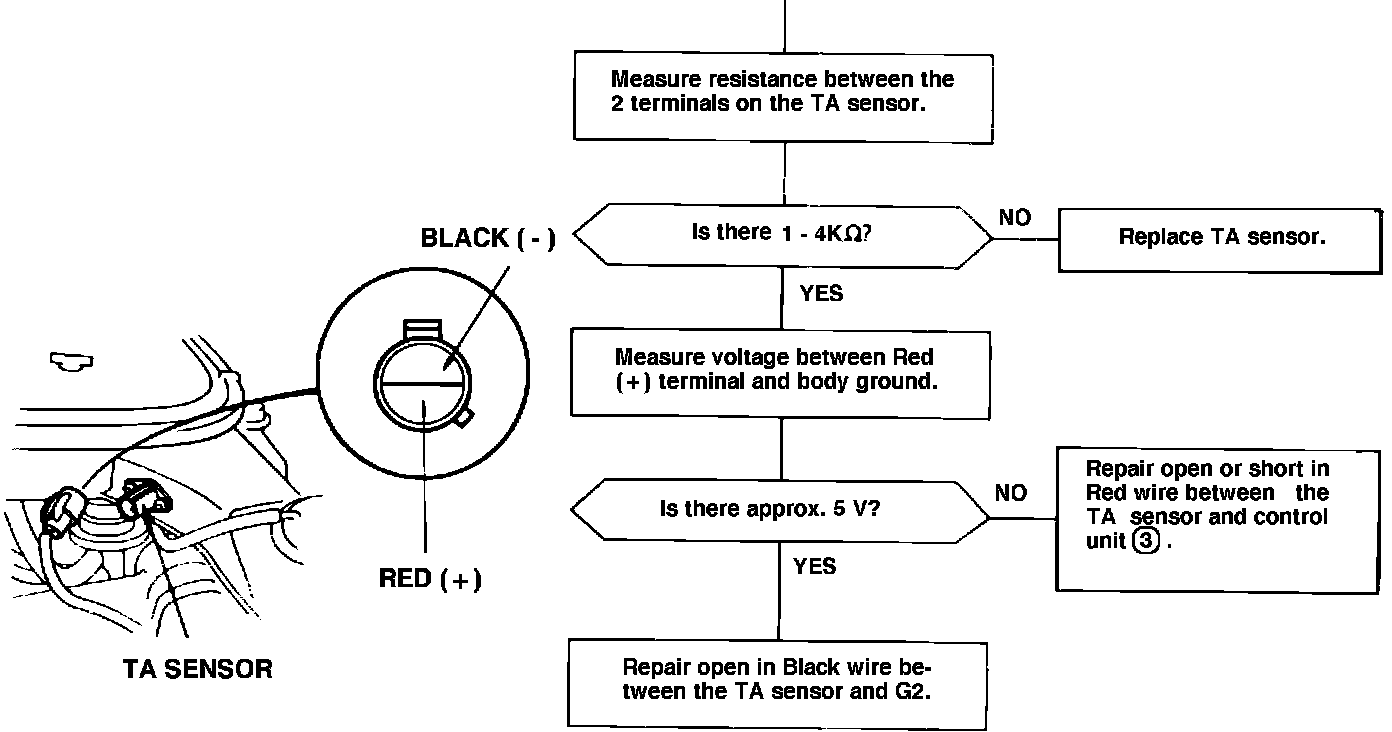

Fig. 33 Checking Intake Air Temperature Sensor.:
Fig. 33 Checking Intake Air Temperature Sensor.:
