Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation

Heating and Air Conditioning: Description and Operation

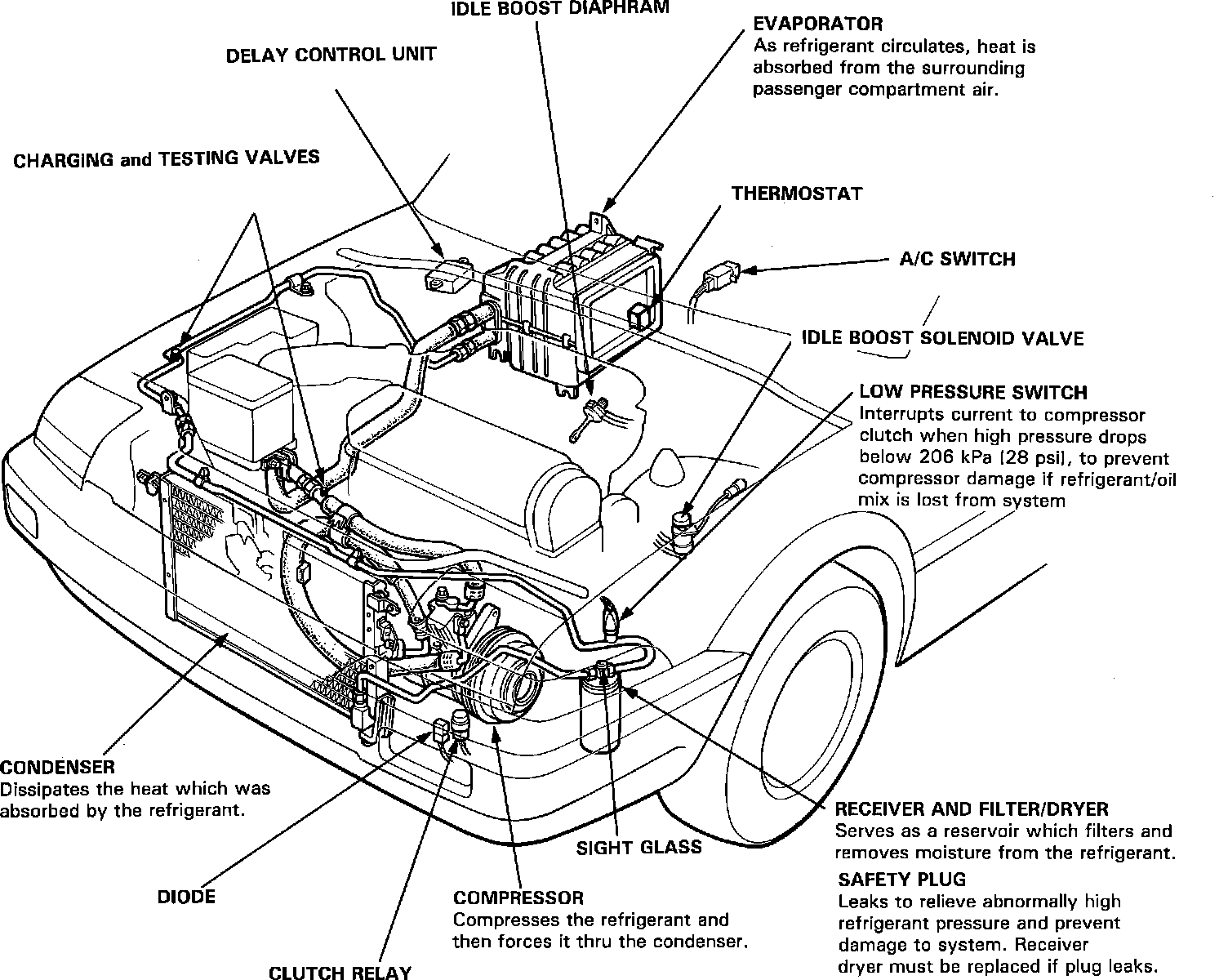

Fig. 11 System description, A/C.:
