Radiator Cooling Fan Control Module: Description and Operation

Timer Unit Terminal Arrangement:

Timer Unit Signals:

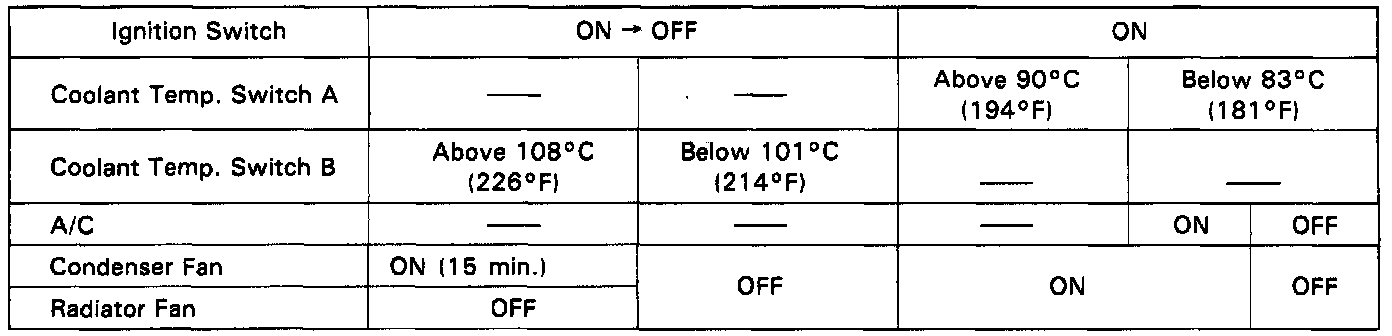

Timer Unit Operation:

FAN TIMER SYSTEM
- When the coolant temperature is above approximately 108°C (226°F), after the engine is stopped, the condenser fan goes into operation to cool the engine for a maximum of 15 minutes.
- When the temperature falls below 101°C (214°F), the fan is stopped.
- The coolant temperature switch "B" is located on the thermostat housing and the fan timer unit is located under the right front seat.
