Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

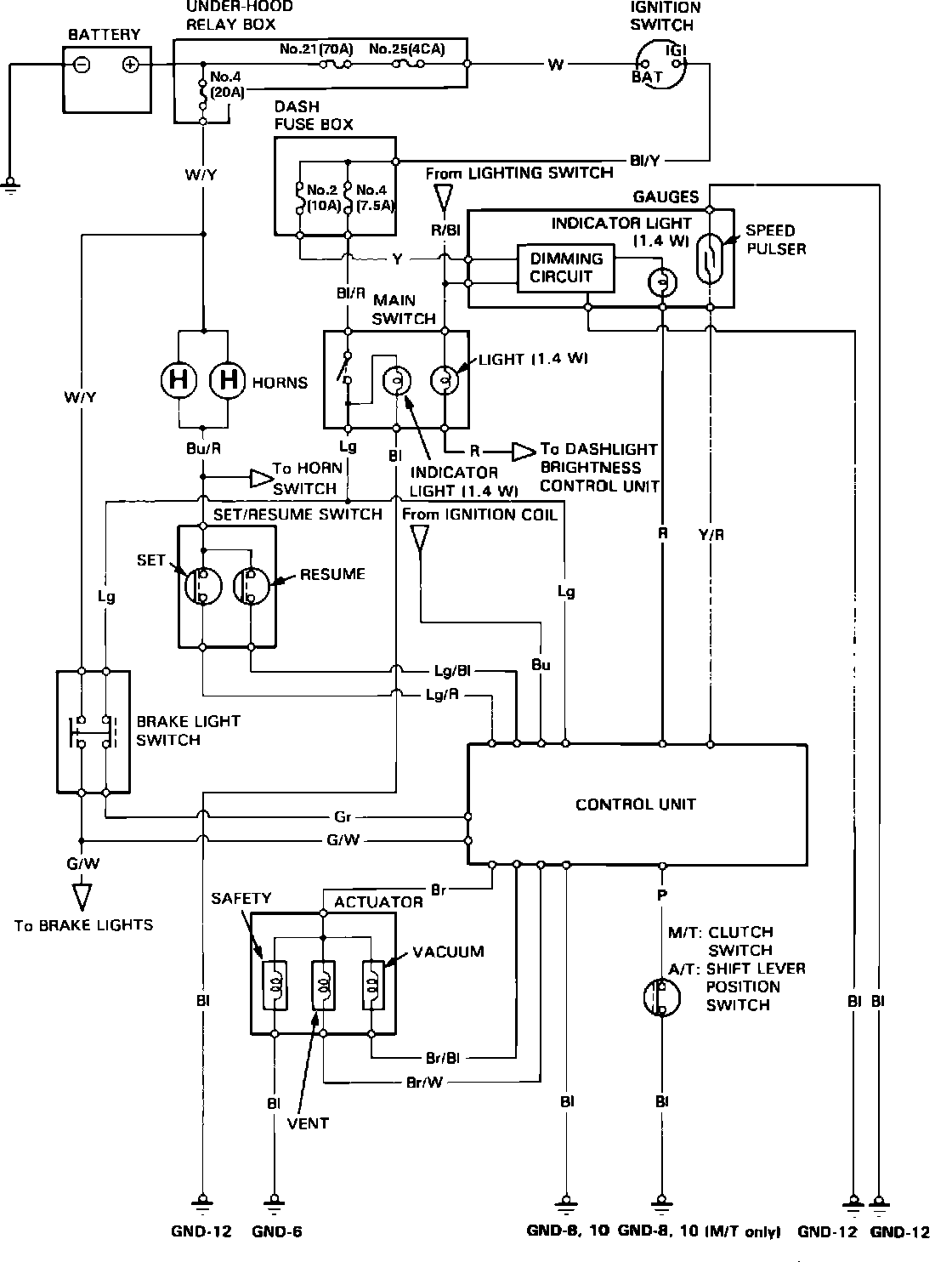

Fig. 17 Cruise Control Wiring Circuit.:
