Backing Plate: Service and Repair

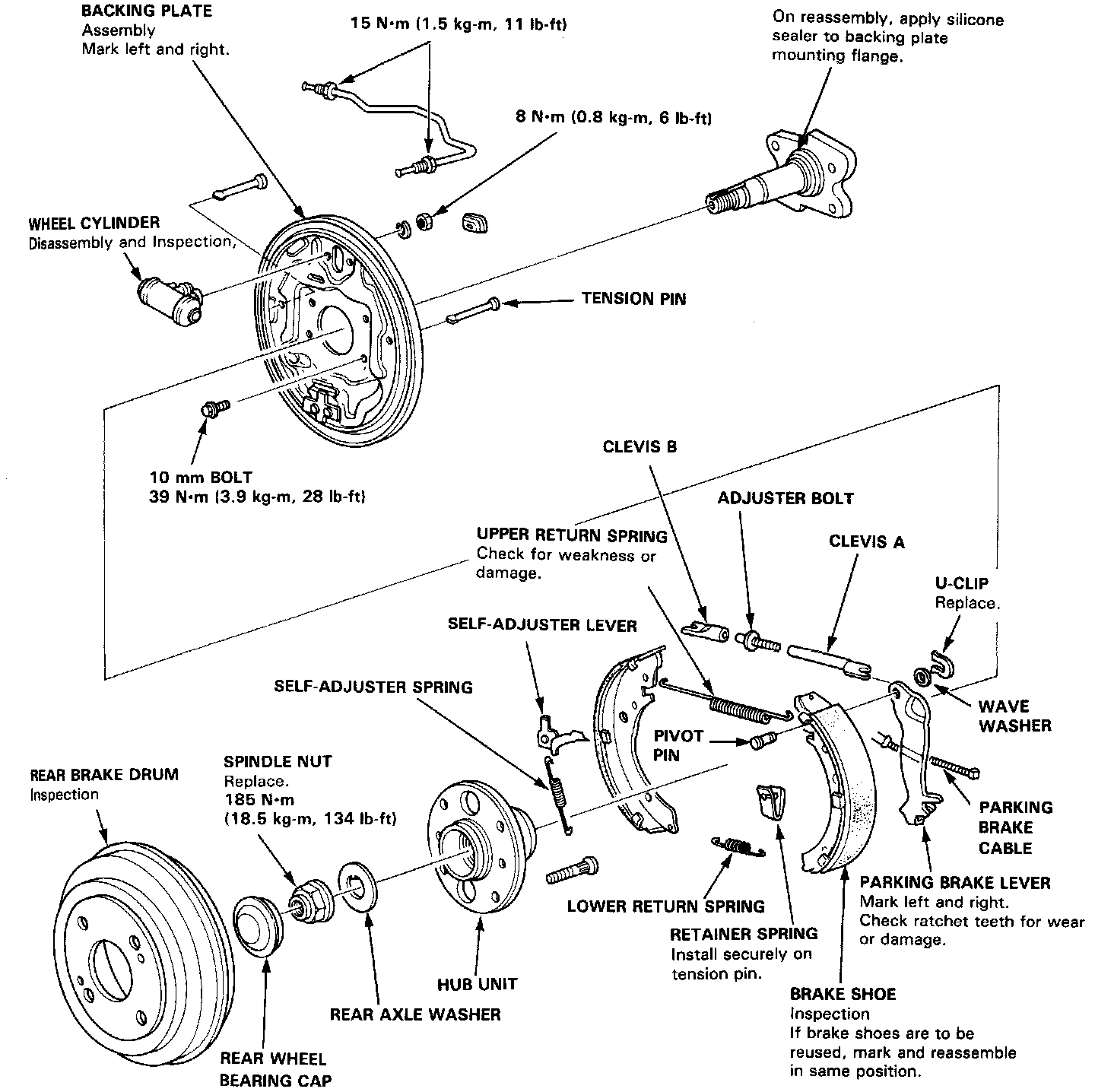

Exploded View:




Refer to image for brake backing plate removal and replacement.
