Shift Shaft Clearance

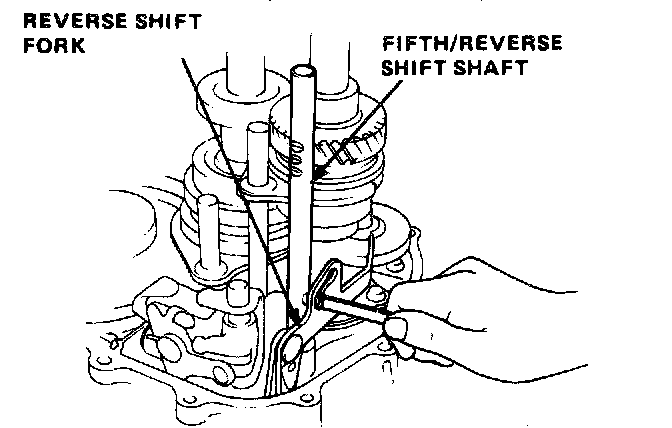

1. Check clearance between fifth/reverse shift shaft pin and reverse shift fork.

PIN-TO-FORK CLEARANCE
Standard (New): 0.05-0.35 mm (0.002-0.014 in.)
Service Limit: 0.5 mm (0.02 in.)




2. If clearance is beyond limit, measure width of slot in reverse shift fork.

Standard (New): 7.05-7.25 mm (0.278-0.285 in.)
