Gear Clearance

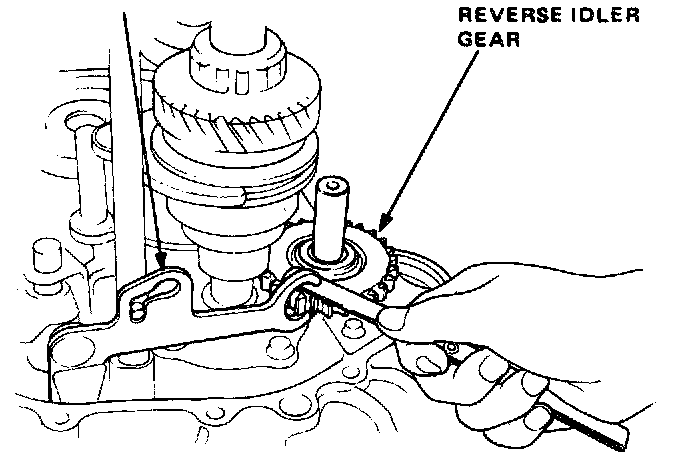

1. Check reverse idler gear-to-shift fork clearance

GEAR-TO-FORK CLEARANCE
Standard (New): 0.2-1.0 mm (0.008-0.04 in.)
Service Limit: 1.7 mm (0.07 in.)




2. Pull out the reverse idler shaft and remove gear. If gear-to fork clearance is beyond limit, measure gap between ends of shift fork fingers.

Standard (New): 11.8-12.1 mm (0.46-0.48 in.)
