Radio - Static with A/C On

Bulletin No.
89-041

Issue Date
DEC 8, 1989

Model
'86-89 ACCORD

Applicable To
ALL with A/C

File Under
ACCESSORIES

Radio Static

SYMPTOM

Static on both A/M and F/M radio bands when the air conditioner is on. The static coincides with the cycling of the condenser fan.

CORRECTIVE ACTION

Install a noise suppressor in the the condenser fan wire harness.

1. Remove the condenser fan connector from its bracket and disconnect it.

2. Connect the adapter harness (see PARTS INFORMATION) to the suppressor.

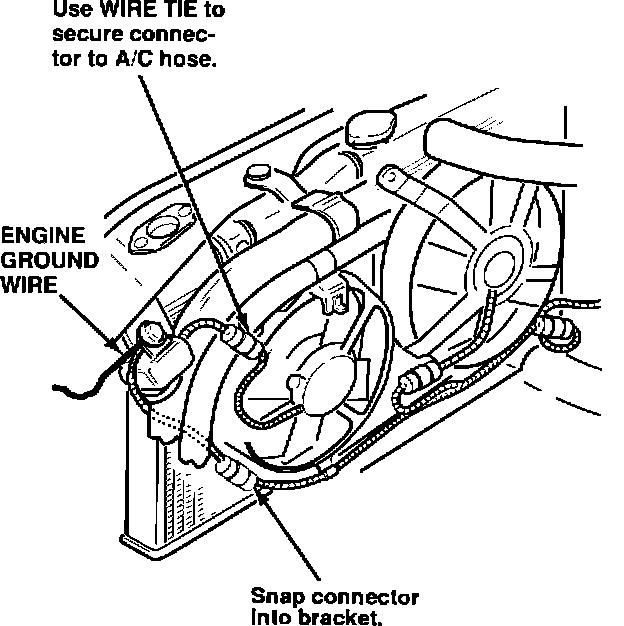

3. Remove the engine ground wire from the driver's side of the engine bulkhead.

4. Fit the noise suppressor bracket to the ground wire bracket, then reinstall the ground wire.





5. Route the long end of the adapter harness behind the A/C hose and connect it to the lower half of the condensor fan connector.

6. Connect the short end of the adapter harness to the connector half leading to the fan.

7. If necessary, carefully bend the suppressor bracket so the noise suppressor is clear of surrounding parts.

8. Snap the connector at the long end of the adapter harness back into the bracket on the fan shroud.

9. Secure the connector at the short end of the adapter harness to the A/C hose with a wire tie. Make sure that all wires are tied back away from the fan blades and other moving parts.

PARTS INFORMATION

Condenser Fan Suppressor P/N 39139-SB3-003, H/C 2903003

Adapter Harness P/N 39110-SH3-A00, H/C 2902989

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out-of-warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation Number:
010045

Flat rate time:
0.3 hour

Failed part:
P/N 39100-SE0-A31
H/C 2178242

Defect code:
068

Contention code:
F99
