Power Steering Pump Pulley Replacement

P/S Pulley Removal:

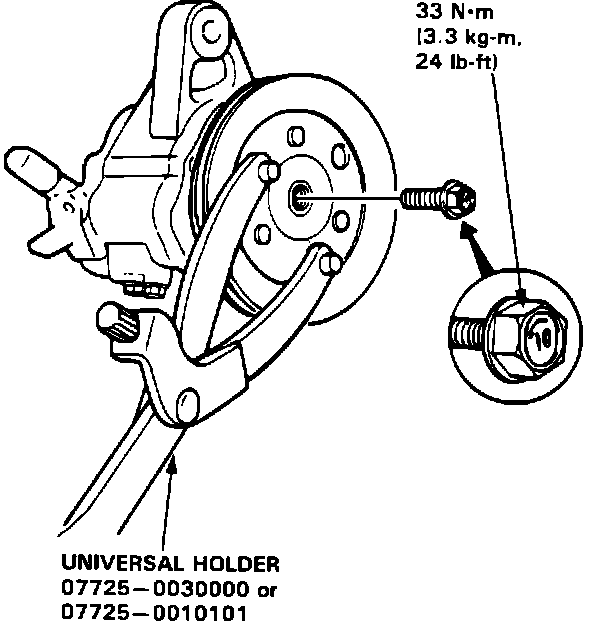

1. Hold pulley with universal holder. Remove pulley bolt, then remove pulley.

NOTE: The pulley bolt has left hand threads.

2. To install, reverse removal procedures.

3. Torque pulley bolt.

Torque Value:
24 ftlb (33 Nm)
