Home
>>
Honda
>>
1987
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Idle Up Control Valve
>>
Testing and Inspection
>>
A/T Idle Control Solenoid Valve
A/T Idle Control Solenoid Valve

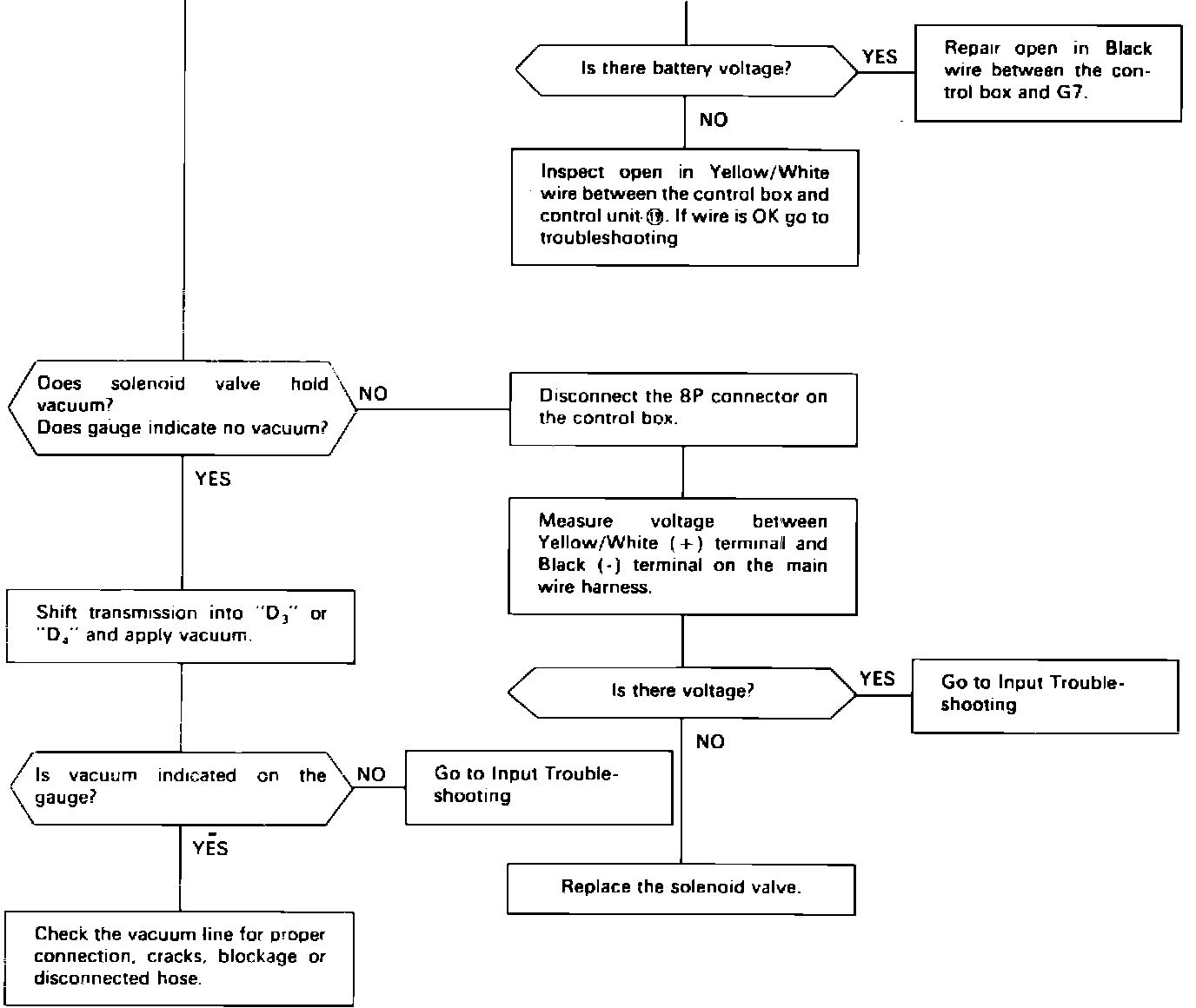

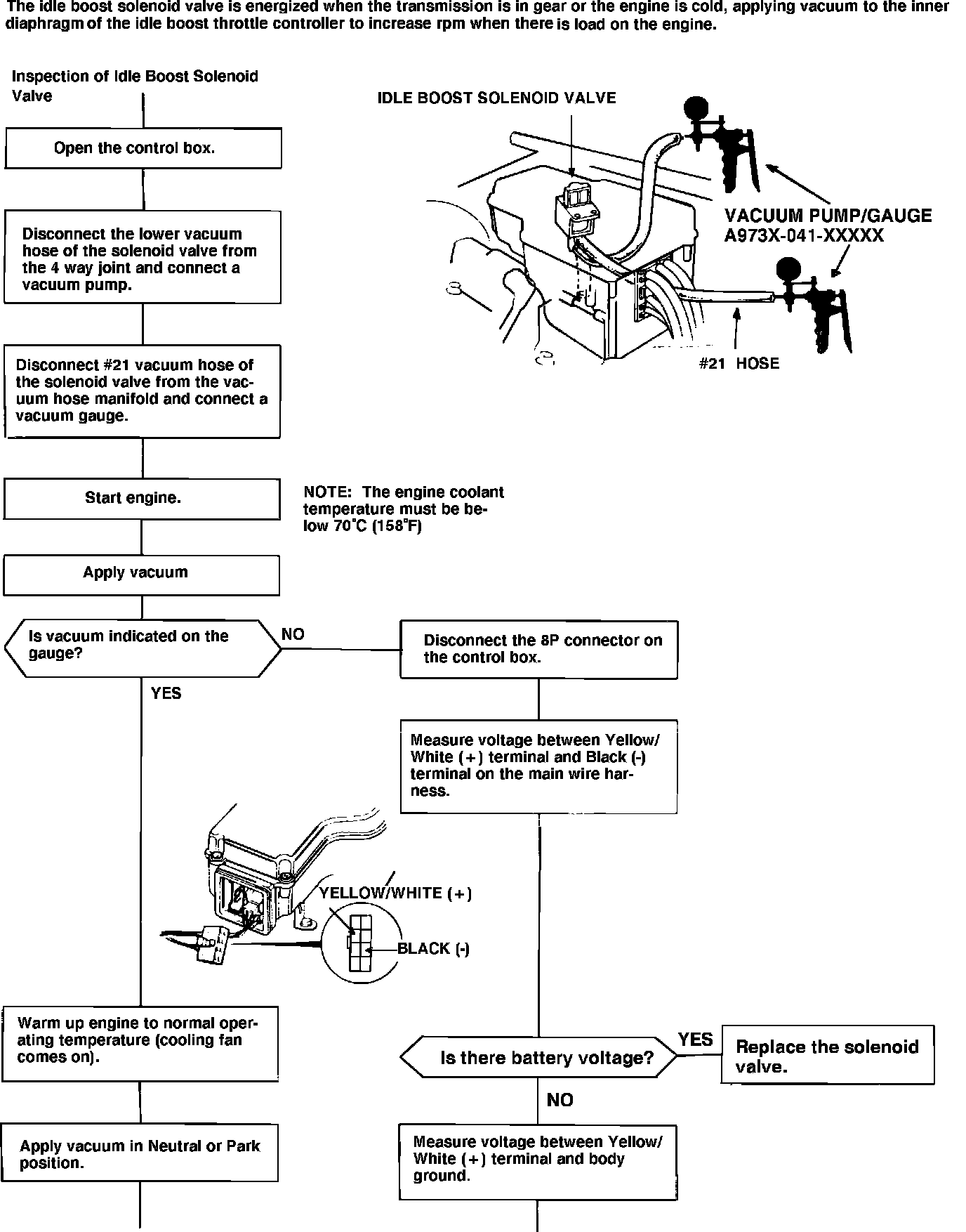

Fig. 18 Troubleshooting Idle Boost Solenoid Valve.:
Fig. 18 Troubleshooting Idle Boost Solenoid Valve.:
