SENSOR REPLACEMENT23. Pull the seat belt fully out of the retractor. Hold it in the unreeled position by installing the clamp (from the kit) across the webbing.
24. Remove the two retractor assembly mounting bolts.
25. Place the retractor assembly on a flat surface with the blue cover facing up. Use a small allen wrench to push pins A and B through the cover. Locate the pins and discard them. Do not leave the pins in the retractor they could affect its operation.
26. Lift the cover off the retractor assembly.
NOTICE
Do not use a screwdriver or other pointed object to pry the cover off. You could damage the mechanical parts underneath.

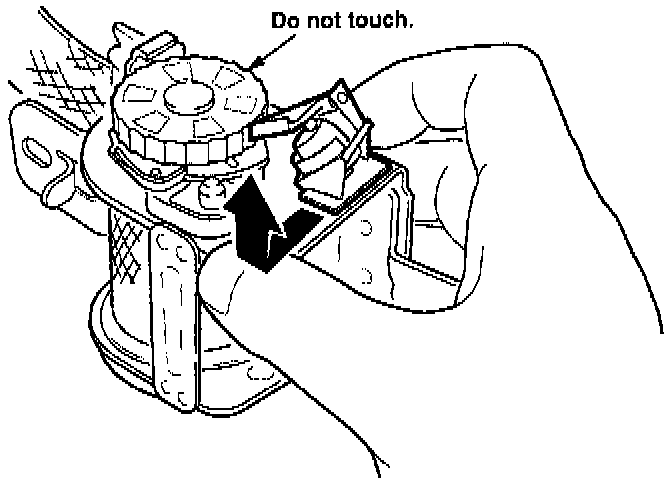

27. Slide the sensor unit to the left to unlatch it from the retractor body. Lift it straight up. Do not touch the flywheel gear.
28. Look for the R or L stamped on the retractor assembly to verify that it is right or left. Match this with the color code of the replacement sensor assembly.
NOTICE
Check the color code carefully. The retractor will not work properly if the wrong sensor is installed.

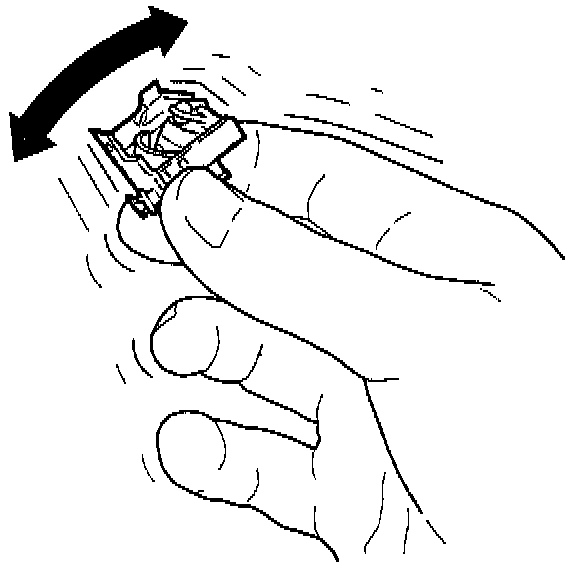

29. Shake the new sensor unit gently. Make sure the actuator and weight move freely. Do not touch the actuator or the weight.
30. Place the new sensor in the slot in the retractor assembly. Slide it to the right to lock it in place. Make sure the sensor is against the end of the slot.
