Blower Motor: Service and Repair

BLOWER UNIT REMOVAL





1. Remove the glove box.
2. Remove the blower duct.
On air conditioned models, loosen the evaporator sealing band and slide it towards the evaporator.
3. Disconnect the wire connections from the blower.
4. Remove three mounting bolts from blower.
5. Remove the blower.

BLOWER UNIT DISASSEMBLY

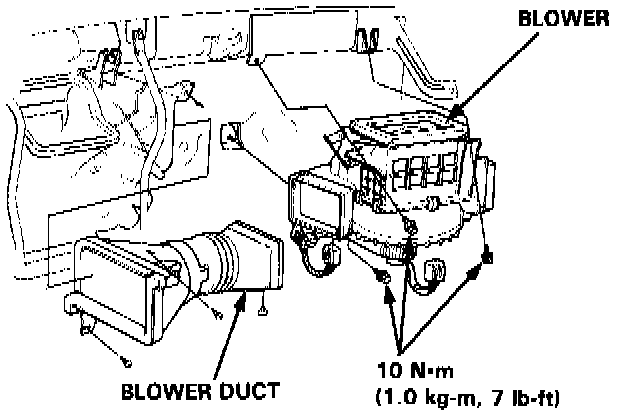

Refer to image for blower unit disassembly and component replacement, noting the following:
- Before reassembly, make sure that the air door and linkage move smoothly without binding.
- When re-attaching the actuator, make sure its positioning will not allow the air door to be pulled too far. Attach the actuator and all linkage, then apply battery voltage and watch the door movement. If necessary, loosen the holding screw and move the actuator up or down.

CONTROL ROD ADJUSTMENT
Connect the REC control motor coupler to the main wire harness. Turn the FRE/REC switch to "REC" and open the air door, then connect the control rod to the arm while holding the air door open.

BLOWER UNIT INSTALLATION
Install the blower in reverse order of removal and make sure that there is no air leakage from the mating surfaces.
