Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Rocker Arm Assembly >> Locations

Rocker Arm Assembly: Locations

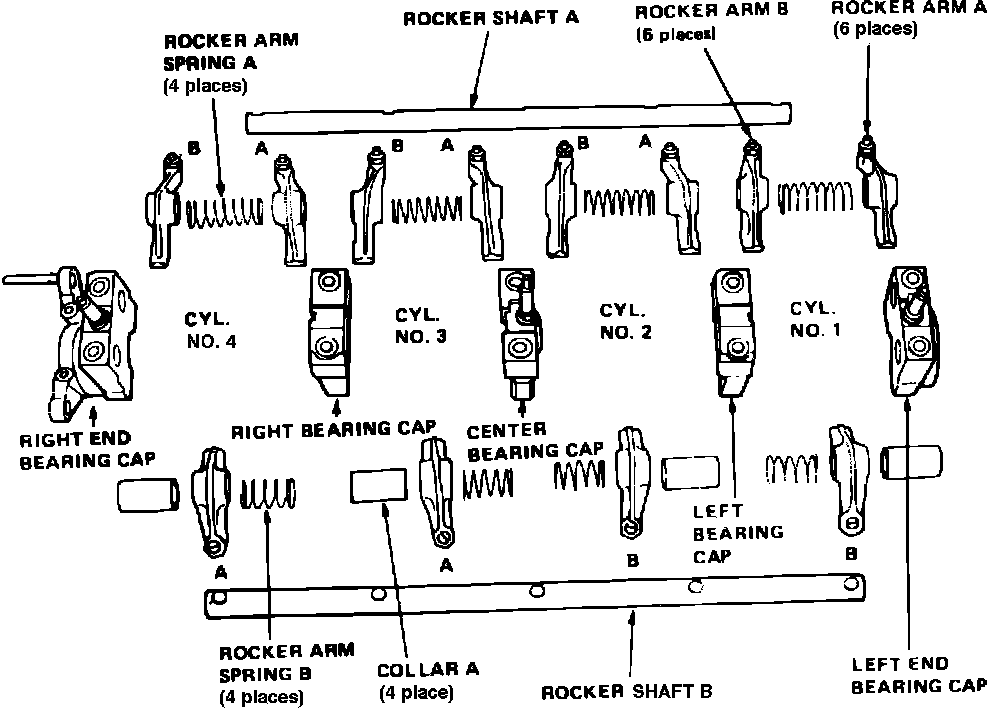

Fig. 11 Rocker arm assembly exploded view.:
