Seat Belt Systems
Seat Belt Systems

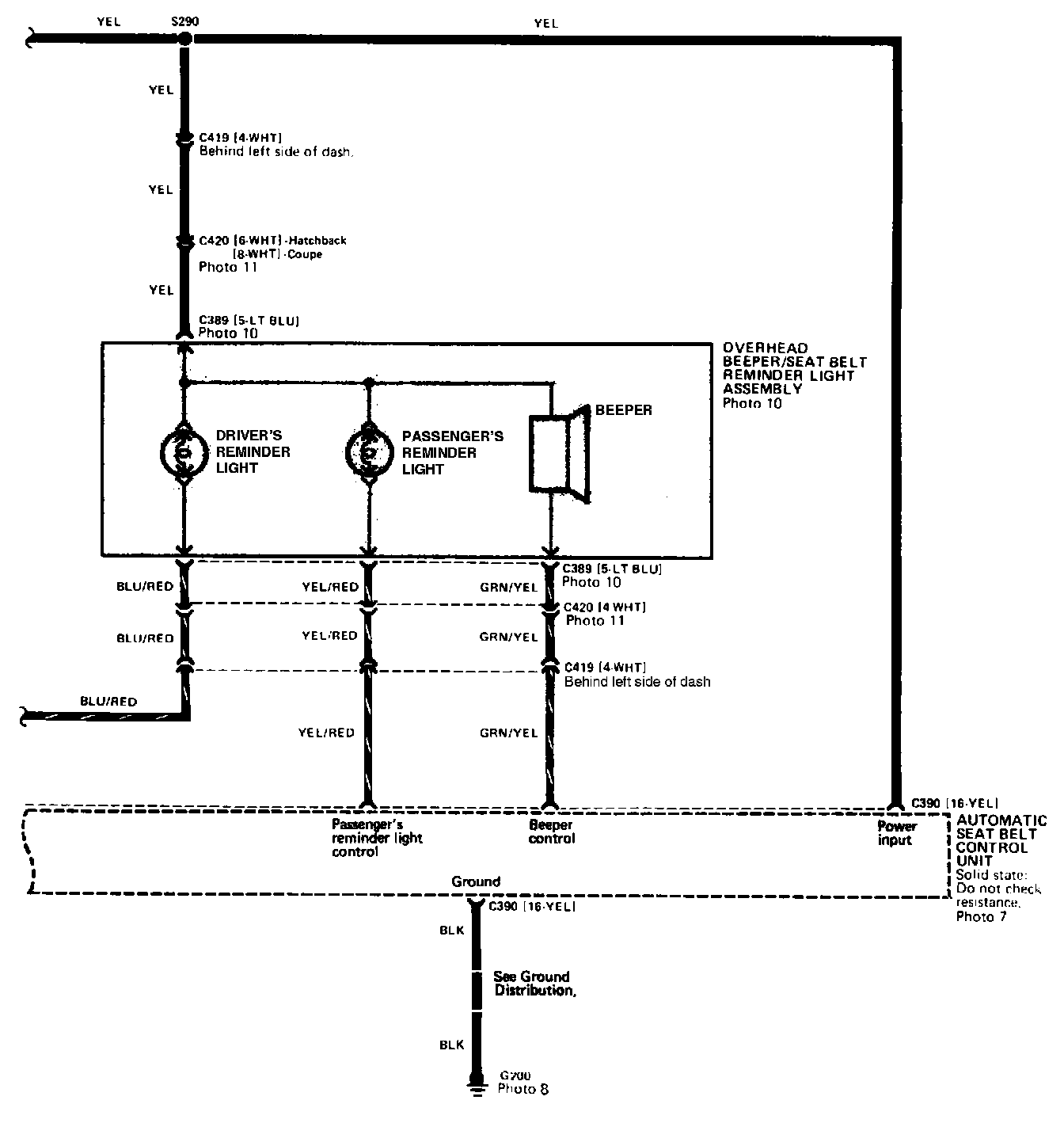

Automatic Seat Belt (Part 1 Of 4):

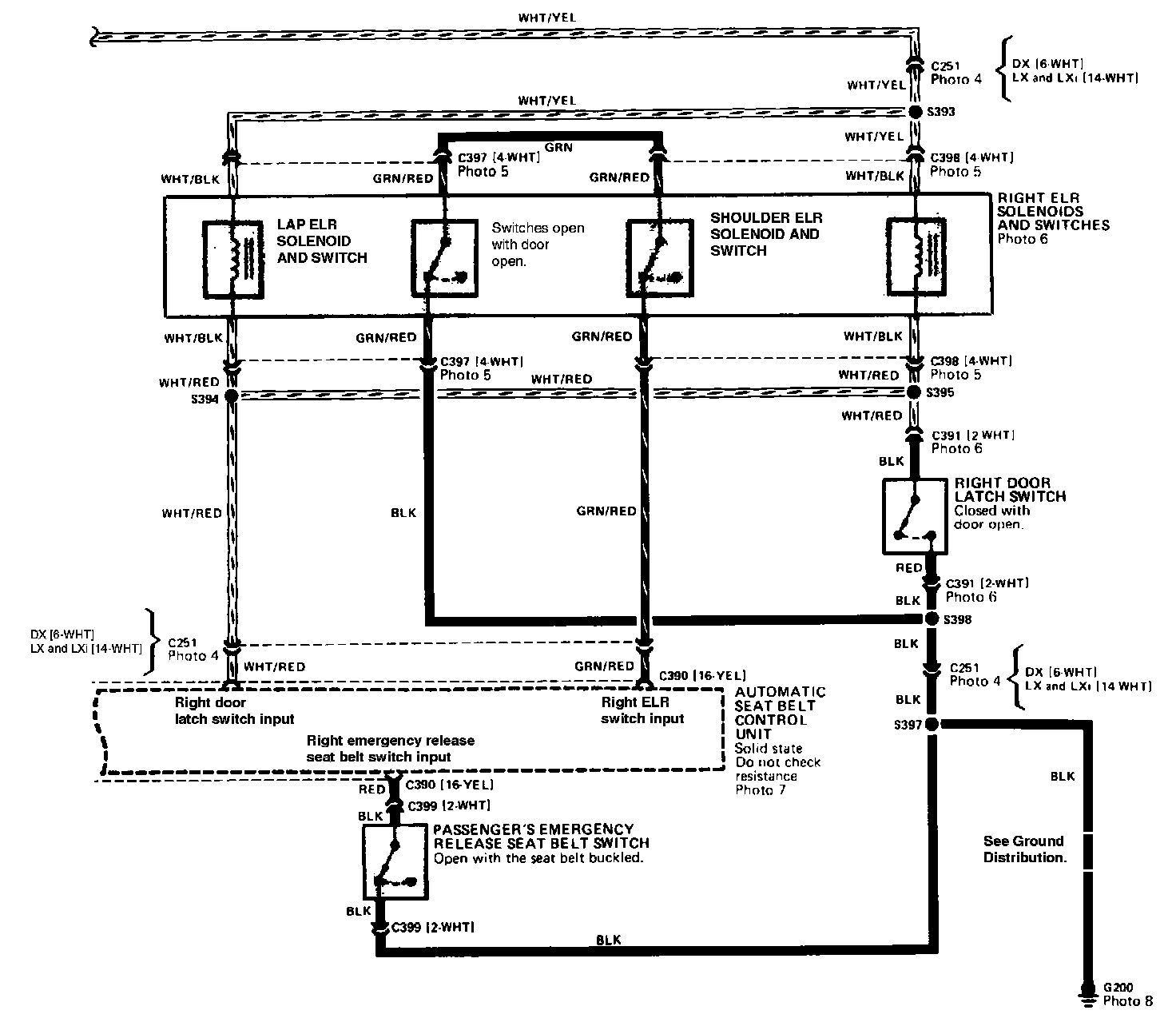

Automatic Seat Belt (Part 2 Of 4):

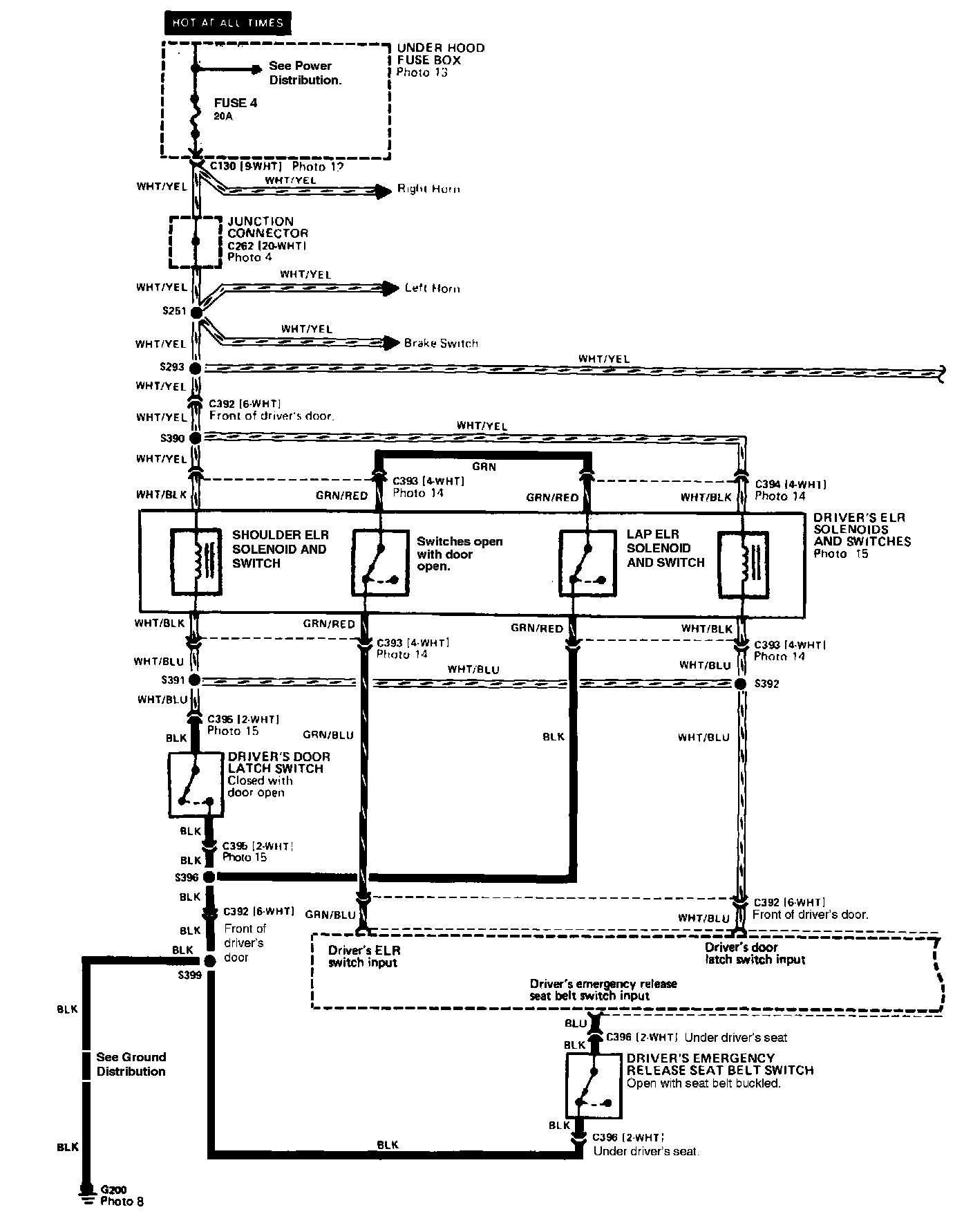

Automatic Seat Belt (Part 3 Of 4):

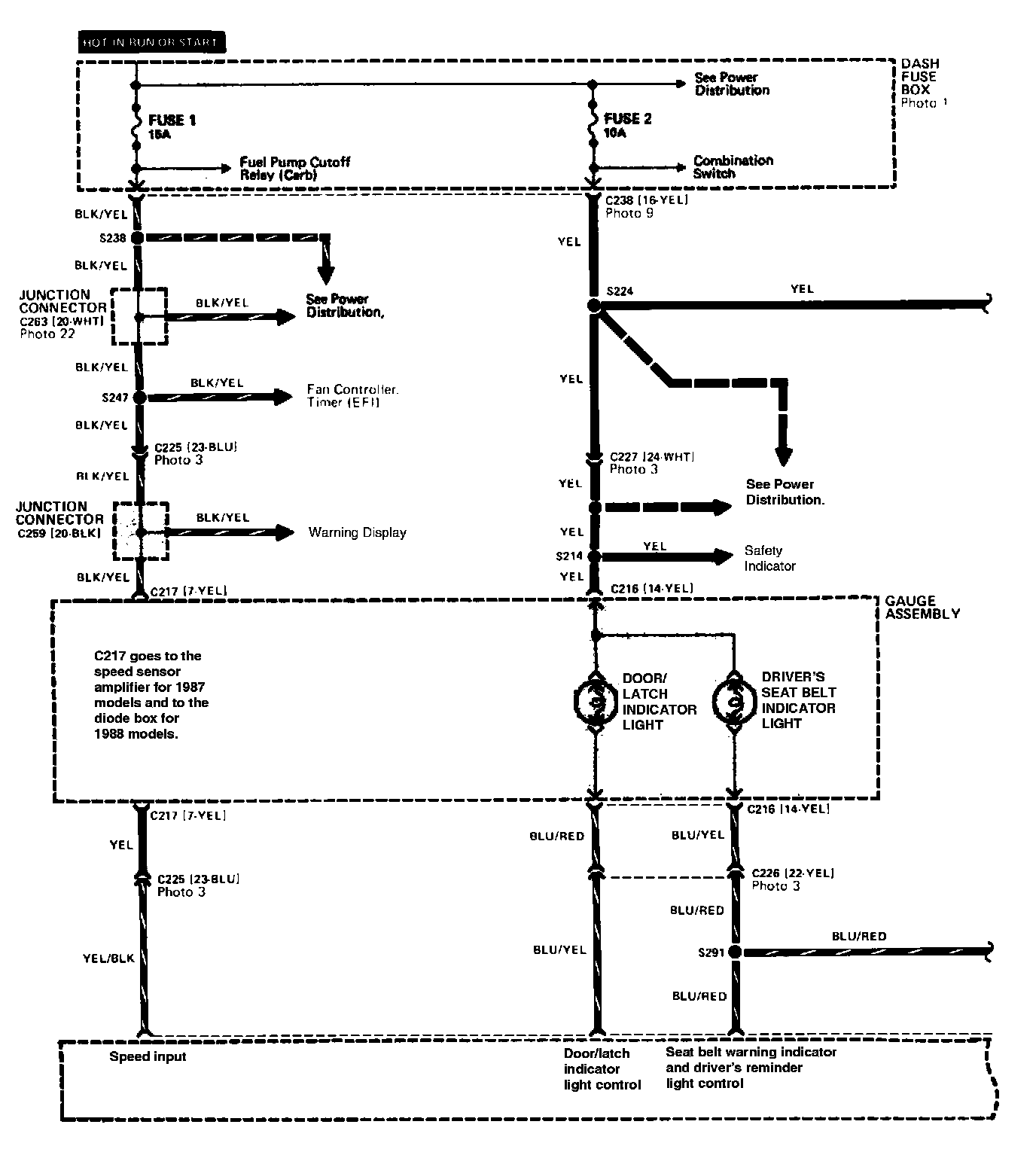

Automatic Seat Belt (Part 4 Of 4):
