Home
>>
Honda
>>
1987
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
Mirrors

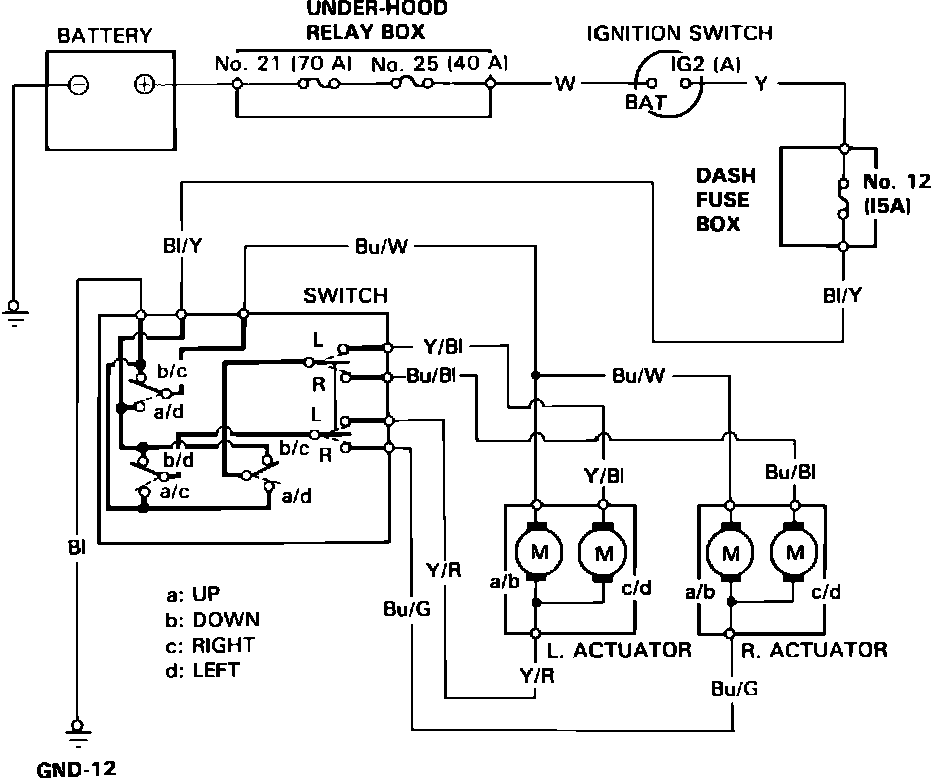

Fig. 30 Power Mirrors Wiring Circuit.:
