Low Fuel Lamp/Indicator
Low Fuel Lamp/Indicator

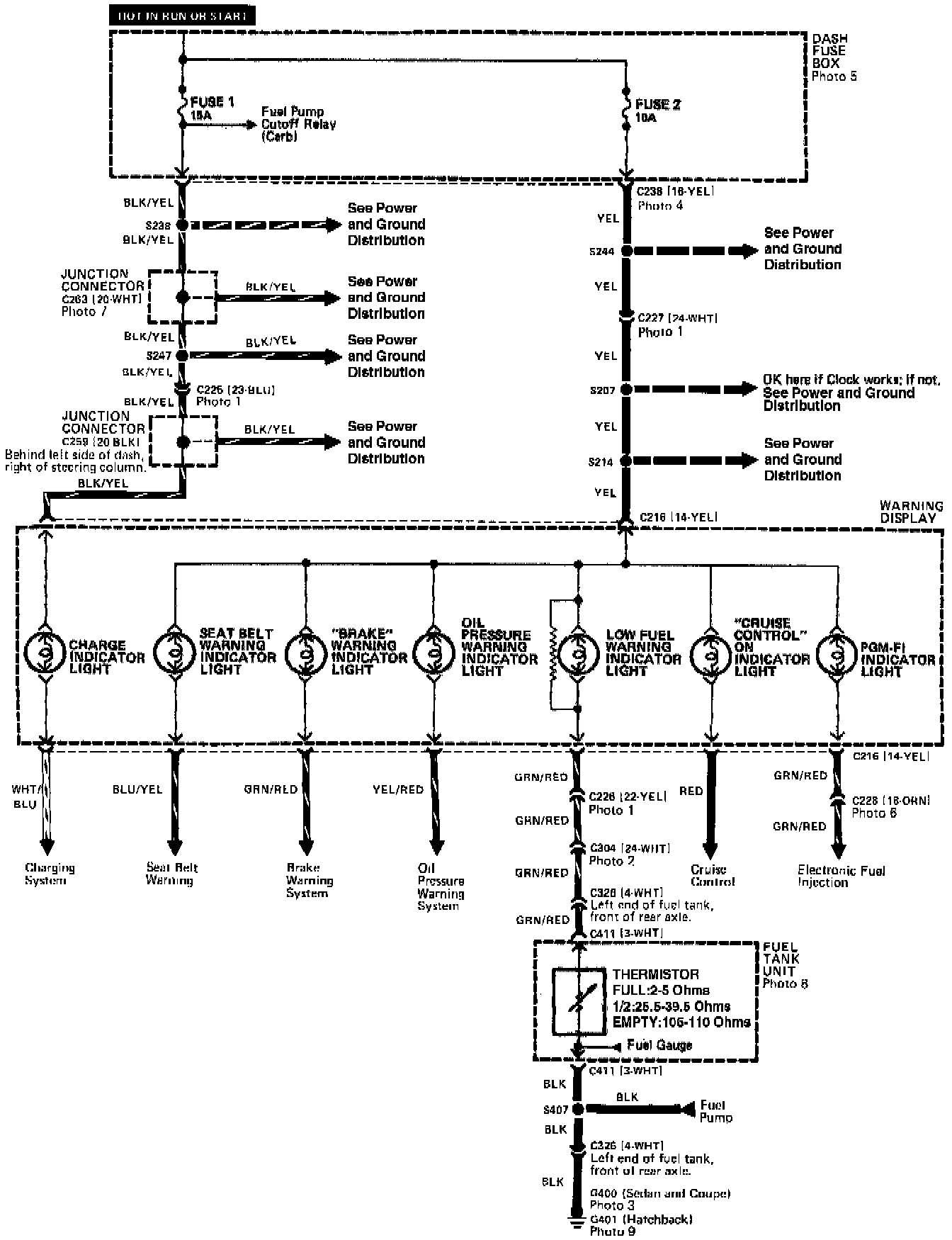

Warning Indicators And Low Fuel Warning System Wiring Diagram:
