Parking Brake Warning Switch: Testing and Inspection

Parking Brake Switch Test:

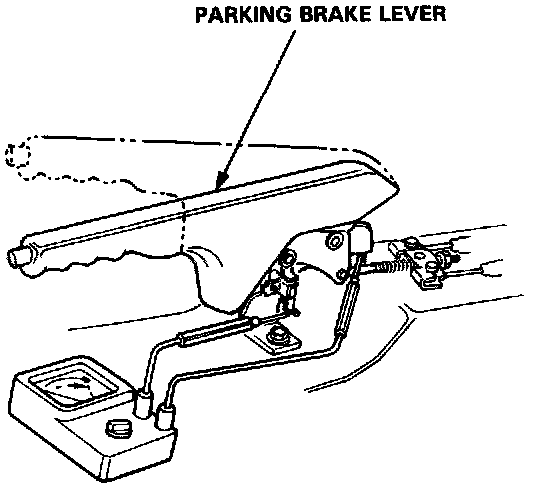

Attach one test probe of an ohmmeter to the switch, and the other to the body.

- With the brake lever up, there should be continuity.

- With the brake lever down, there should be no continuity.

- If continuity readings are incorrect, replace switch.
