Removal

For additional information see Notes, Warnings, and Hints. Fundamentals and Basics

Exploded View:

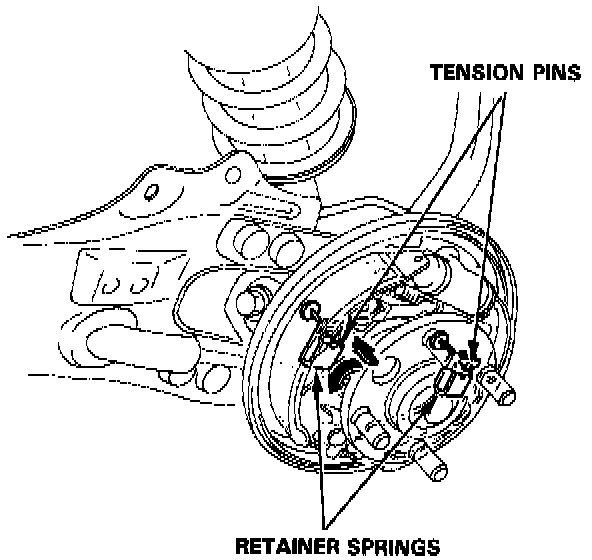

Retainer Pin Removal:

1. Remove the tension pins by pushing the retainer spring and turning them.
2. Lower the brake shoe assembly and remove the lower return spring.

NOTE: Make sure not to damage the dust cover on the wheel cylinder.

3. Remove the brake shoe assembly.
4. Disconnect the parking brake cable from the parking brake lever.

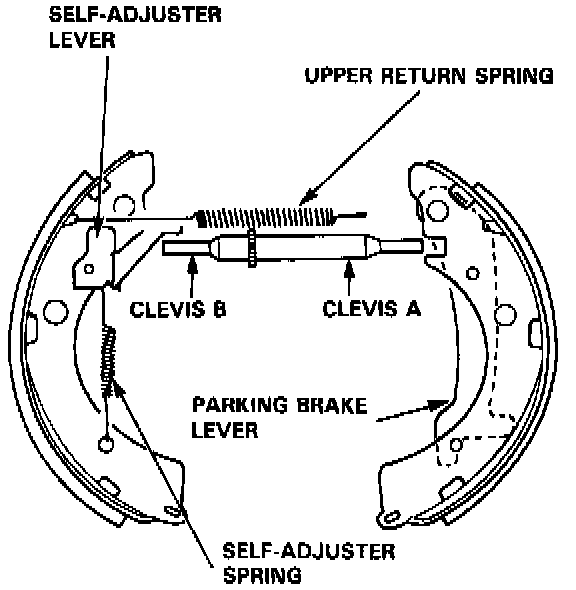

Brake Shoe Removal:

5. Remove the upper return spring, self-adjuster lever and self-adjuster spring, and separate the brake shoes.

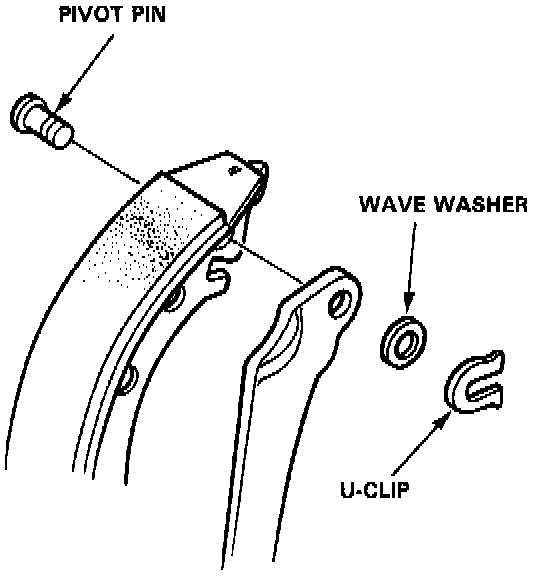

Parking Brake Lever And Pivot Pin:

6. Remove the wave washer, parking brake lever and pivot pin from the brake shoe by removing the U-clip.
