Defrost Shutter Control Rod

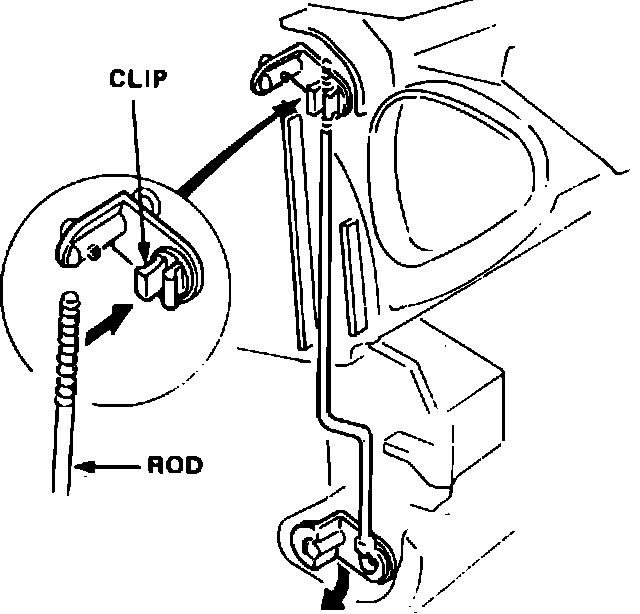

Fig. 20 Defrost shutter adjustment.:

1. Disconnect control rod from shutter, Fig. 20, then apply vacuum to HEAT/DEF door actuator to place door in defrost position.
2. Fully open defrost shutter, then connect control rod to door lever.
