Home
>>
Honda
>>
1986
>>
Prelude L4-1955cc 2000
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
Computers and Control Systems

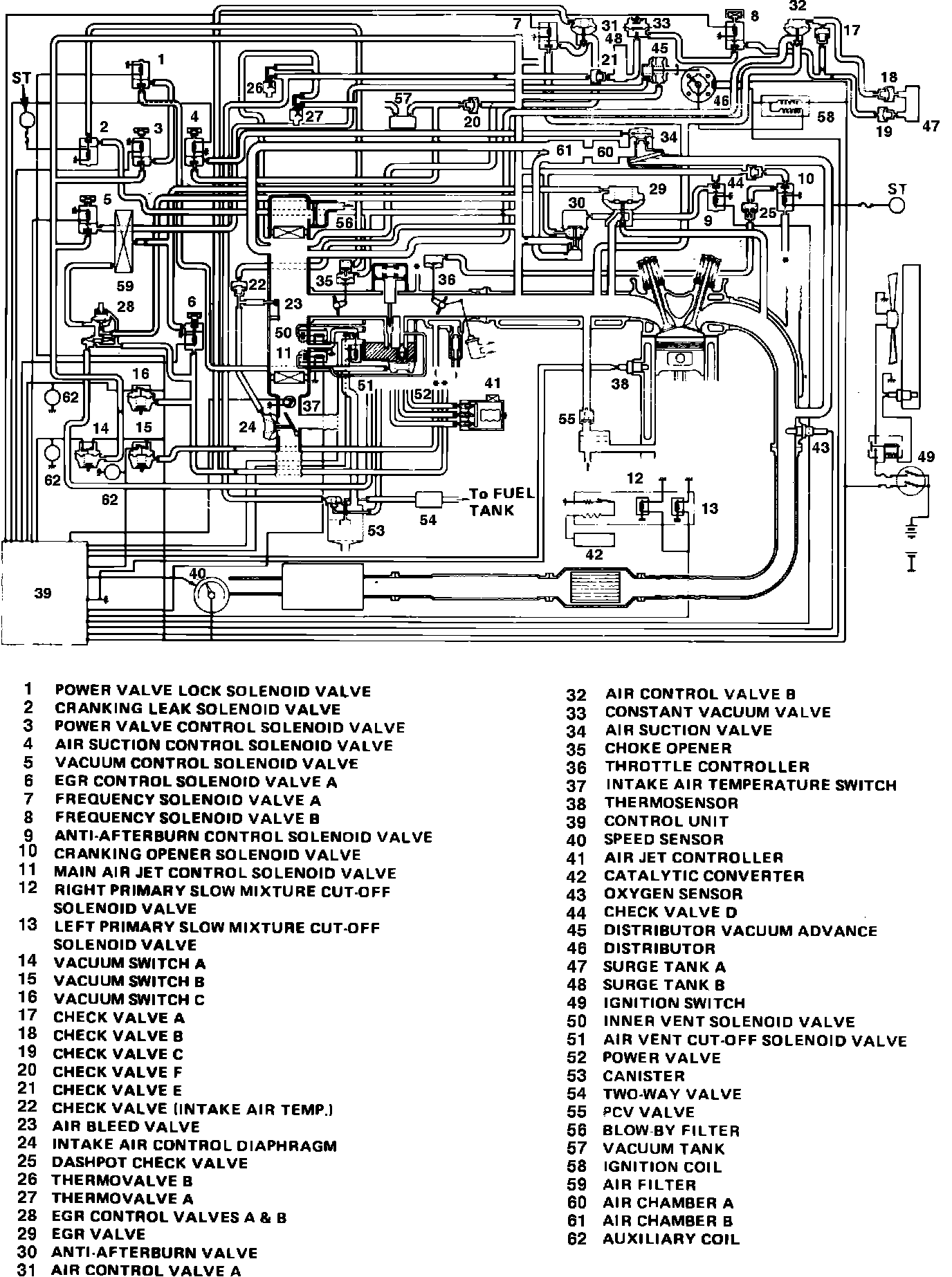

Fig. 6 Emission control vacuum hose routing.:
