Honda
>>
1986
>>
Prelude L4-1955cc 2000
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
Mirrors

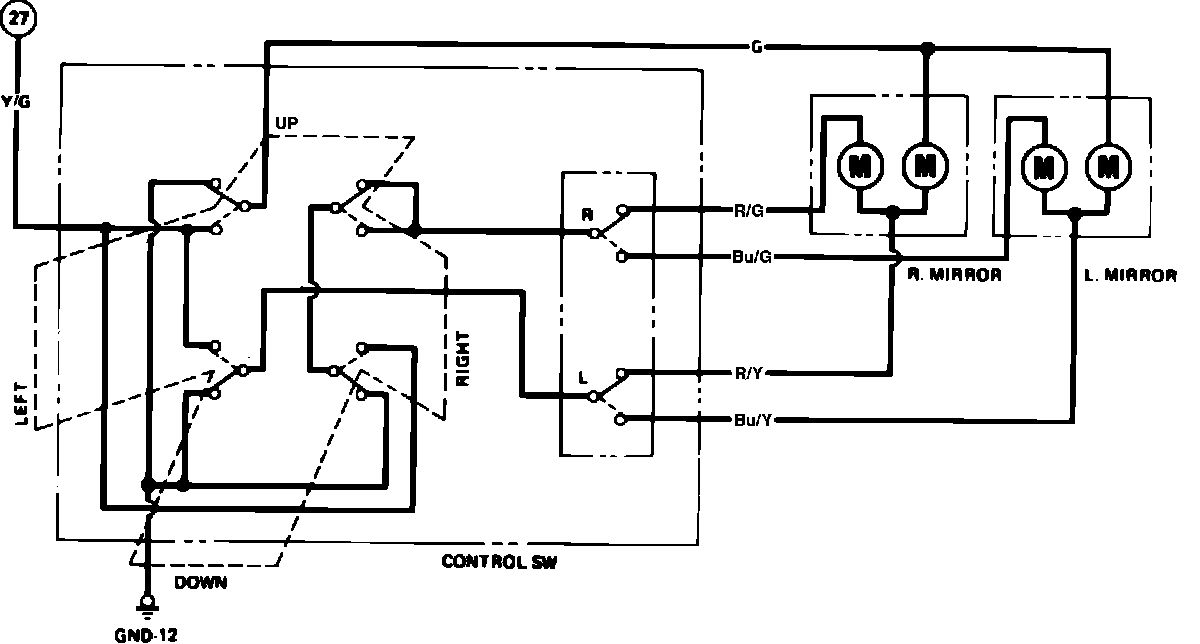

Fig. 102 Power Rear View Mirror Wiring Circuit. 1986 Prelude w/fuel injected engine:
