Curiosii for ever!: Car repair manuals for everyone.
Home >> Honda >> 1986 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> Engine Management

Engine Management

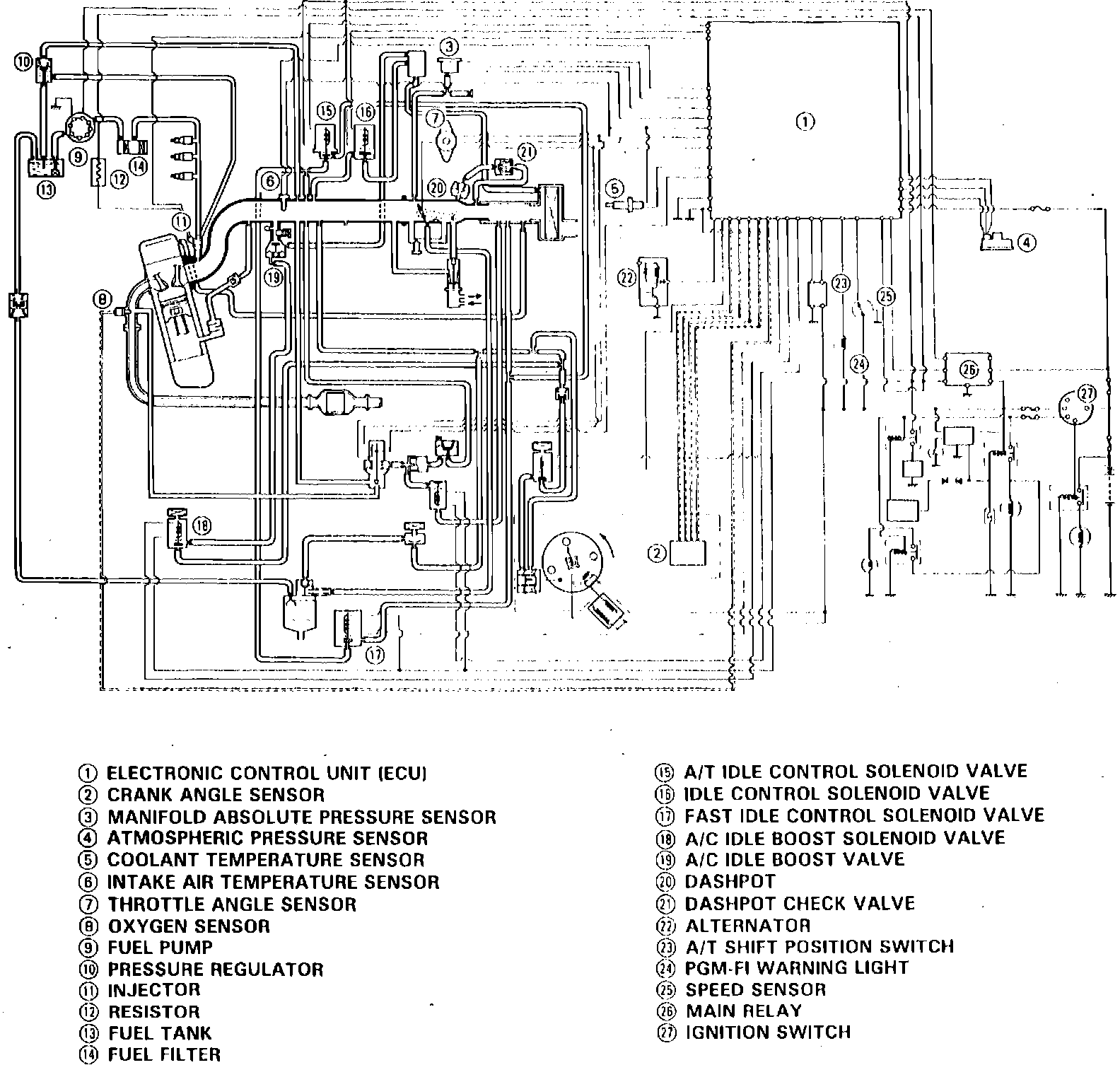

Fig. 242 Vacuum And Electrical Connections:
